HEALTH RIDER - H90T

Repair Parts for HEALTH RIDER H90T HRTL80515C3

Brand: HEALTH RIDER

Category: Residential Treadmills

Type: Folding Treadmill

Model Name: H90T

Exploded Diagrams

Other Languages Available

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry [email protected]

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
INCLINE MTR SPACER 102521 114078 32 INCLINE MTR SPACER Yes Model Compatibility List $1.84 / Each

2,3,4,5,6,10,1
RELEASABLE WIRE TIE 100064 116926 # RELEASABLE WIRE TIE No Model Compatibility List $0.25 / Each

1,4,2
3/8 100031 119425 33 3/8" HEX JAM NUT Yes Model Compatibility List $0.55 / Each

2
SPRING NUT 100424 121576 103 SPRING NUT Yes Model Compatibility List $0.34 / Each

2
3/16-7/32 100190 128457 # 3/16-7/32" ALLEN WRENCH No Model Compatibility List $18.74 / Each

1
WIRE TIE 100073 132315 99 WIRE TIE No Model Compatibility List $0.56 / Each

2,4,5,6,1
#8 HOOD CLIP 100032 133333 68 #8 HOOD CLIP Yes Model Compatibility List $0.65 / Each

2,9,1,46
1/2 100258 013423 10B 1/2" TAP SCREW No Model Compatibility List $1.24 / Each

5/16 101724 013484 4 5/16" X 1/2" BUTTON SCREW Yes Model Compatibility List $1.26 / Each

5/16" X 1 1/2" SCREW 100138 013500 8 5/16" X 1 1/2" SCREW No Model Compatibility List $3.92 / Each

#8 X 1/2 100137 136728 19 #8 X 1/2" SCREW Yes Model Compatibility List $0.30 / Each

2
#10 STAR WASHER 100142 014088 5 #10 STAR WASHER No Model Compatibility List $0.07 / Each

#8 STAR WASHER 100141 014157 24 #8 STAR WASHER Yes Model Compatibility List $1.17 / Each

FLOOR MAT 36X72 100097 146119 # FLOOR MAT 36X72" No Model Compatibility List $42.90 / Each

1
M8 X 25MM WASHER 100695 152478 30 M8 X 25MM WASHER Yes Model Compatibility List $0.75 / Each

2
8 100063 016057 # 8" CABLE TIE No Model Compatibility List $1.30 / Each

102916 161121 96 #4 X 5/16" SCREW No Model Compatibility List $0.47 / Each

2
3/8 100123 163045 13 3/8" STAR WASHER Part # 3 On Drawing Yes Model Compatibility List $0.50 / Each

2
#10 X 3/4" SCREW 100128 167049 9 #10 X 3/4" SCREW No Model Compatibility List $0.32 / Each

2
GROMMET 100061 173169 77A GROMMET Yes Model Compatibility List $0.94 / Each

2,1
3/8 100134 179767 29 3/8"X1 3/4" BOLT INC TOP Yes Model Compatibility List $43.87 / Each

2
109927 181979 63 3/8" X 1 1/4" SCREW No Model Compatibility List $2.37 / Each

2
3/8 106813 181980 62 3/8" X 1 1/2" BOLT Yes Model Compatibility List $2.39 / Each

2
POWER SWITCH 100201 186726 75 POWER SWITCH Yes Model Compatibility List $16.42 / Each

6
#8 X 1/2 100120 186819 10A #8 X 1/2" SCREW Yes Model Compatibility List $0.42 / Each

2
FILTER W/6" WIRE 100113 189813 TS11 FILTER W/6" WIRE Yes Model Compatibility List $19.45 / Each

1,4
100306 191477 # DECAL, CNSL WRNG, FRENCH No Model Compatibility List $8.41 / Each

7,3,1
104524 197404 104 M5 WASHER No Model Compatibility List $1.20 / Each

2
BELT GUIDE 100147 198639 46 BELT GUIDE Yes Model Compatibility List $4.44 / Each

15,40

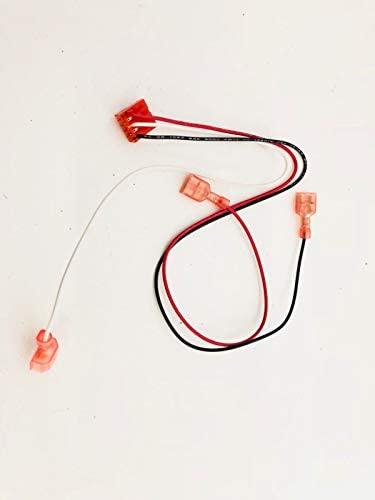

INCLINE MOTOR WIRE HRNS 12 100163 211260 TS6 INCLINE MOTOR WIRE HRNS 12 No Model Compatibility List $9.27 / Each

4,5,6,10,12,13,14
100268 213350 91 WRNG DECAL,OM HAS CAUTION No Model Compatibility List $5.96 / Each

7,3,1
Ground Wire 4 Inch 100187 215822 58 Ground Wire 4 Inch Yes Model Compatibility List $2.09 / Each

4,5,6,7
AUDIO WIRE,18 100197 215823 # AUDIO WIRE,18 Yes Model Compatibility List $8.87 / Each

4,5,6
100315 219896 # ACCESSORY KIT No Model Compatibility List $122.53 / Each

4,5,6,1
1/4 103010 225696 102 1/4" X 1 1/4" BOLT No Model Compatibility List $1.03 / Each

2
UPRIGHT GROMMET 100182 227199 77B UPRIGHT GROMMET Yes Model Compatibility List $1.55 / Each

2,3,1
100308 239969 # DECAL, PWR CORD WRNG, FCA No Model Compatibility List $9.63 / Each

7,3,4,5,6,1
100185 240351 48 ANCHORED CABLE TIE No Model Compatibility List $0.74 / Each

2,4,5,6,1
113665 242900 54B MOTOR ISOLATOR No Model Compatibility List $3.36 / Each

3
POWER CORD 108701 251086 76 POWER CORD Yes Model Compatibility List $44.97 / Each

4,5,6,1
5/16 105675 261618 28 5/16" X 2 1/2" SCREW No Model Compatibility List $16.87 / Each

2
1/4 100143 265234 100 1/4" X 1 1/4" SCREW No Model Compatibility List $1.24 / Each

2
100117 268476 # DECAL, GROUNG WARNING No Model Compatibility List $0.91 / Each

7,3,1
5/16 111178 271383 25 5/16" X 3/4" BOLT Yes Model Compatibility List $1.56 / Each

2
#8 X 5/8 102549 276104 26 #8 X 5/8" SCREW Yes Model Compatibility List $0.52 / Each

2
INCLINE MOTOR SENSOR KIT 100162 286707 # INCLINE MOTOR SENSOR KIT No Model Compatibility List $50.13 / Each

47

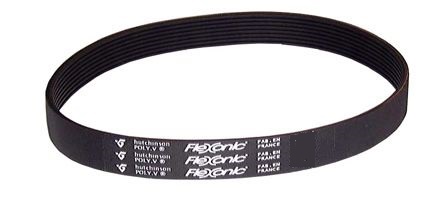

MOTOR BELT 113669 292525 55 MOTOR BELT Yes Model Compatibility List $42.20 / Each

15

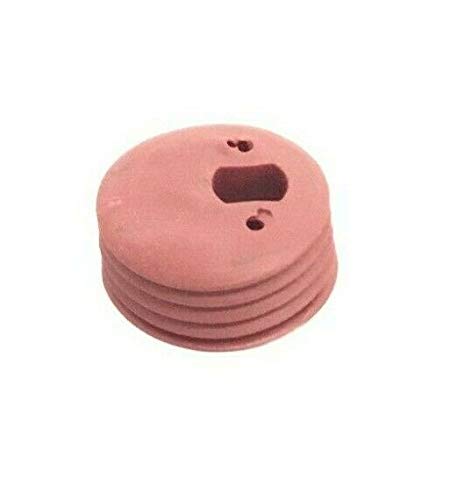

RUBBER GROMMET 102459 298474 59 RUBBER GROMMET No Model Compatibility List $1.52 / Each

2,40
5/16 102454 298484 23 5/16" BOLT,FLASH TM11-200 Yes Model Compatibility List $1.61 / Each

2
100037 305284 43 LATCH WARNING DECAL No Model Compatibility List $1.50 / Each

7,3,1,40
THICK BASE PAD 100180 307032 50 THICK BASE PAD Yes Model Compatibility List $2.76 / Each

3,12,13,14,46,40
117825 307147 107 FRENCH WARNING DECAL No Model Compatibility List $16.43 / Each

7,3,1
100140 315068 21 LIFT FRAME PIN No Model Compatibility List $6.00 / Each

3,10,12,13,14,2

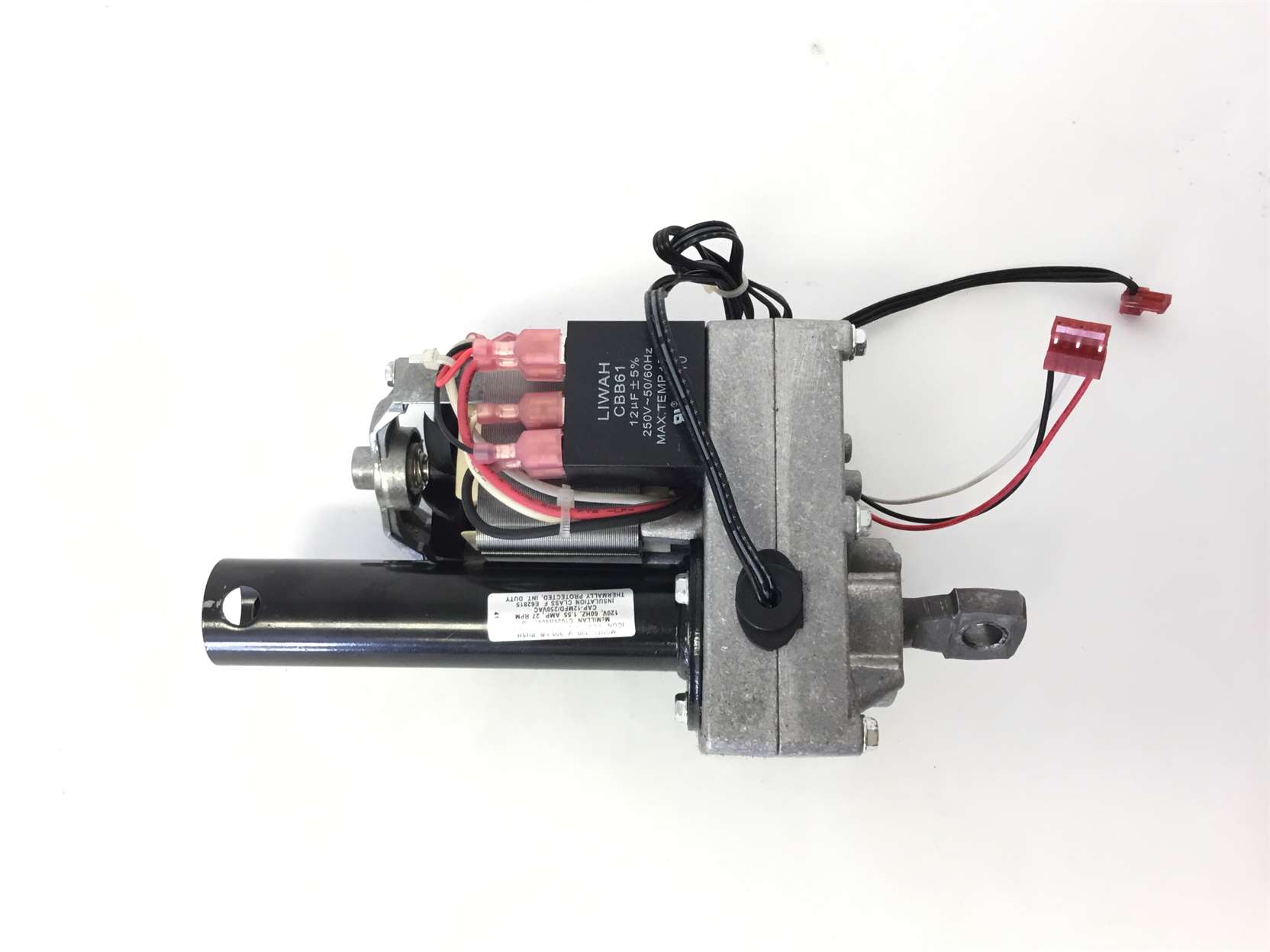

INCLINE MOTOR - AC Lift Motor 100209 315689 69 INCLINE MOTOR - AC Lift Motor Yes Model Compatibility List $131.26 / Each

1

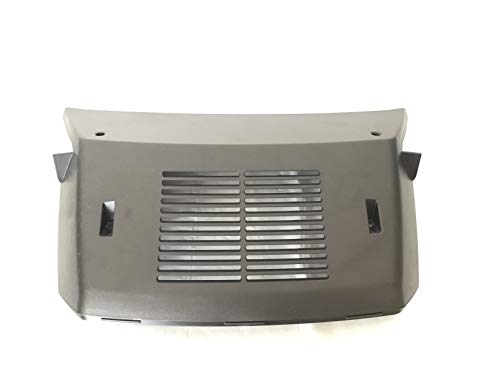

FAN COVER 122360 334647 37 FAN COVER Yes Model Compatibility List $20.50 / Each

8,9

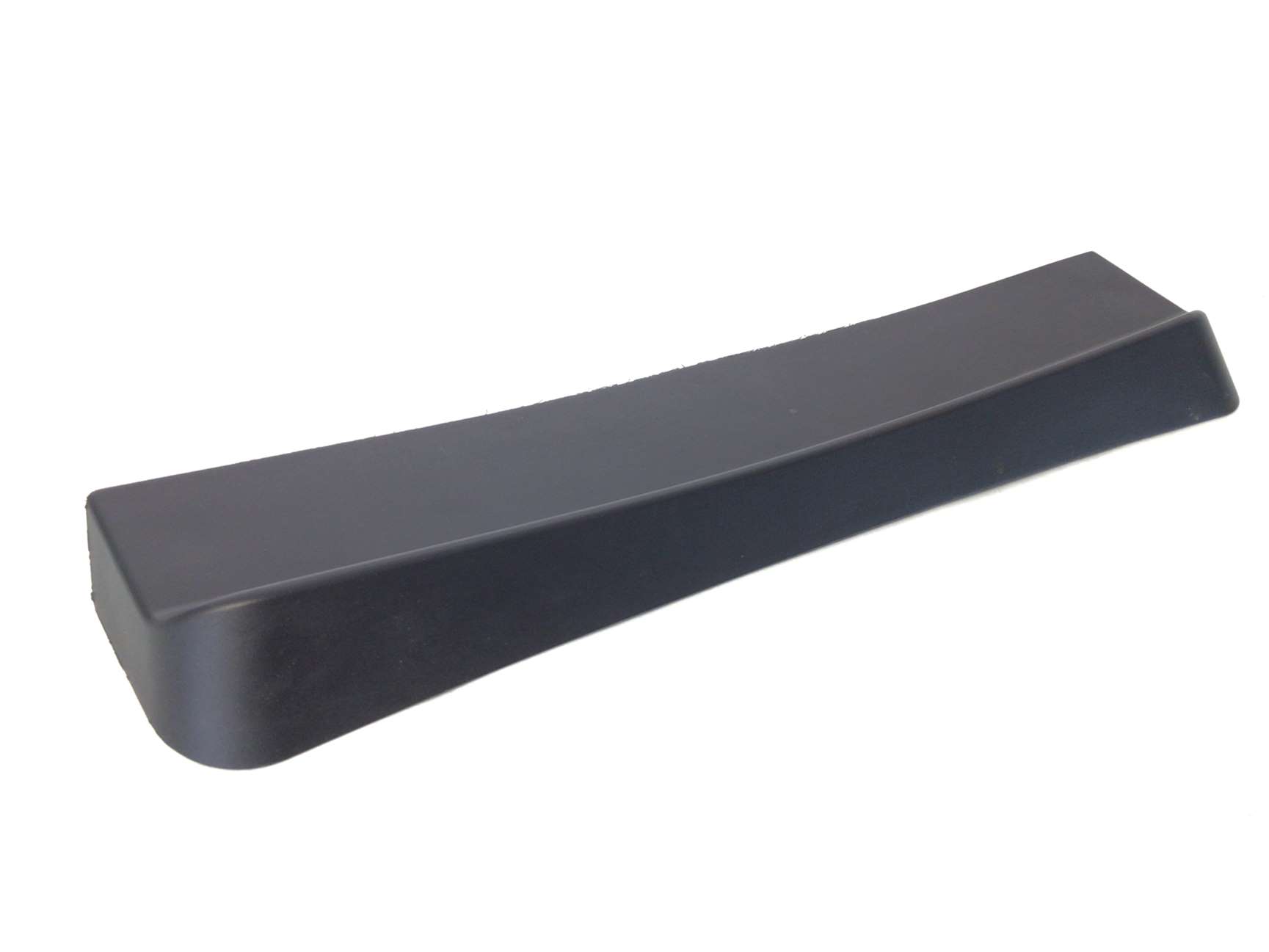

CNSL RUBBER TRIM 122382 334649 # CNSL RUBBER TRIM Yes Model Compatibility List $20.92 / Each

7
PULSE BAR BOTTOM 122377 334652 93 PULSE BAR BOTTOM Yes Model Compatibility List $127.33 / Each

12,13,14

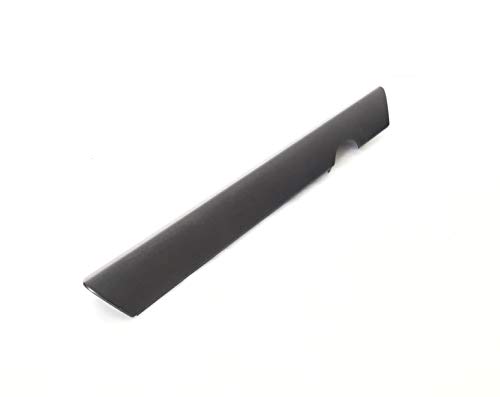

LEFT HANDRAIL COVER 122368 334653 79 LEFT HANDRAIL COVER Yes Model Compatibility List $13.98 / Each

3,9

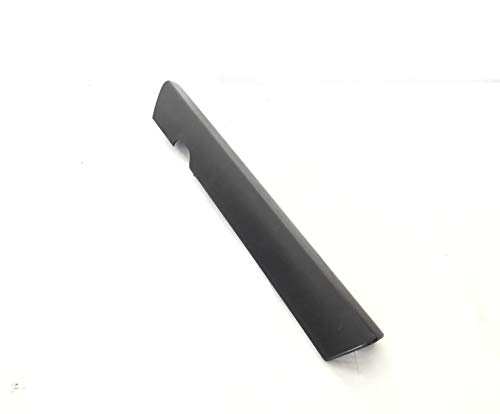

RIGHT HANDRAIL COVER 122376 334655 92 RIGHT HANDRAIL COVER Yes Model Compatibility List $13.98 / Each

3,9

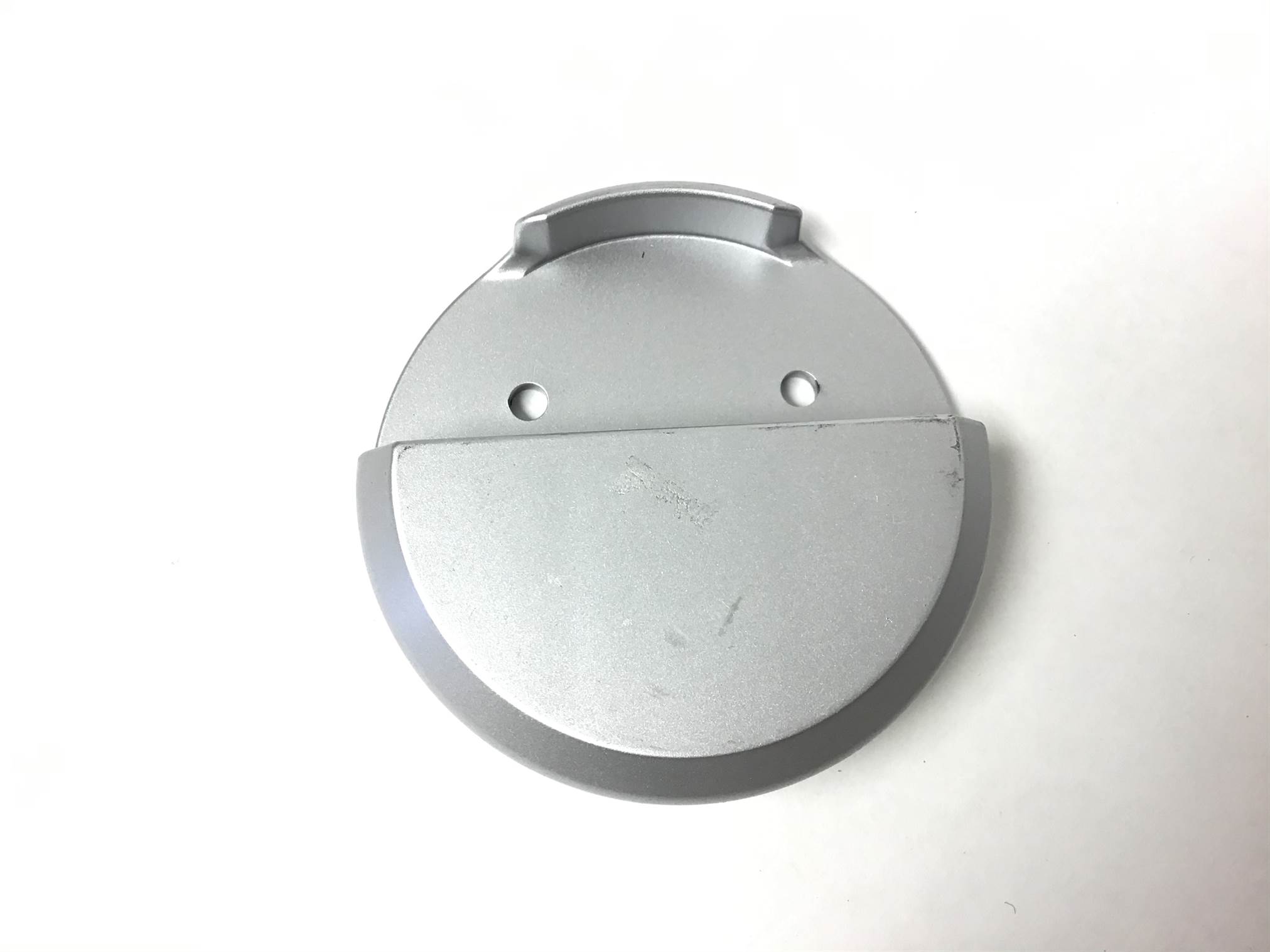

CONSOLE CLAMP 122361 334694 41 CONSOLE CLAMP Yes Model Compatibility List $3.16 / Each

1

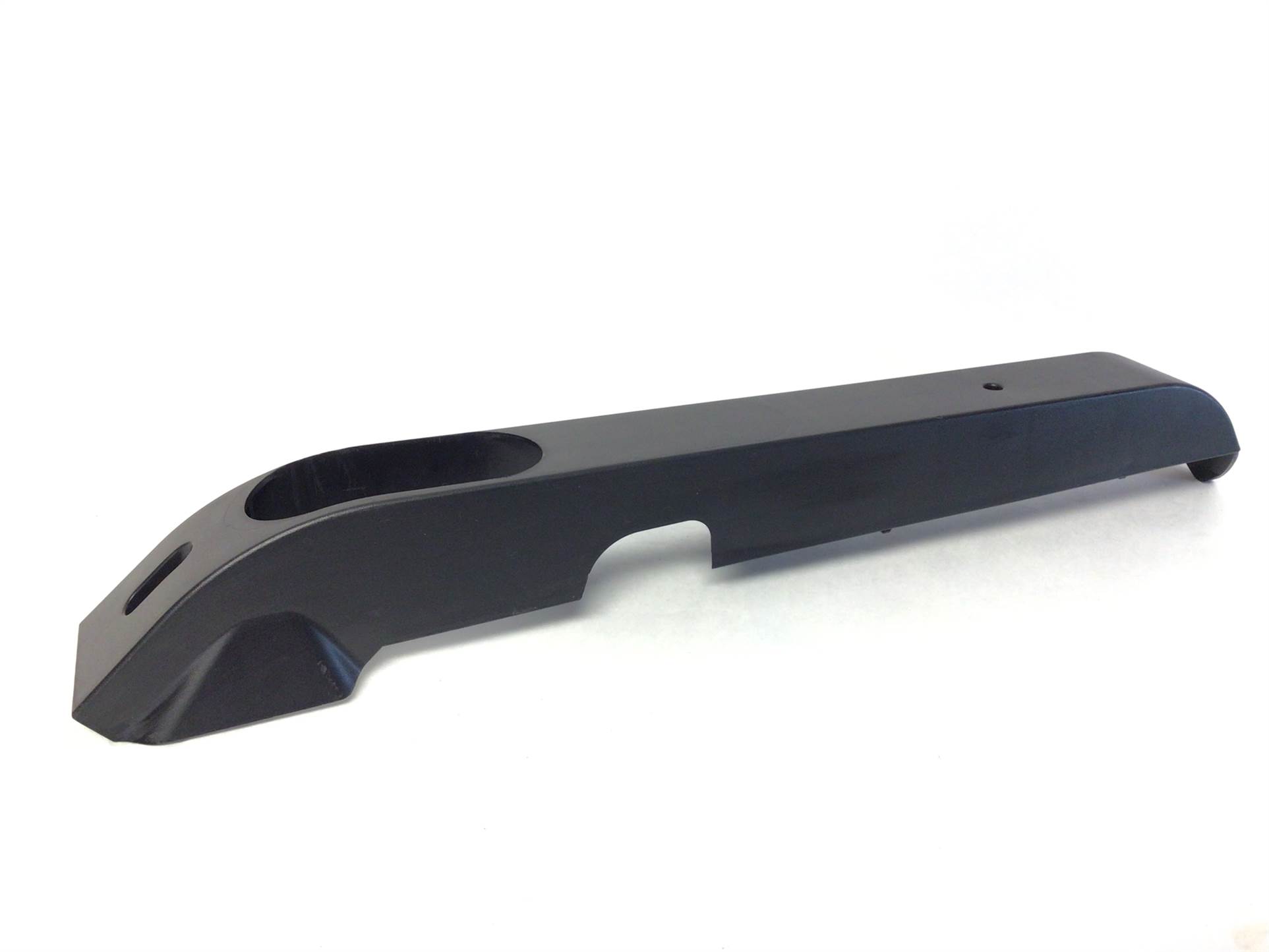

LT BTTM HANDRAIL CVR 122371 334919 85 LT BTTM HANDRAIL CVR Yes Model Compatibility List $13.80 / Each

9,3

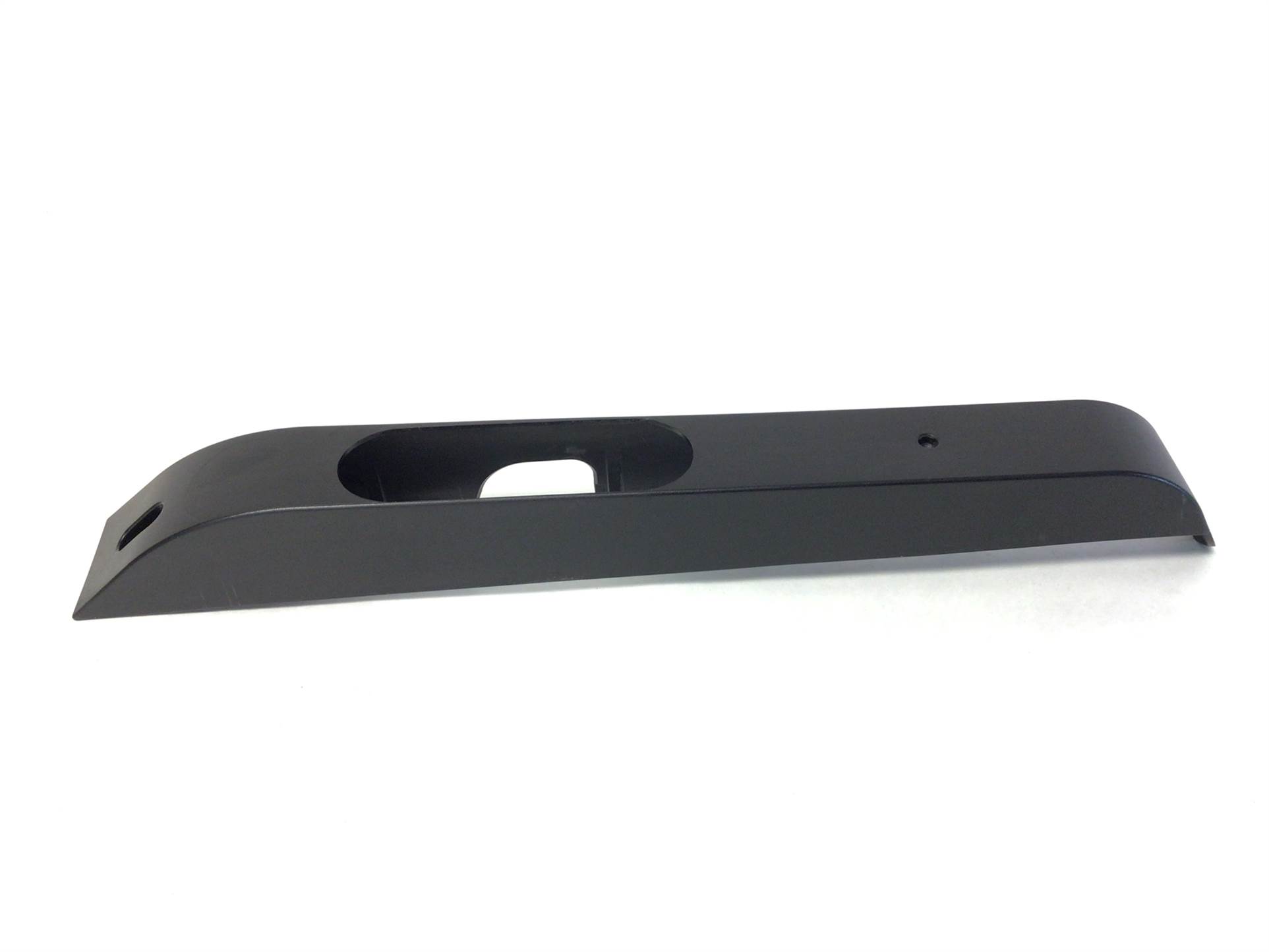

RT BTTM HANDRAIL CVR 122370 334921 84 RT BTTM HANDRAIL CVR Yes Model Compatibility List $13.80 / Each

9,3

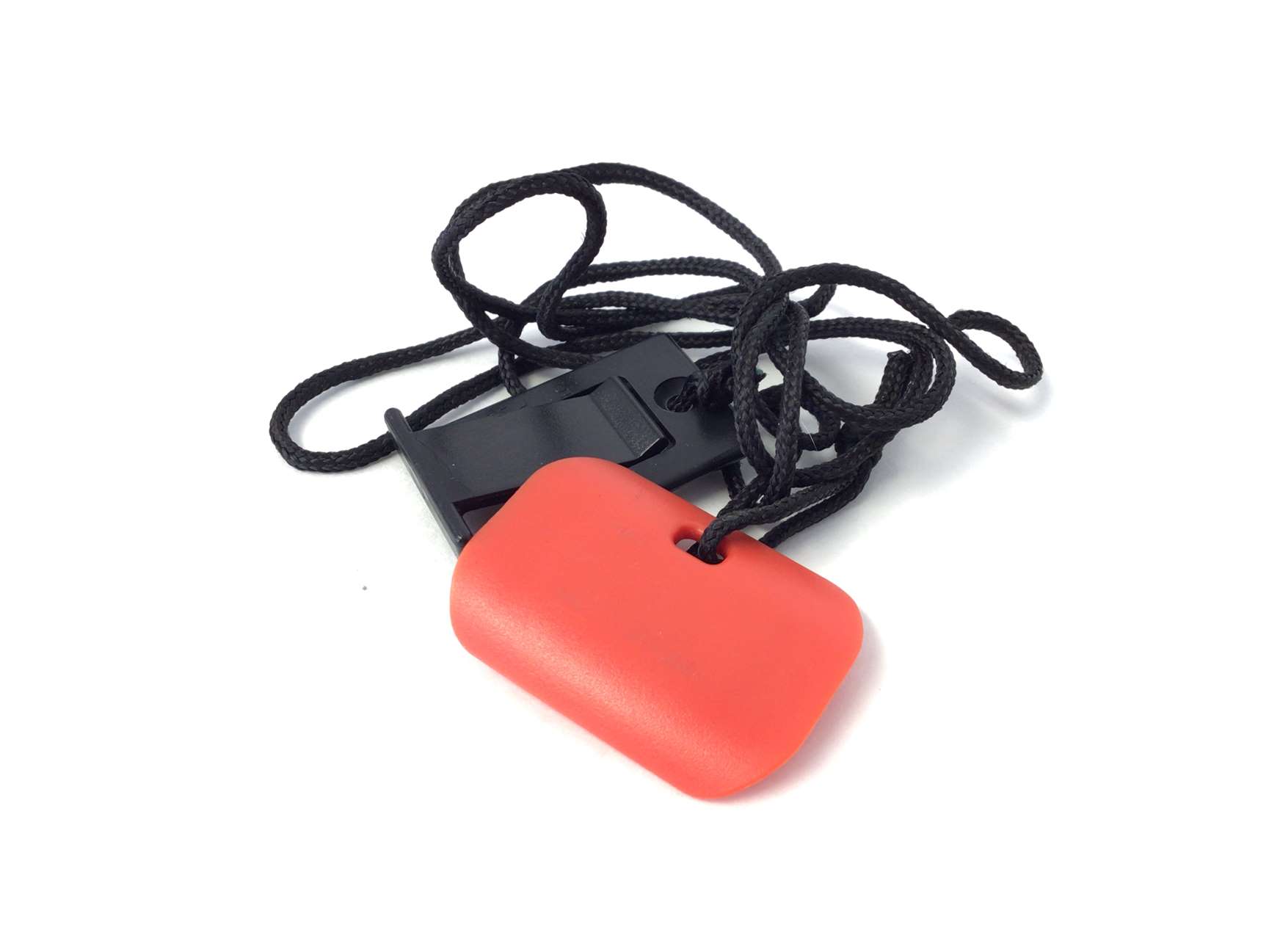

KEY/CLIP 122379 335158 98 KEY/CLIP Yes Model Compatibility List $18.24 / Each

2,9

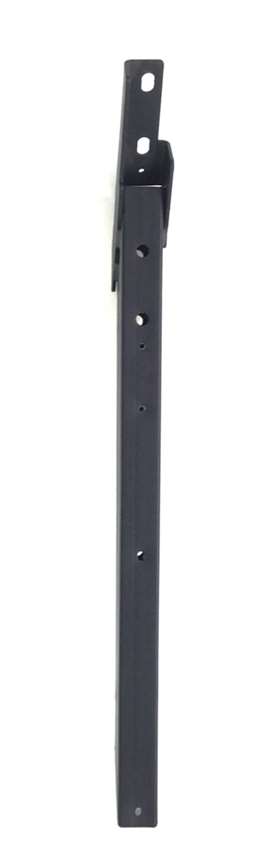

LEFT HANDRAIL 122372 336586 86 LEFT HANDRAIL Yes Model Compatibility List $39.05 / Each

9,3

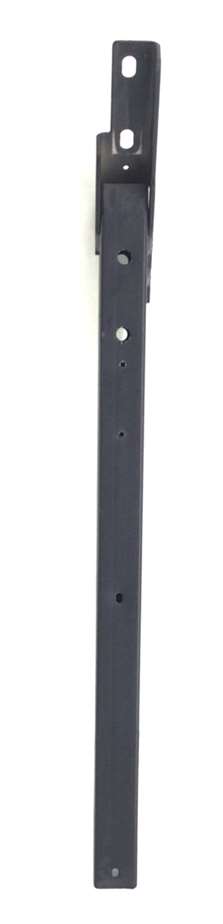

RIGHT HANDRAIL 122373 336587 87 RIGHT HANDRAIL Yes Model Compatibility List $39.17 / Each

9,3

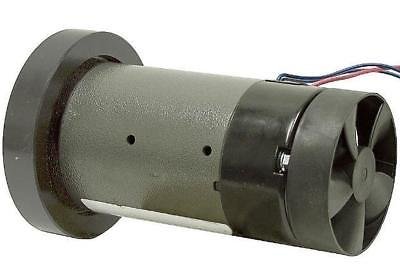

DRIVE MOTOR 113623 405686 54A DRIVE MOTOR Yes Model Compatibility List $362.50 / Each

1
3/8 111803 341768 7 3/8" X 2 1/4" SCREW No Model Compatibility List $9.14 / Each

2
111829 343447 71 FRAME SPACER No Model Compatibility List $4.80 / Each

2,3,4,5,6,40
3/8 109924 346519 16 3/8" X 1 1/2" BOLT Yes Model Compatibility List $2.98 / Each

2
LATCH CROSSBAR 113713 347756 38 LATCH CROSSBAR Yes Model Compatibility List $38.72 / Each

1,40
111831 347853 78 BELLY PAN No Model Compatibility List $73.80 / Each

1
REAR FOOT 111089 348118 40 REAR FOOT Yes Model Compatibility List $20.67 / Each

9,46

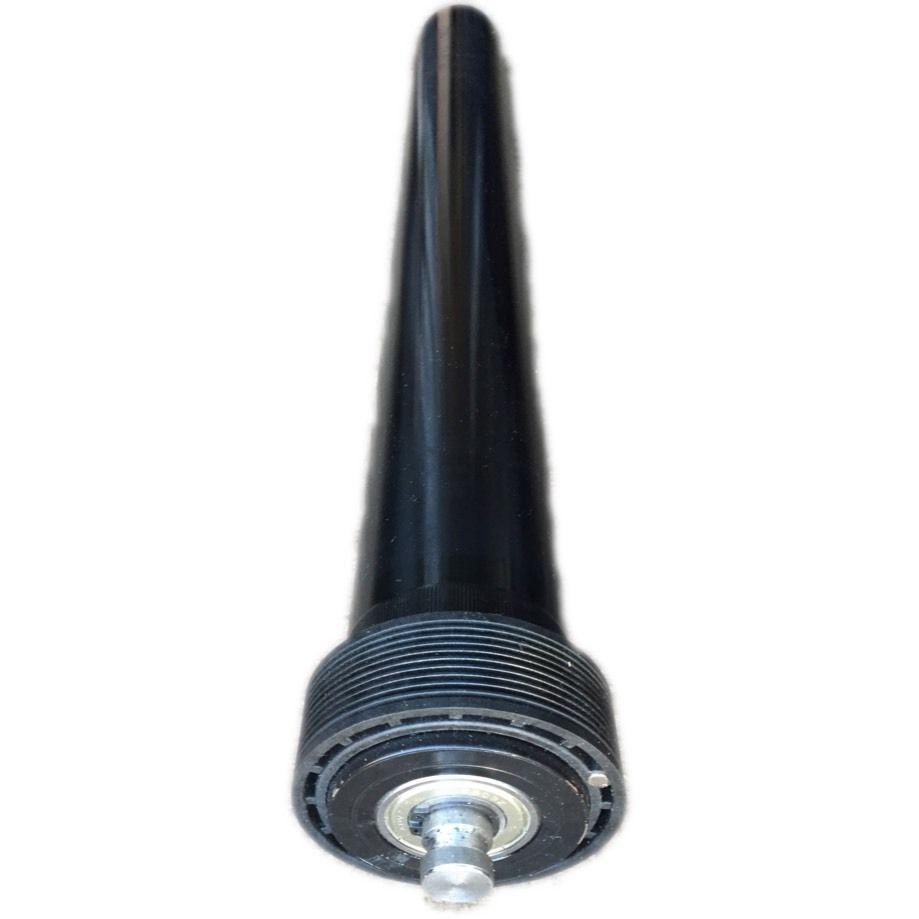

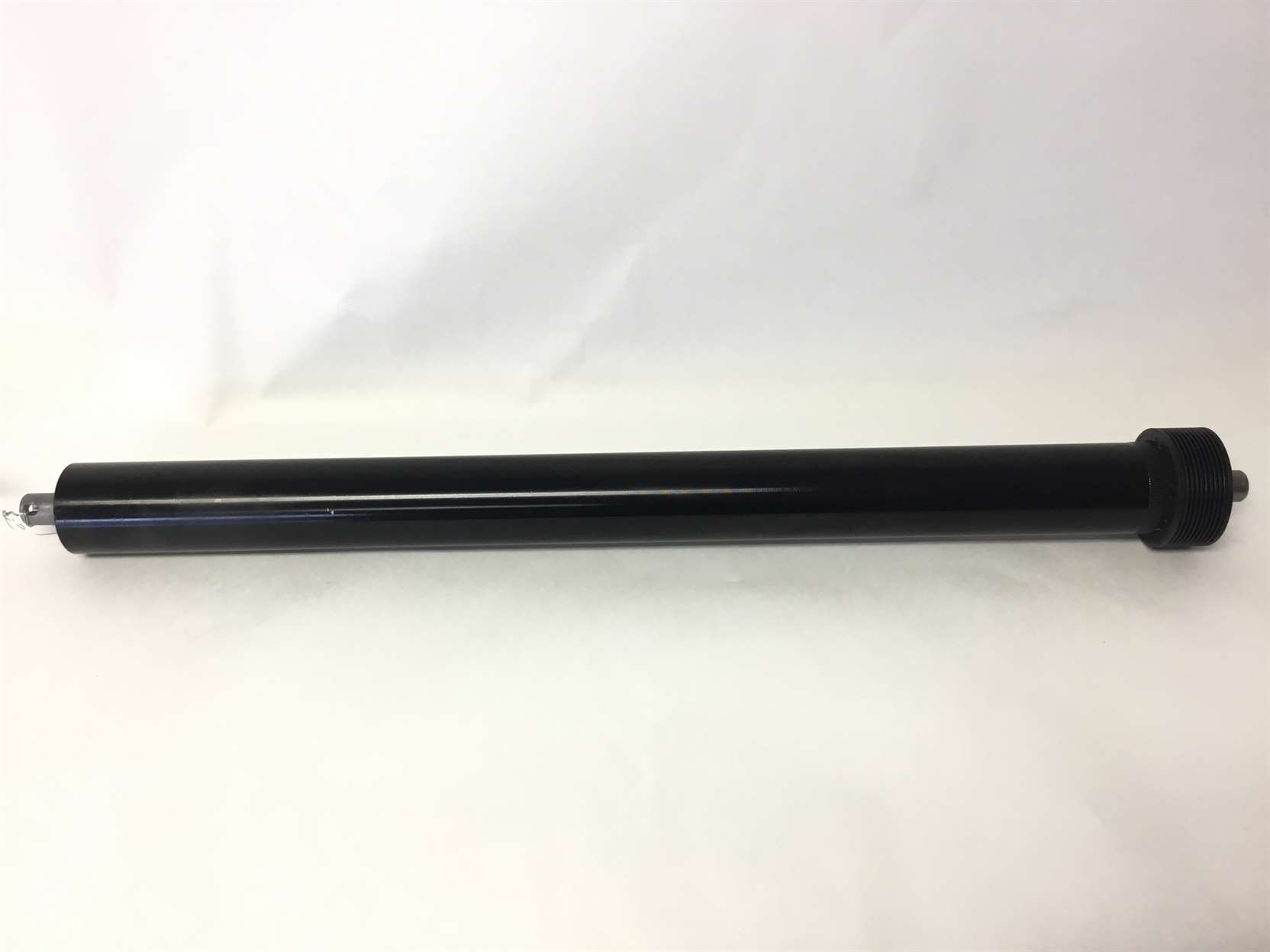

DRIVE ROLLER/PULLEY 118794 348641 49 DRIVE ROLLER/PULLEY Yes Model Compatibility List $116.18 / Each

26

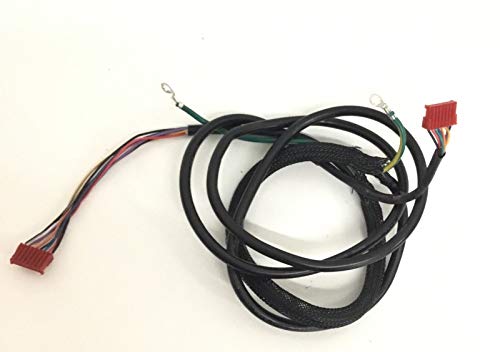

UPRIGHT WIRE 111834 349102 81 UPRIGHT WIRE Yes Model Compatibility List $52.98 / Each

1
5/16 109923 349213 3 5/16" X 2 1/4" BOLT Yes Model Compatibility List $3.18 / Each

2

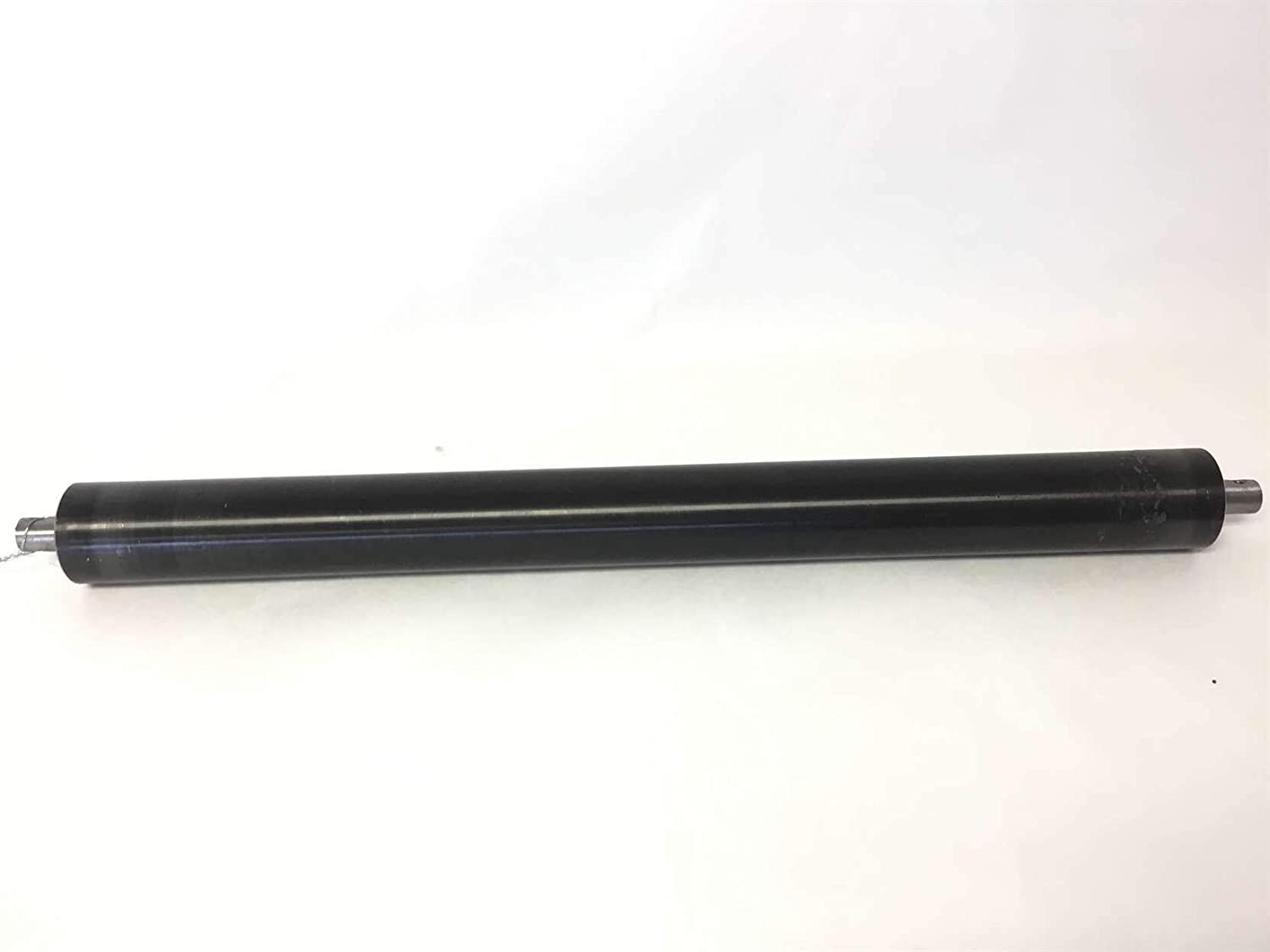

IDLER ROLLER 118797 349998 61 IDLER ROLLER Yes Model Compatibility List $92.65 / Each

8,45

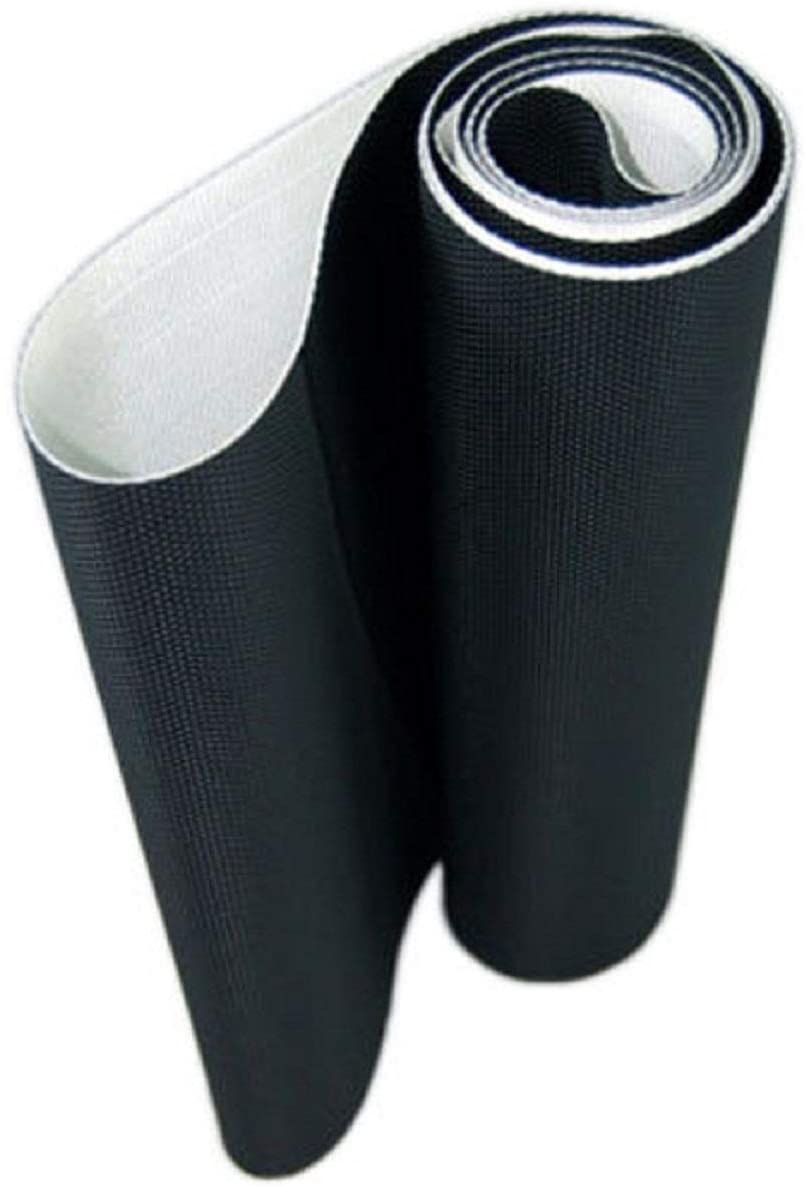

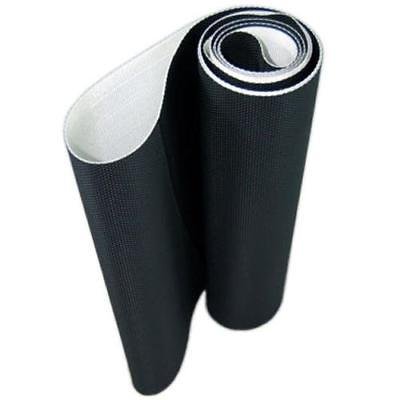

WALKING BELT 111815 350009 45 WALKING BELT Yes Model Compatibility List $139.00 / Each

15

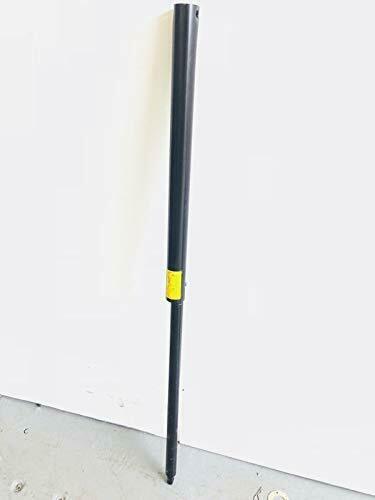

STORAGE LATCH 112076 388203 35 STORAGE LATCH Yes Model Compatibility List $87.46 / Each

1,40
PLATFORM CUSHION 117921 359082 39 PLATFORM CUSHION Yes Model Compatibility List $16.72 / Each

3
CUSHION BOTTOM 113705 359093 35 CUSHION BOTTOM Yes Model Compatibility List $20.78 / Each

3
1/4 102396 364027 15 1/4" X 2 1/2" BOLT Yes Model Compatibility List $2.01 / Each

1
100153 365327 74 CONTROLLER PLATE No Model Compatibility List $18.74 / Each

7,8

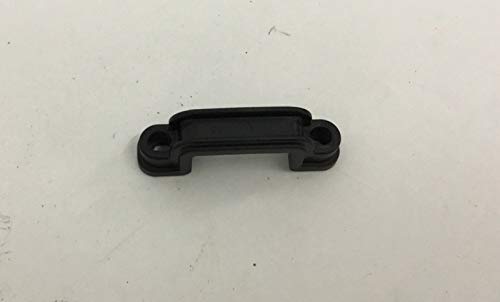

CONTROLLER CLAMP 111847 365328 73 CONTROLLER CLAMP Yes Model Compatibility List $11.40 / Each

4,5,6,7,8,2
109931 372033 22 3/8" X 1" SCREW No Model Compatibility List $4.07 / Each

2
109941 372092 88 3/8" BUSHING No Model Compatibility List $3.72 / Each

8,2
ROLLER SPACER 111827 372093 67 ROLLER SPACER Yes Model Compatibility List $3.83 / Each

3,40
111809 372094 52 9/32" PLASTIC BUSHING No Model Compatibility List $3.60 / Each

8,9,1,2
INCLINE FRAME 111828 372381 70 INCLINE FRAME Yes Model Compatibility List $124.48 / Each

3,10,40
WHEEL 111811 372591 97 WHEEL Yes Model Compatibility List $5.27 / Each

8,45
TABLET HOLDER 115894 372664 105 TABLET HOLDER Yes Model Compatibility List $87.44 / Each

1
122359 372678 36 LEFT TRAY No Model Compatibility List $18.59 / Each

1
122357 372679 27 RIGHT TRAY No Model Compatibility List $18.59 / Each

1
RIGHT INNER BASE COVER 122354 372697 14 RIGHT INNER BASE COVER Yes Model Compatibility List $19.75 / Each

3,9,46
LEFT INNER BASE COVER 122381 372698 106 LEFT INNER BASE COVER Yes Model Compatibility List $12.99 / Each

3,9,46
RIGHT BASE COVER 111836 372703 83 RIGHT BASE COVER Yes Model Compatibility List $19.75 / Each

3,9,46
LEFT BASE COVER 111835 372704 82 LEFT BASE COVER Yes Model Compatibility List $19.75 / Each

3,9,46
122391 372984 95 PULSE BAR No Model Compatibility List $97.05 / Each

12,13,14
122375 373281 90 RIGHT UPRIGHT No Model Compatibility List $110.89 / Each

3
122374 373284 89 LEFT UPRIGHT No Model Compatibility List $110.89 / Each

3
122367 373301 66 HOOD ACCENT No Model Compatibility List $55.88 / Each

9,4,5,6
122358 373302 31 FAN GRILL No Model Compatibility List $44.74 / Each

8,9
122363 375179 44 WALKING PLATFORM No Model Compatibility List $211.99 / Each

15
122380 375208 101 FAN No Model Compatibility List $92.36 / Each

8
122378 376562 94 BASE No Model Compatibility List $0.00 / Each
Out Of Stock 		3
3/8 109928 381122 17 3/8" X 1 3/4" BOLT Yes Model Compatibility List $2.18 / Each

2
122384 383534 # USER-S MANUAL,ENG No Model Compatibility List $0.00 / Each
Out Of Stock 		1
122385 383535 # USER-S MANUAL,FCA No Model Compatibility List $0.00 / Each
Out Of Stock 		1
122369 383536 80 CONSOLE No Model Compatibility List $0.00 / Each
Out Of Stock 		7
122366 383537 65 MOTOR HOOD No Model Compatibility List $0.00 / Each
Out Of Stock 		9
122387 387602 # HARDWARE KIT, NOTE: No Model Compatibility List $0.00 / Each
Out Of Stock 		1
122389 388203 53 STORAGE LATCH Yes Model Compatibility List $87.46 / Each

1,40
122388 389719 42 LEFT FOOT RAIL No Model Compatibility List $0.00 / Each
Out Of Stock 		9
122390 389720 60 RIGHT FOOT RAIL No Model Compatibility List $0.00 / Each
Out Of Stock 		9

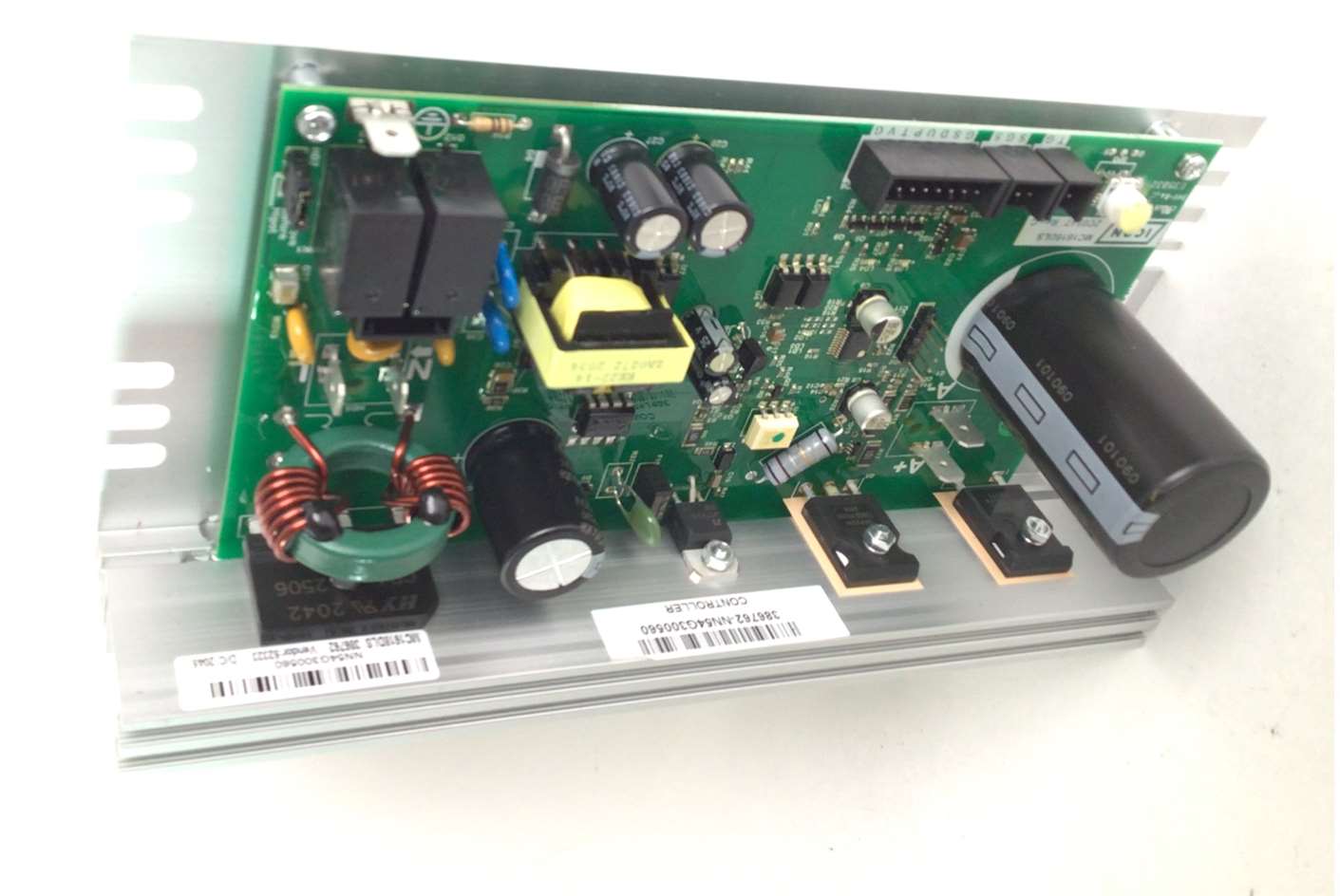

CONTROLLER 122398 392483 72 CONTROLLER No Model Compatibility List $172.81 / Each

7,8
LEFT REAR FOOT 118085 393577 57 LEFT REAR FOOT Yes Model Compatibility List $19.20 / Each

9
RIGHT REAR FOOT 118084 393579 47 RIGHT REAR FOOT Yes Model Compatibility List $19.37 / Each

9,46
122401 395104 # LITPAC NOTE: No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
122399 395240 # TECH SHEET No Model Compatibility List $0.00 / Each
Out Of Stock 		1
122396 397434 18 CONSOLE FRAME No Model Compatibility List $131.08 / Each

7,3
122397 397480 64 CONSOLE BASE No Model Compatibility List $129.71 / Each

7,3
122400 397653 # CN,VER ID,HRTL80515C.3 No Model Compatibility List $0.00 / Each
Out Of Stock 		12,13,14

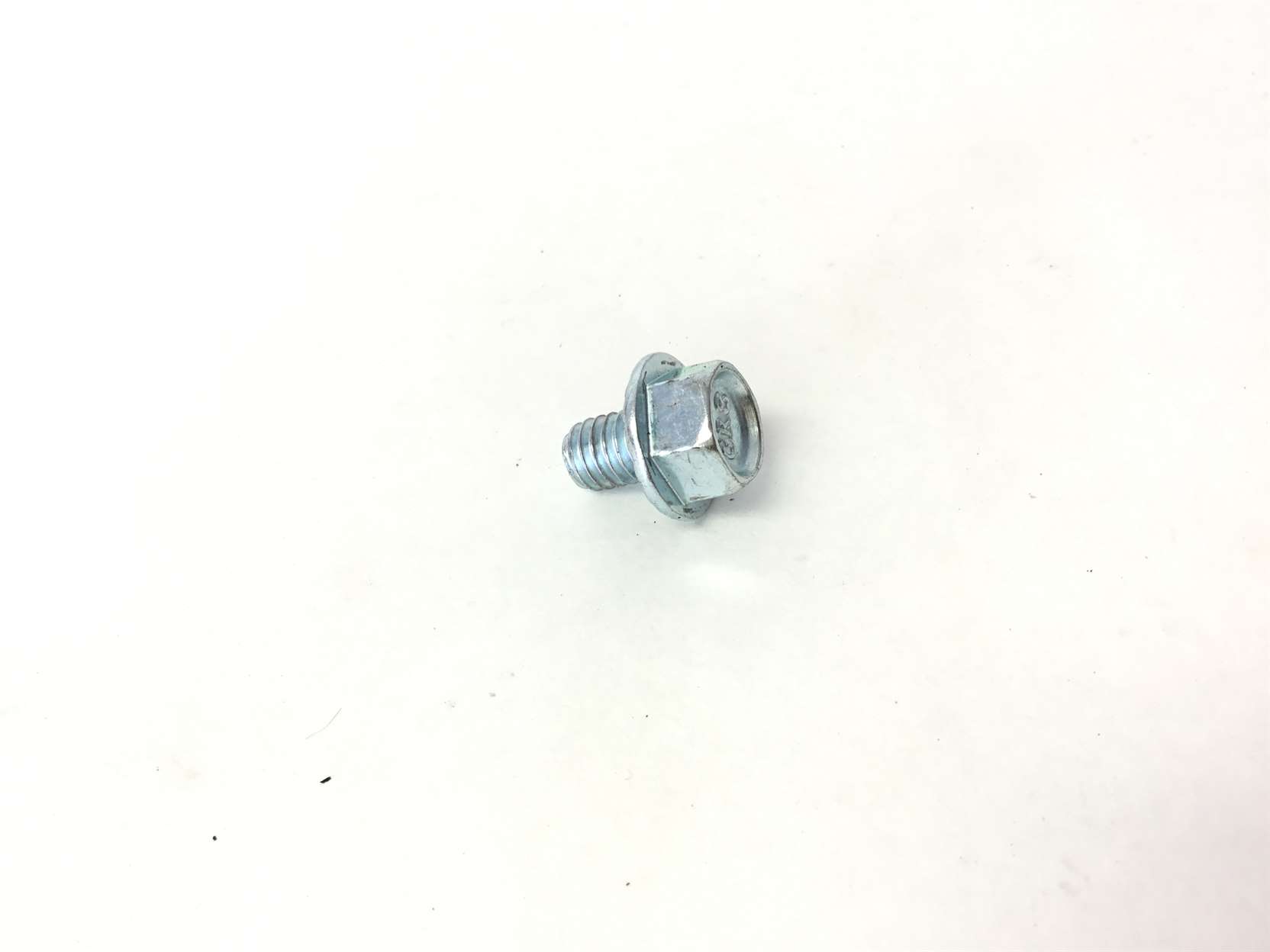

5/16 122356 400038 20 5/16" MOTOR SCREW Yes Model Compatibility List $2.32 / Each

2
100314 CIFMC9996 # LUBE KIT, CANADA, 4 TUBES No Model Compatibility List $0.00 / Each
Out Of Stock 		15,3,15,1
Fat Switch Version 000698 186726 128 1 Fat Switch Version Yes Model Compatibility List $16.42 / Each

6
Incline Lift Elevation Motor 1000508 315689 0 1 Incline Lift Elevation Motor Yes Model Compatibility List $125.99 / Each

1
Console Mounted Black Tablet Phone Book Holder 1000575 372664 0 1 Console Mounted Black Tablet Phone Book Holder Yes Model Compatibility List $77.99 / Each

1
STORAGE LATCH 1001803 356327 0 1 STORAGE LATCH No Model Compatibility List $120.00 / Each

1
Front Drive Roller w Pulley 1002149 348641 0 1 Front Drive Roller w Pulley Yes Model Compatibility List $104.99 / Each

26

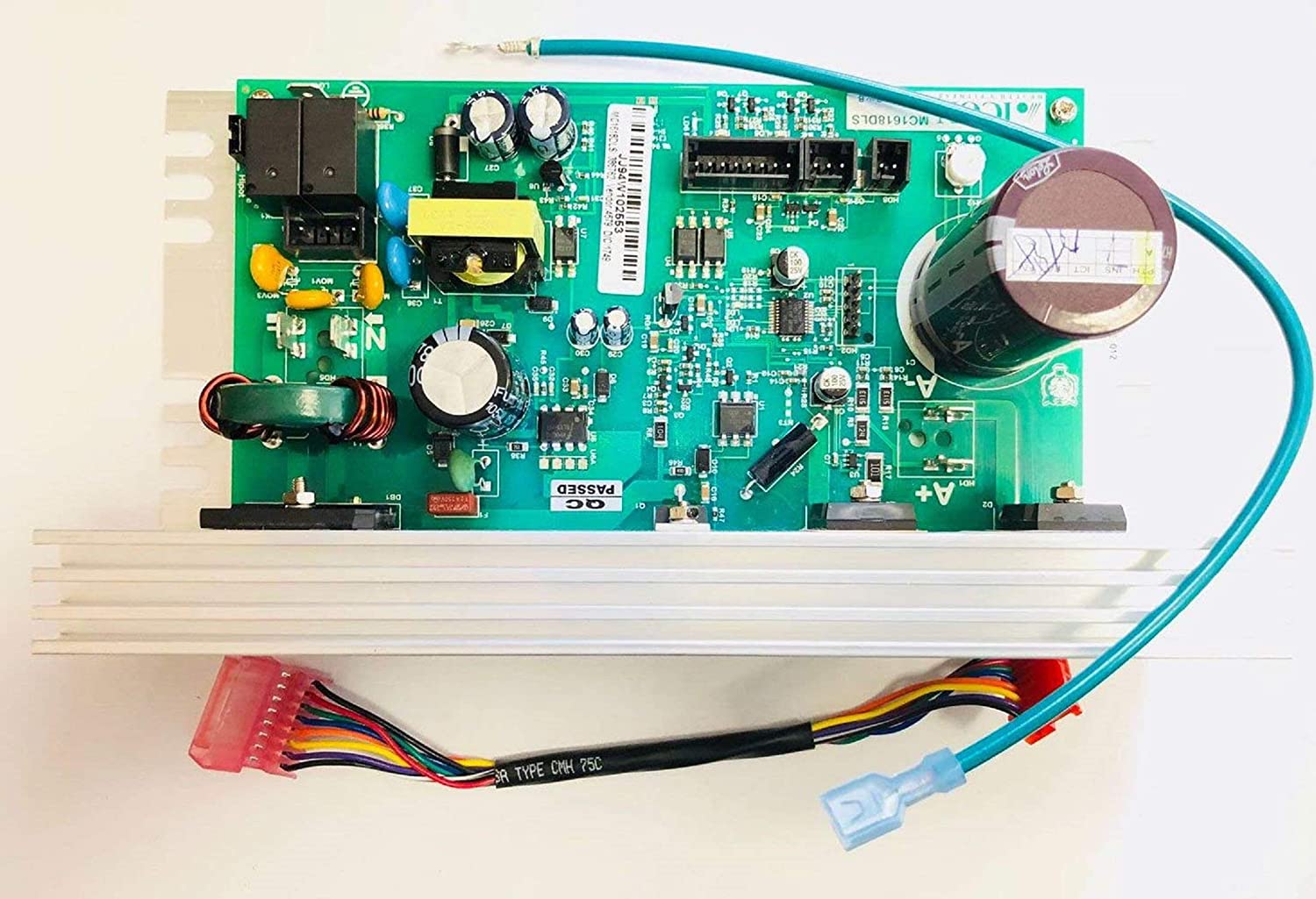

Controller MC2100LTS-30 1002500 398056 0 1 Controller MC2100LTS-30 Yes Model Compatibility List $179.00 / Each

7
Motor Controller Lower Board 1002815 398056 0 1 Motor Controller Lower Board Yes Model Compatibility List $179.00 / Each

7
Treadbelt 1003209 350009 0 1 Treadbelt Yes Model Compatibility List $139.00 / Each

15
Wire Harness 1004195 211260 TS06 1 Wire Harness No Model Compatibility List $9.27 / Each

4,5,6,10,12,13,14
Roller Wheel 1004223 372591 103 1 Roller Wheel Yes Model Compatibility List $5.27 / Each

8,45
Motor Controller Board 999989 398056 Motor Controller Board Yes Model Compatibility List $109.00 / Each
7
Rear Foot Leveler Level Feet 1000051 348118 62 Rear Foot Leveler Level Feet Yes Model Compatibility List $20.67 / Each

9,46
Tablet Holder Base 1029858 372491 Tablet Holder Base Yes Model Compatibility List $16.48 / Each
Out Of Stock
Tablet Holder Back 1029856 372482 Tablet Holder Back Yes Model Compatibility List $16.48 / Each
Out Of Stock
Tablet Holder Top 1029855 372481 Tablet Holder Top Yes Model Compatibility List $23.98 / Each
Out Of Stock
Tablet Holder Base Back 1029869 372492 Tablet Holder Base Back Yes Model Compatibility List $16.48 / Each
Out Of Stock
Holder Base Bottom Cover 1029857 398516 Holder Base Bottom Cover Yes Model Compatibility List $8.98 / Each
Out Of Stock
CONTROLLER CLAMP 1037622 365328 or 592150 CONTROLLER CLAMP Yes Model Compatibility List $10.00 / Each

View Drawing

general Info

Customer Service

About us

Address

6114 Madison Ct.
Morton Grove, IL 60053
847-309-2818

Hydra Fitness Exchange © 2025. All Rights Reserved.

Payment options
