Icon - TRAINER 1000

Repair Parts for Icon TRAINER 1000 CTTL078040

Brand: Icon

Category: Residential Treadmills

Type: Folding Treadmill

Model Name: TRAINER 1000

Exploded Diagrams

Other Languages Available

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry [email protected]

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
REAR ROLLER ADJ BOLT 104339 105444 59 REAR ROLLER ADJ BOLT Yes Model Compatibility List $2.95 / Each

1
ROLLER MAGNET 100081 113842 7 ROLLER MAGNET Yes Model Compatibility List $1.10 / Each

8,1
113328 114953 # 14" BLUE WIRE F/F No Model Compatibility List $4.17 / Each

4,5,6
RELEASABLE WIRE TIE 100064 116926 89 RELEASABLE WIRE TIE No Model Compatibility List $0.25 / Each

1,4,2
TIE CLAMP HOLDER - SCREW MOUNT 100262 116927 91 TIE CLAMP HOLDER - SCREW MOUNT No Model Compatibility List $2.49 / Each

1
KEY/CLIP 104349 119038 . KEY/CLIP Yes Model Compatibility List $9.89 / Each

1
3/8 100031 119425 101 3/8" HEX JAM NUT Yes Model Compatibility List $0.55 / Each

2
1.25 104342 119445 . 1.25" TEK SCREW No Model Compatibility List $1.46 / Each

2
100088 123945 # TECH SHEET ENVELOPE No Model Compatibility List $0.94 / Each

1
102770 125214 39 #8 X 2" SCREW No Model Compatibility List $0.42 / Each

2

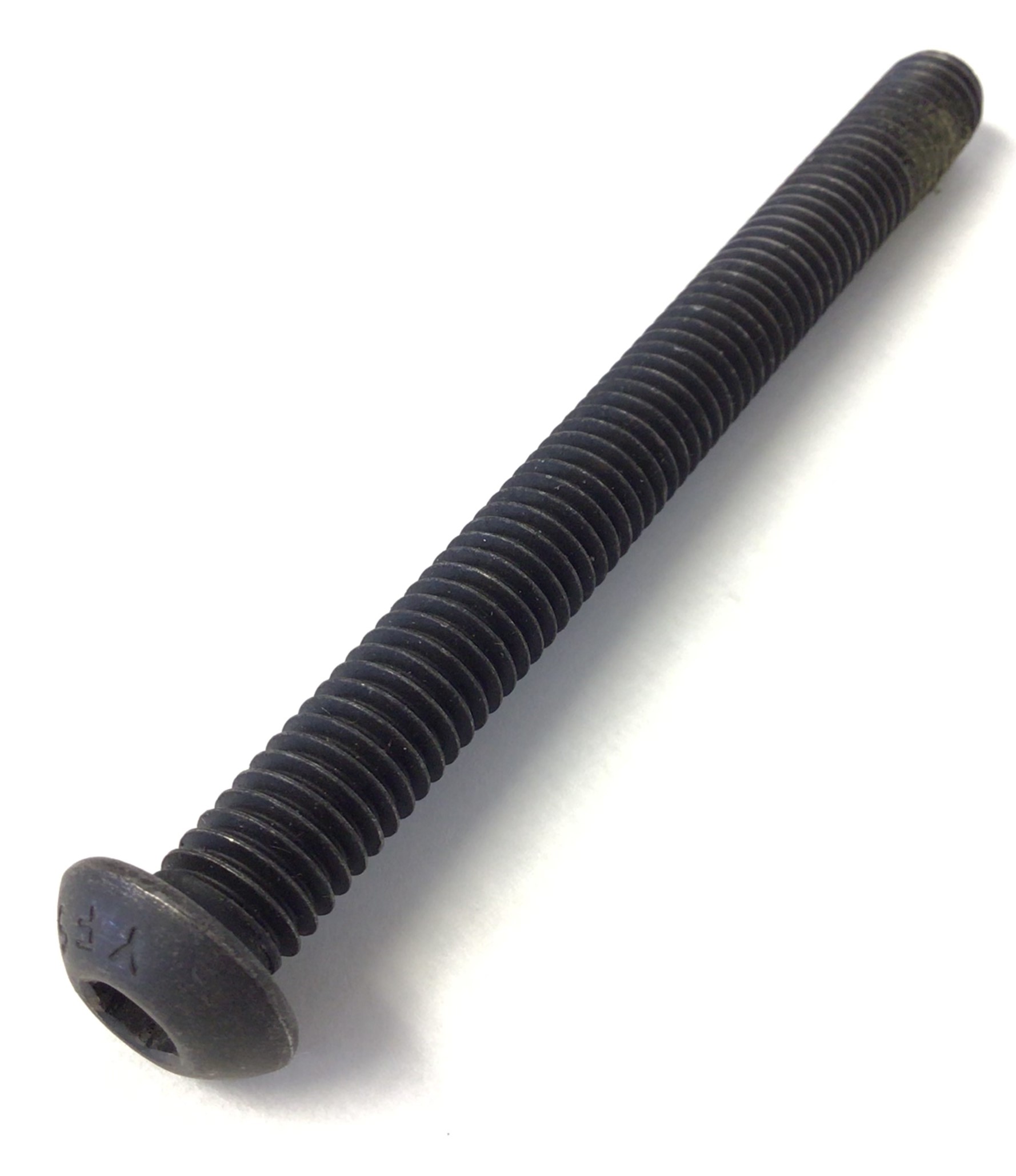

3/8 113614 125237 . 3/8" X 4" SCREW No Model Compatibility List $4.48 / Each

2
PLATFORM BOLT, FRONT 1/4 100221 128272 17 PLATFORM BOLT, FRONT 1/4" X1.25" Yes Model Compatibility List $7.04 / Each

2
3/16-7/32 100190 128457 . 3/16-7/32" ALLEN WRENCH No Model Compatibility List $18.74 / Each

1
ROUND GROMMET 101035 129004 109 ROUND GROMMET No Model Compatibility List $1.44 / Each

1
#8 X 3/4 100149 013300 . #8 X 3/4" WASHER HD SCREW Yes Model Compatibility List $1.28 / Each

HOOD SCREW 100354 013316 . HOOD SCREW No Model Compatibility List $1.42 / Each

1/2 100258 013423 56 1/2" TAP SCREW No Model Compatibility List $1.24 / Each

WHEEL BOLT 104188 013501 94 WHEEL BOLT No Model Compatibility List $3.67 / Each

IDLER ARM BOLT 100450 013547 24 IDLER ARM BOLT No Model Compatibility List $2.89 / Each

3/8-16X4.5 106786 135621 93 3/8-16X4.5" Button Head Screw No Model Compatibility List $3.04 / Each

2

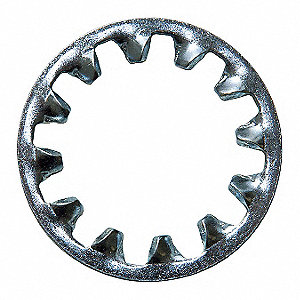

1 100359 136121 111 REAR ROLLER STAR WASHER No Model Compatibility List $2.33 / Each

1
#8 X 1/2 100137 136728 45 #8 X 1/2" SCREW Yes Model Compatibility List $0.30 / Each

2
1/4 100042 014063 34 1/4" FLAT WASHER No Model Compatibility List $1.03 / Each

3/8 102446 014117 . 3/8" CONSOLE SUPPORT No Model Compatibility List $1.32 / Each

IDLER WHEEL WASHER 100263 014132 100 IDLER WHEEL WASHER No Model Compatibility List $2.43 / Each

2X3 Inch Rectangular Endcap 108456 149217 103 2X3 Inch Rectangular Endcap Yes Model Compatibility List $10.79 / Each

4,5,6,9

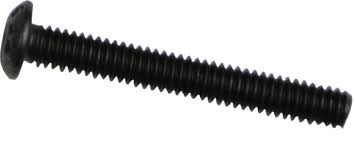

4 118396 149442 . 4" BOLT No Model Compatibility List $6.96 / Each

1
5/16 101663 150699 . 5/16" X 2 1/2" SCREW Yes Model Compatibility List $7.15 / Each

2
123782 151903 104 CAUTION DECAL No Model Compatibility List $1.23 / Each

7,3
123827 153409 83 LONG BELLYPAN SCREW No Model Compatibility List $0.73 / Each
Out Of Stock 		2,9
M4 X 52MM SCREW 101799 154848 3 M4 X 52MM SCREW No Model Compatibility List $1.23 / Each

2
CONSOLE GROUND WIRE 102243 155623 41 CONSOLE GROUND WIRE Yes Model Compatibility List $2.75 / Each

1
Console Wire Harness 102331 156429 25 Console Wire Harness Yes Model Compatibility List $24.06 / Each

4
REED SWITCH 100423 157504 10 REED SWITCH Yes Model Compatibility List $15.81 / Each

24
BASE PAD 100076 157600 . BASE PAD Yes Model Compatibility List $1.33 / Each

3,12,13,14,46,1
102240 158157 # STATIC DECAL No Model Compatibility List $1.84 / Each
Out Of Stock 		7,3

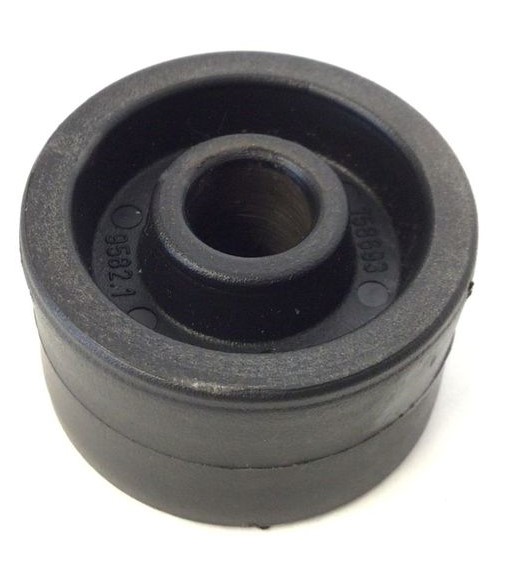

FRAME PIVOT SPACER 122230 158693 6 FRAME PIVOT SPACER No Model Compatibility List $7.02 / Each

3,9

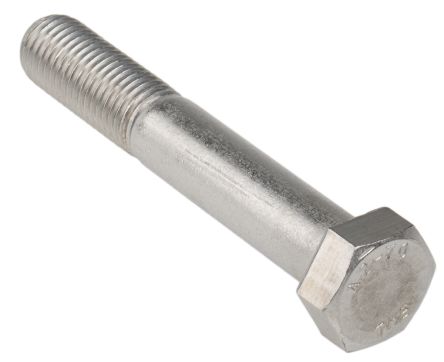

TOP LIFT MOTOR BOLT 100347 159986 22 TOP LIFT MOTOR BOLT No Model Compatibility List $7.03 / Each

1,2
8 100063 016057 92 8" CABLE TIE No Model Compatibility List $1.30 / Each

124490 161885 75 RIGHT FOAM GRIP No Model Compatibility List $49.63 / Each
Out Of Stock 		11
102277 161922 74 PULLEY BOLT No Model Compatibility List $1.06 / Each

2,8

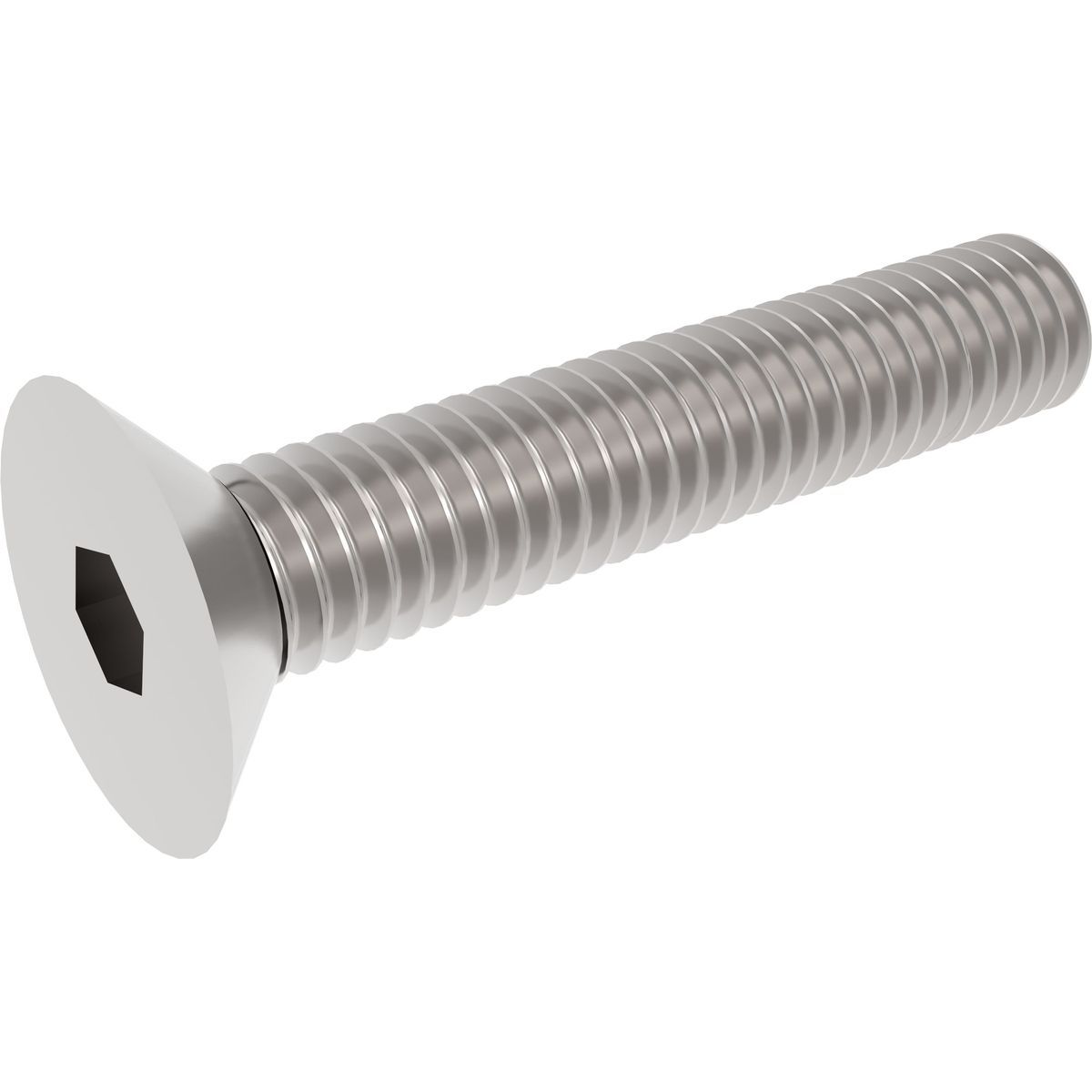

FRONT ROLLER ADJ BOLT 100433 165220 32 FRONT ROLLER ADJ BOLT No Model Compatibility List $2.79 / Each

1
159169 166479 # FASTENER No Model Compatibility List $0.44 / Each

1
159045 170394 65 LEFT FOAM GRIP No Model Compatibility List $46.46 / Each

11
GROMMET 100061 173169 97 GROMMET Yes Model Compatibility List $0.94 / Each

2,1
MOTOR BOLT 100236 175162 73 MOTOR BOLT No Model Compatibility List $3.07 / Each

1
175714 179879 48 PULSE BAR COVER No Model Compatibility List $6.14 / Each

9,12,13,14
POWER SWITCH 100201 186726 43 POWER SWITCH Yes Model Compatibility List $16.42 / Each

6
#8 X 1/2 100120 186819 90 #8 X 1/2" SCREW Yes Model Compatibility List $0.42 / Each

2
136051 187996 51 RIGHT FOOT RAIL CAP Yes Model Compatibility List $7.06 / Each
9
136121 188882 19 RIGHT FOAM TRIM No Model Compatibility List $20.46 / Each

1

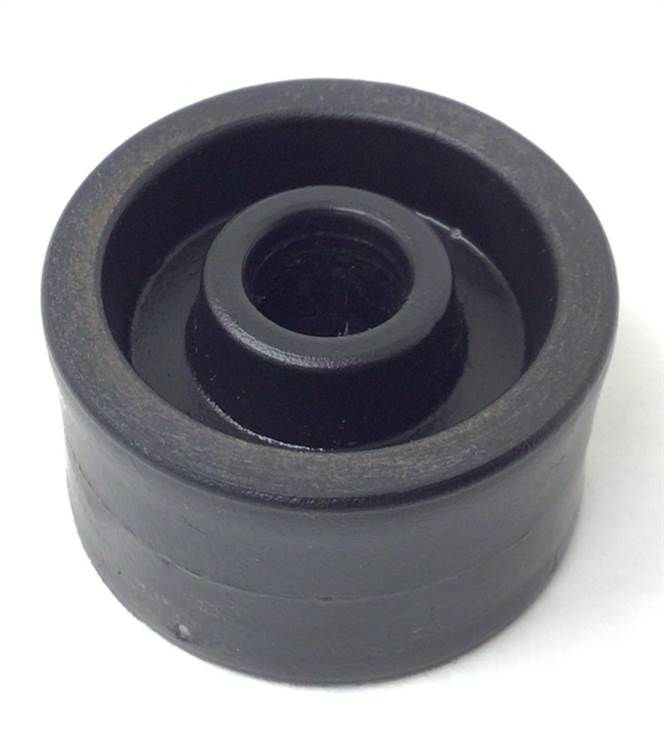

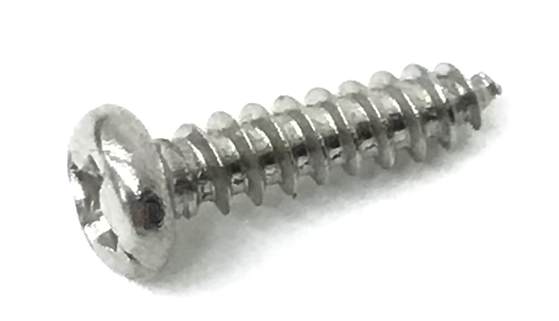

SMOKE WHEEL 117649 189209 95 SMOKE WHEEL No Model Compatibility List $32.33 / Each

8
159047 189213 . LATCH SPACER No Model Compatibility List $3.43 / Each

2,3,4,5,6
FILTER W/6" WIRE 100113 189813 85 FILTER W/6" WIRE Yes Model Compatibility List $19.45 / Each

1,4

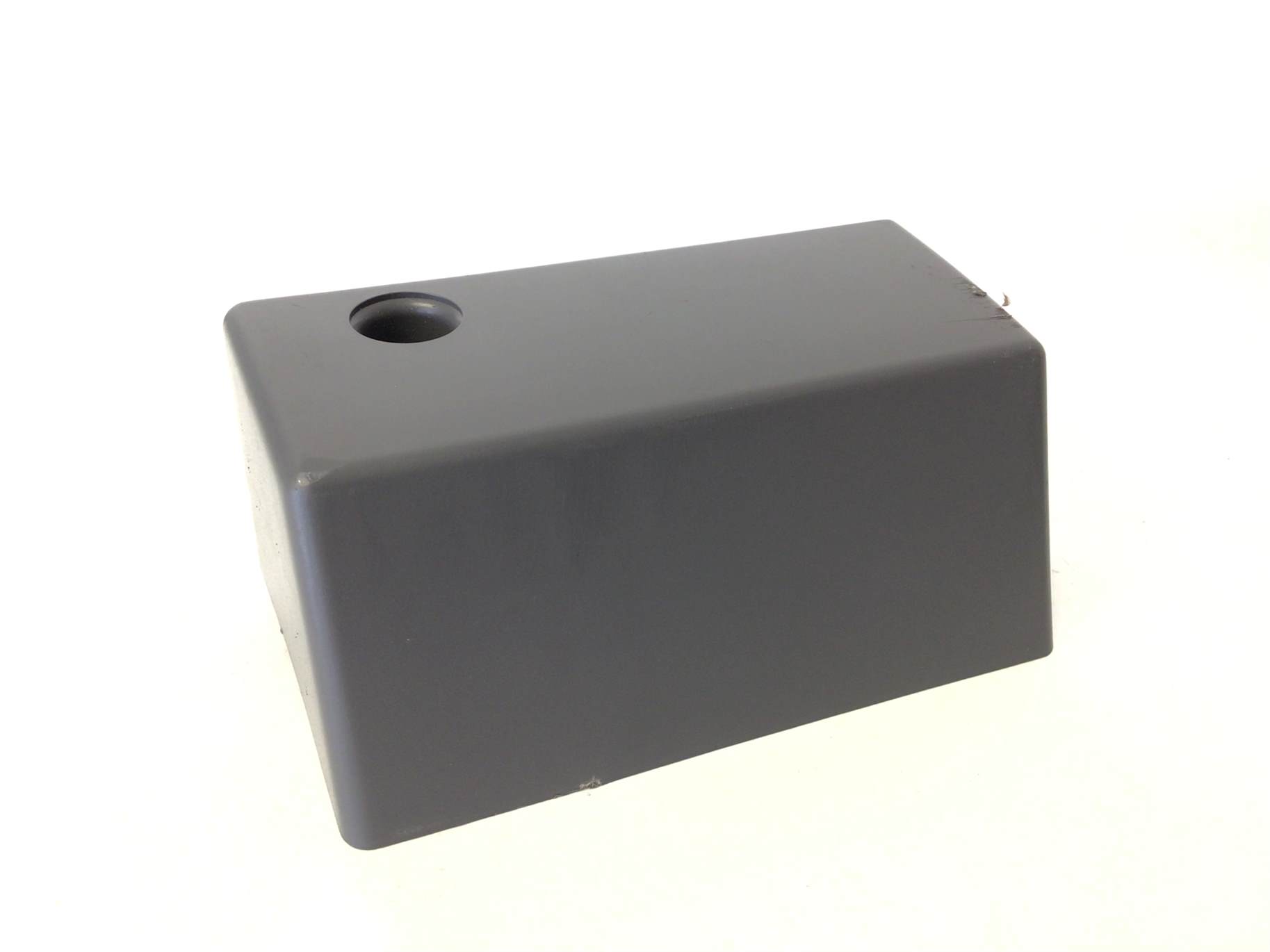

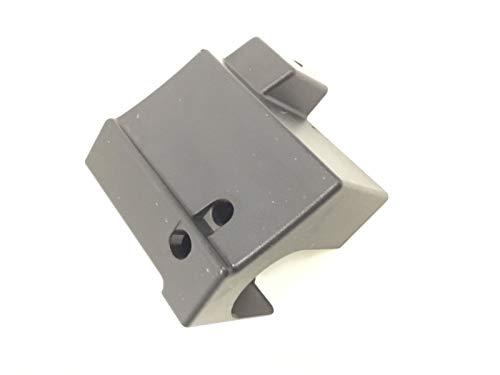

RIGHT REAR ENDCAP 136279 191456 50 RIGHT REAR ENDCAP Yes Model Compatibility List $34.00 / Each

4,5,6,9

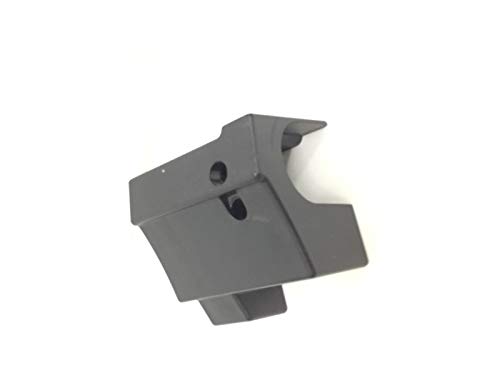

LEFT REAR ENDCAP 136284 191459 58 LEFT REAR ENDCAP Yes Model Compatibility List $34.00 / Each

4,5,6,9
159044 191765 37 INCLINE MOTOR STOP No Model Compatibility List $10.38 / Each

10
159048 192659 107 PULSE BAR No Model Compatibility List $138.29 / Each

12,13,14
RIGHT ENDCAP FOOT 122239 198150 54 RIGHT ENDCAP FOOT Yes Model Compatibility List $7.48 / Each

1

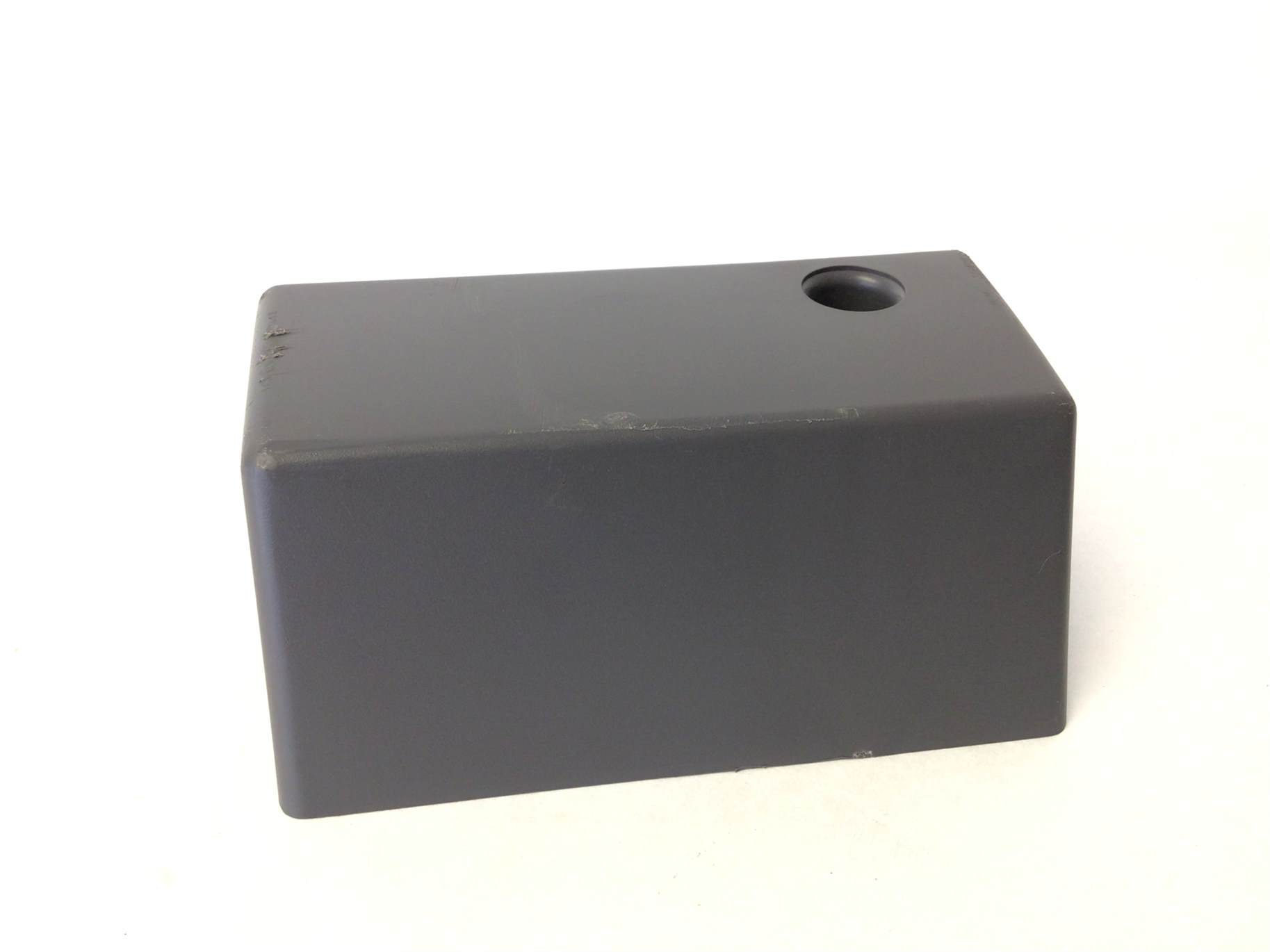

LEFT ENDCAP FOOT 122238 198209 44 LEFT ENDCAP FOOT Yes Model Compatibility List $8.58 / Each
Out Of Stock 		1
MOTOR BELT 102312 198595 18 MOTOR BELT Yes Model Compatibility List $28.69 / Each

23
BELT GUIDE 100147 198639 46 BELT GUIDE Yes Model Compatibility List $4.44 / Each

15,40
122242 203663 # GROUND WIRE No Model Compatibility List $3.22 / Each

4,5,6

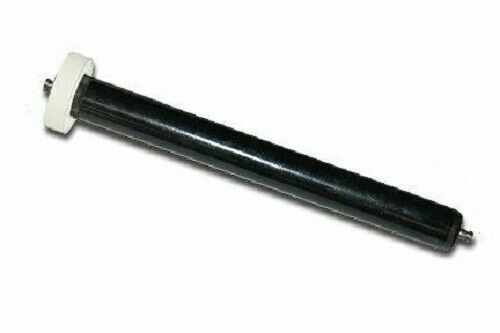

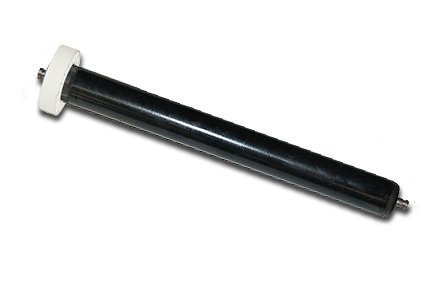

FRONT ROLLER/PULLEY 136047 207247 8 FRONT ROLLER/PULLEY Yes Model Compatibility List $137.34 / Each

8
CONTROLLER 102439 408937 29 CONTROLLER No Model Compatibility List $181.93 / Each

7,8

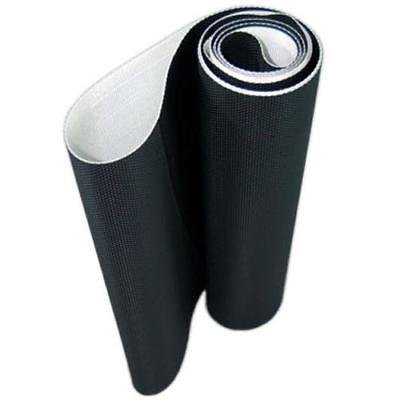

WALKING BELT 124413 403798 40 WALKING BELT Yes Model Compatibility List $121.34 / Each

15
124354 213316 70 LIFT FRAME No Model Compatibility List $228.94 / Each

3,10

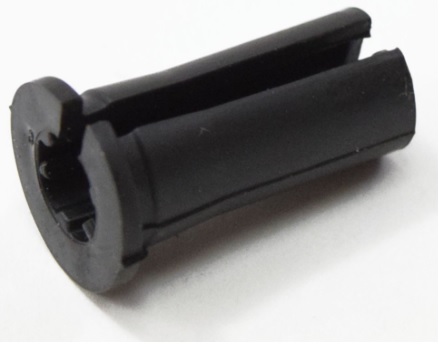

REED SWITCH CLIP 100422 216626 12 REED SWITCH CLIP No Model Compatibility List $1.85 / Each

1
175713 218230 13 LIFT FRAME No Model Compatibility List $130.12 / Each
Out Of Stock 		3,10
175718 218241 68 CROSSBAR No Model Compatibility List $56.08 / Each

1
175720 218245 81 CONSOLE BASE No Model Compatibility List $71.00 / Each

7,3
175722 218246 88 CONSOLE BACK No Model Compatibility List $48.47 / Each

7,4,5,6
175724 218247 # TECH SHEET No Model Compatibility List $0.87 / Each

1
175725 218248 # HOOD DECAL No Model Compatibility List $17.69 / Each

7,9,3
175727 218249 # LITERATURE PACKET No Model Compatibility List $63.11 / Each

4,5,6
175726 218250 . USER-S MANUAL No Model Compatibility List $6.23 / Each

1
175728 218251 . LATCH No Model Compatibility List $12.91 / Each

1

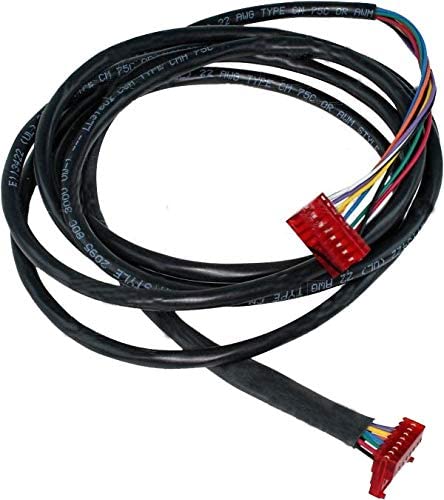

CONSOLE WIRE HARNESS 102265 218362 26 CONSOLE WIRE HARNESS Yes Model Compatibility List $30.17 / Each

4,5,6,7
122244 219262 62 REAR ROLLER No Model Compatibility List $100.30 / Each

8

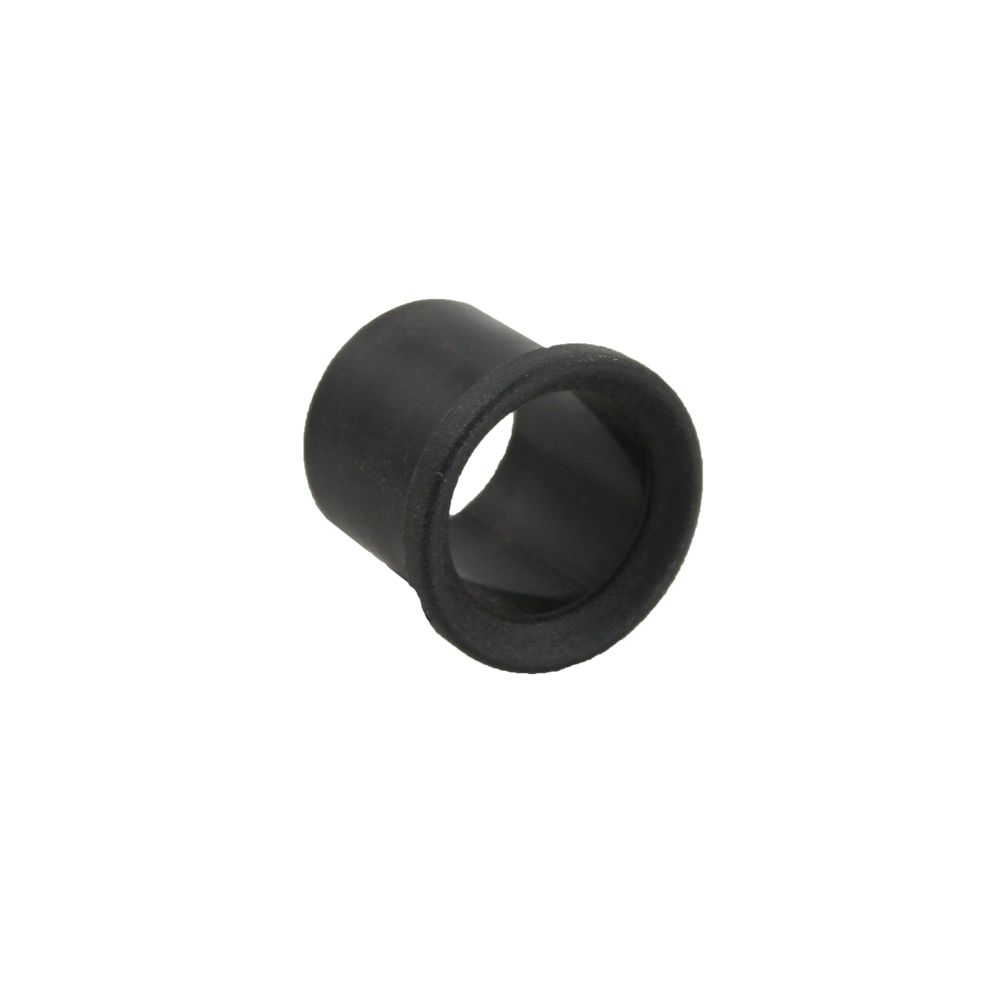

FRONT ROLLER BUSHING 102248 219550 55 FRONT ROLLER BUSHING No Model Compatibility List $2.52 / Each

1
175730 221457 . HARDWARE KIT No Model Compatibility List $18.56 / Each

1
175729 221643 . HARDWARE KIT No Model Compatibility List $16.62 / Each

1
175721 224541 82 CONSOLE No Model Compatibility List $293.06 / Each

7
100407 225209 # CD, MARATHON, INTERMEDIAT No Model Compatibility List $92.28 / Each

1
100408 225212 # CD, 5K, BEGINNER No Model Compatibility List $92.28 / Each

1
100409 225213 # CD, BODY TONE, LEVEL 3 No Model Compatibility List $53.92 / Each

1
100410 225214 # CD, 10K, INTERMEDIATE No Model Compatibility List $92.28 / Each

1
UPRIGHT WIRE HARNESS 137248 225606 98 UPRIGHT WIRE HARNESS Yes Model Compatibility List $64.62 / Each

3,4,5,6
175715 226072 49 BASE No Model Compatibility List $2.43 / Each

3
175716 226073 52 WALKING BOARD No Model Compatibility List $140.99 / Each

15
175723 226075 96 IDLER ASSEMBLY No Model Compatibility List $53.75 / Each
Out Of Stock 		8
IDLER ARM SPRING 100232 227298 102 IDLER ARM SPRING Yes Model Compatibility List $5.74 / Each

2,3,8
127842 227793 # FIX KIT REAR ROLLER ADJ No Model Compatibility List $19.34 / Each

8
175717 228192 64 LEFT UPRIGHT No Model Compatibility List $148.84 / Each

3
175719 228193 69 RIGHT UPRIGHT No Model Compatibility List $148.84 / Each

3
CHEST PULSE KIT 100316 237858 # CHEST PULSE KIT No Model Compatibility List $166.63 / Each
Out Of Stock 		1
123825 238664 66 IDLER ARM No Model Compatibility List $18.57 / Each

8,3
122234 238737 30 ELECTRONICS PLATE No Model Compatibility List $37.28 / Each

1
117657 242812 # 3# HAND WEIGHT KIT No Model Compatibility List $111.05 / Each

3
100280 256836 60 LATCH WRNG DECAL, ENGLISH No Model Compatibility List $1.50 / Each

7,3
MOTOR BOLT 102291 259500 21 MOTOR BOLT No Model Compatibility List $3.22 / Each

2

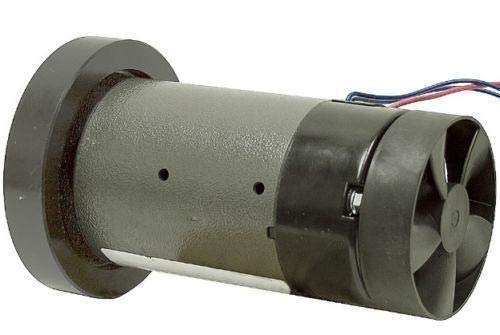

DRIVE MOTOR 102438 262782 16 DRIVE MOTOR Yes Model Compatibility List $499.77 / Each

10
Incline Motor (Used) 1001636 195290 1 1 Incline Motor (Used) No Model Compatibility List $54.99 / Each

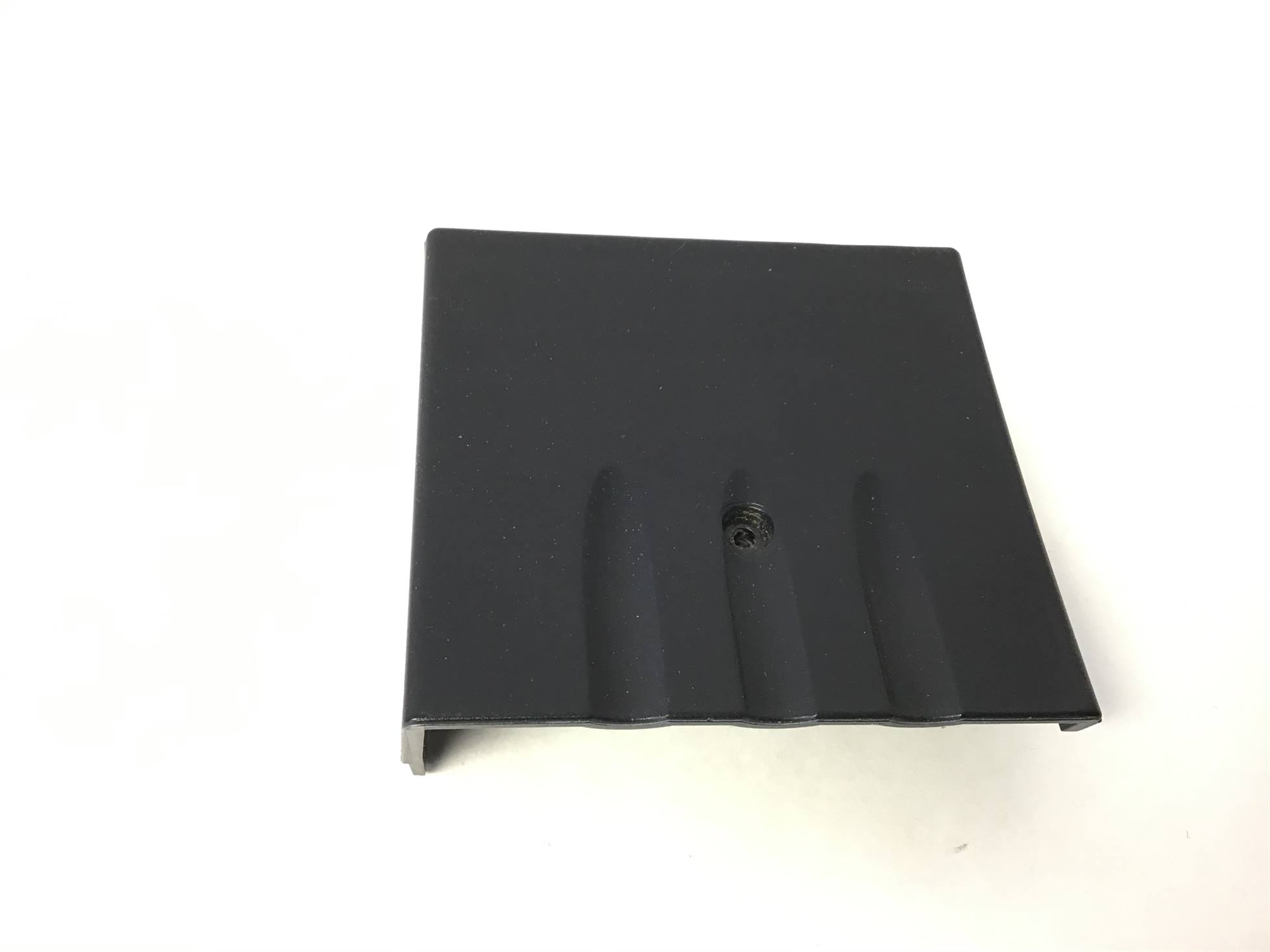

Endcap, Front, Left (Used) 1015813 187995 # 1 Endcap, Front, Left (Used) Yes Model Compatibility List $16.49 / Each

9

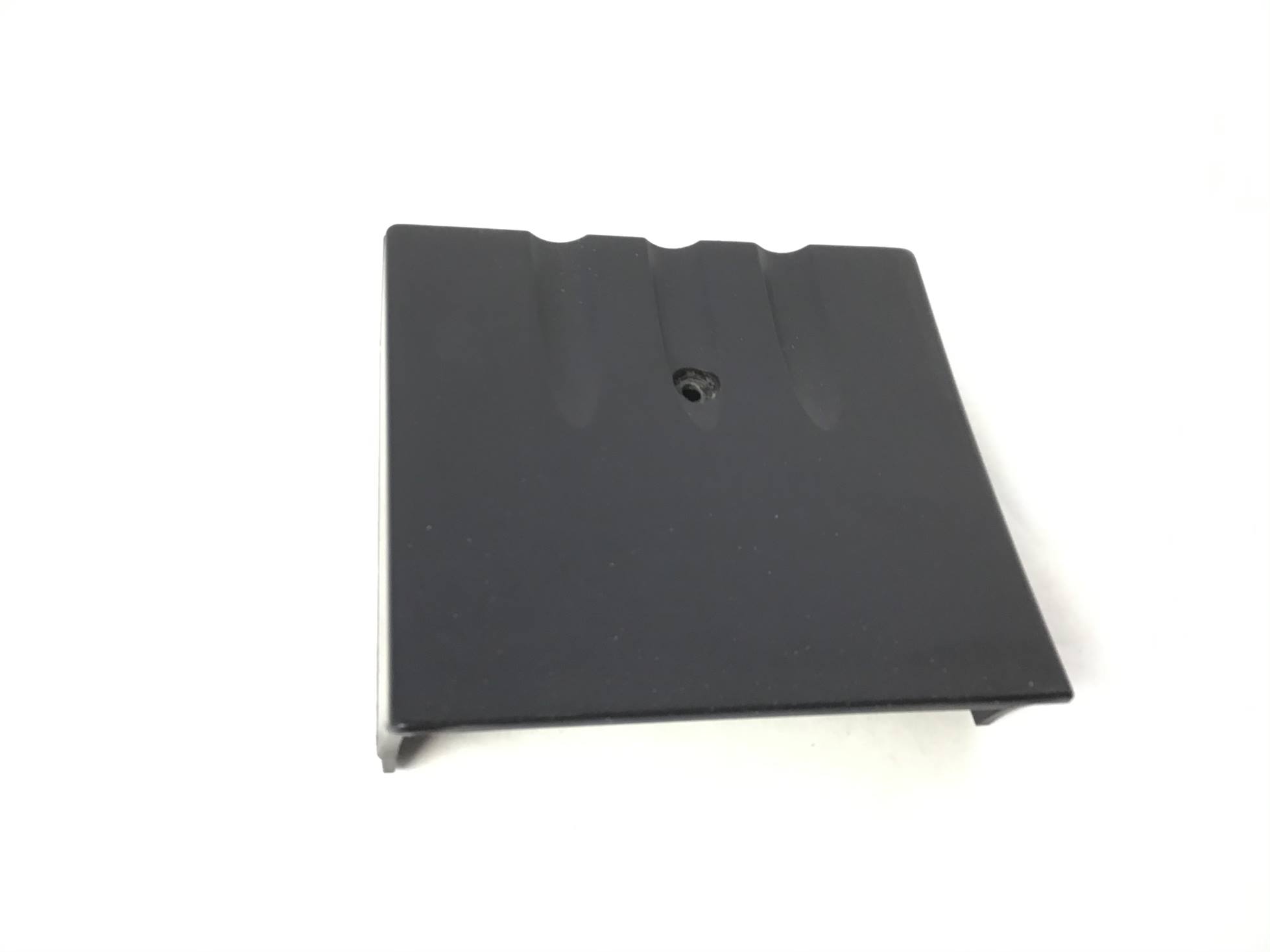

Endcap, Front, Right (Used) 1015813 187996 # 1 Endcap, Front, Right (Used) Yes Model Compatibility List $16.49 / Each

9
Front - Rear Roller Screw 1017096 072062 4 Front - Rear Roller Screw Yes Model Compatibility List $7.69 / Each

2
Fat Switch Version 000698 186726 128 1 Fat Switch Version Yes Model Compatibility List $16.42 / Each

6

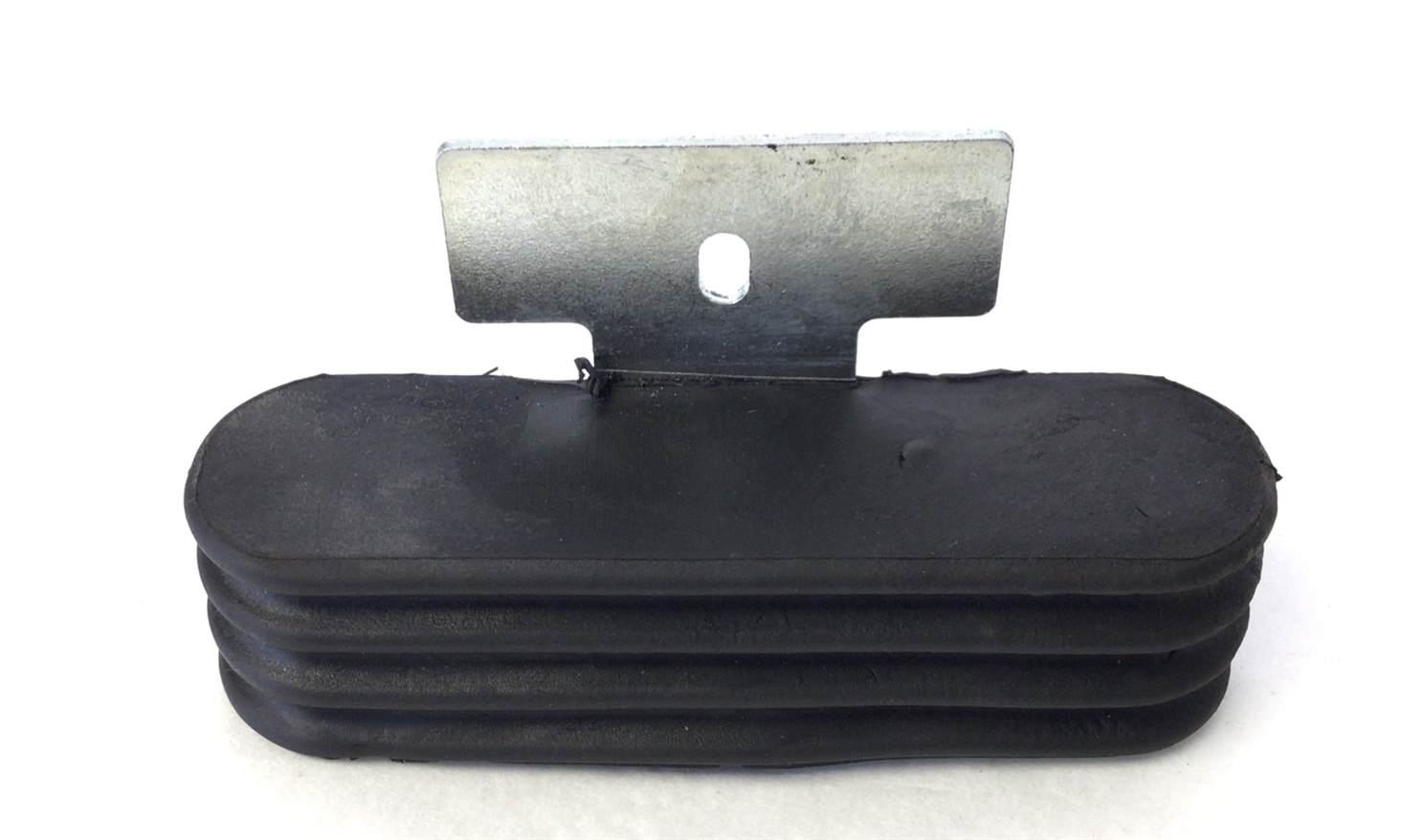

Deck Cushion (Used) 1022661 192656 63 1 Deck Cushion (Used) No Model Compatibility List $20.35 / Each

1
Foot Rear Right (Used) 1022679 198150 73 1 Foot Rear Right (Used) Yes Model Compatibility List $8.44 / Each

1
Foot Rear Left (Used) 1022678 198209 70 1 Foot Rear Left (Used) Yes Model Compatibility List $8.44 / Each
Out Of Stock 		1
Book Rack Console (Used) 1023501 142583 50 1 Book Rack Console (Used) No Model Compatibility List $5.51 / Each

1

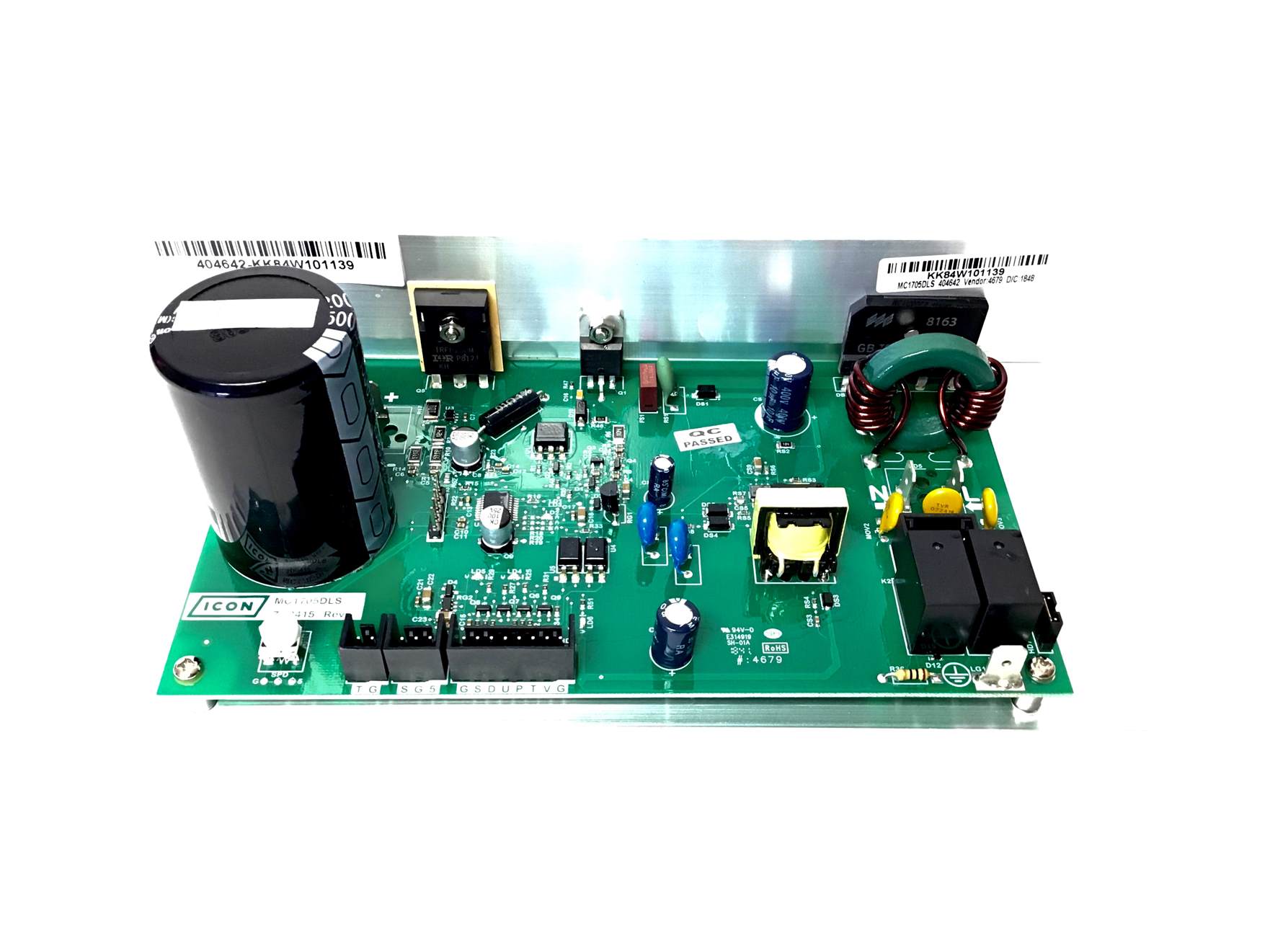

Epic Weider ProForm Icon Treadmill Lower Motor Control Board Controller 408937 1013243 T1000-LMCBC 0 4 Epic Weider ProForm Icon Treadmill Lower Motor Control Board Controller 408937 No Model Compatibility List $180.99 / Each

1
Filter Wire Harness 013027 189813 # 1 Filter Wire Harness Yes Model Compatibility List $19.45 / Each

1,4
Console Ground Wire Harness 013204 155623 TB14 1 Console Ground Wire Harness Yes Model Compatibility List $2.75 / Each

1
Self Drilling Cover Screw 013268 013300 123 1 Self Drilling Cover Screw Yes Model Compatibility List $15.59 / Each

Bolt 3/8 013272 013547 0 1 Bolt 3/8" X 1" No Model Compatibility List $12.99 / Each

Idler Arm Washer 013273 014132 0 1 Idler Arm Washer No Model Compatibility List $14.99 / Each

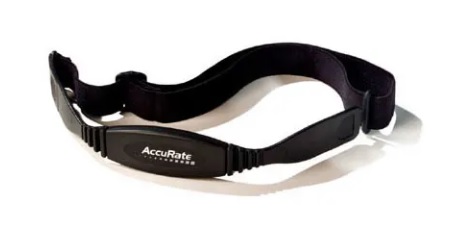

Heart Rate Monitor 013306 237858 0 1 Heart Rate Monitor No Model Compatibility List $158.99 / Each
Out Of Stock 		1
Front Roller Bush 013310 219550 0 1 Front Roller Bush No Model Compatibility List $12.99 / Each

1
Rear Roller Adjustment Bolt 013316 105444 0 1 Rear Roller Adjustment Bolt Yes Model Compatibility List $12.99 / Each

1
Releasable Tie 013322 116926 78 1 Releasable Tie No Model Compatibility List $0.25 / Each

1,4,2
Flat Tie Holder Clamp 013323 116927 0 1 Flat Tie Holder Clamp No Model Compatibility List $11.99 / Each

1
RPM Sensor Clamp 013329 216626 0 1 RPM Sensor Clamp No Model Compatibility List $12.99 / Each

1
Motor Bolt 013347 175162 0 1 Motor Bolt No Model Compatibility List $13.99 / Each

1
Round Grommet 013356 129004 76 1 Round Grommet No Model Compatibility List $1.44 / Each

1
1 013360 136121 19 1 Rear Roller Star Washer No Model Compatibility List $15.59 / Each

1
Front Roller Adjustment Screw 013365 165220 0 1 Front Roller Adjustment Screw No Model Compatibility List $12.99 / Each

1
Top Incline Motor Bolt 013369 159986 15 1 Top Incline Motor Bolt No Model Compatibility List $14.99 / Each

1,2
Crossbar Bolt 013374 149442 0 1 Crossbar Bolt No Model Compatibility List $14.99 / Each

1
Idler Arm Spring (Used) 013743 158731 0 1 Idler Arm Spring (Used) No Model Compatibility List $22.09 / Each

1
Belt Adjustment Tool 013752 128457 # 1 Belt Adjustment Tool No Model Compatibility List $18.74 / Each

1
Belt Drive 1002847 198595 0 1 Belt Drive Yes Model Compatibility List $29.99 / Each

23
Power Cord 1002864 31229 78A 1 Power Cord No Model Compatibility List $36.95 / Each

6
#8 X 3/4 1004394 013322 0 1 #8 X 3/4" Foot Pedal Screw No Model Compatibility List $5.99 / Each

Drive Motor 1005501 262782 0 1 Drive Motor Yes Model Compatibility List $469.99 / Each

10
Wire Harness 1006027 225606 0 1 Wire Harness Yes Model Compatibility List $72.99 / Each

3,4,5,6
Belt Guide 1008212 198639 53 1 Belt Guide Yes Model Compatibility List $4.44 / Each

15,40
Roller Front 1008226 207247 0 1 Roller Front Yes Model Compatibility List $114.85 / Each

8
Magnet 1009452 113842 137 1 Magnet Yes Model Compatibility List $1.10 / Each

8,1
Idler Pulley Nut 1010877 100427 12 1 Idler Pulley Nut Yes Model Compatibility List $0.46 / Each

2,40
Nylock Nut 1010890 119425 38 1 Nylock Nut Yes Model Compatibility List $0.55 / Each

2
Nylock Jam Nut 3/8 1011523 133945 0 1 Nylock Jam Nut 3/8" Yes Model Compatibility List $11.99 / Each

2
Leveler Foot Bumper 1011801 157600 23 1 Leveler Foot Bumper Yes Model Compatibility List $1.33 / Each

3,12,13,14,46,1

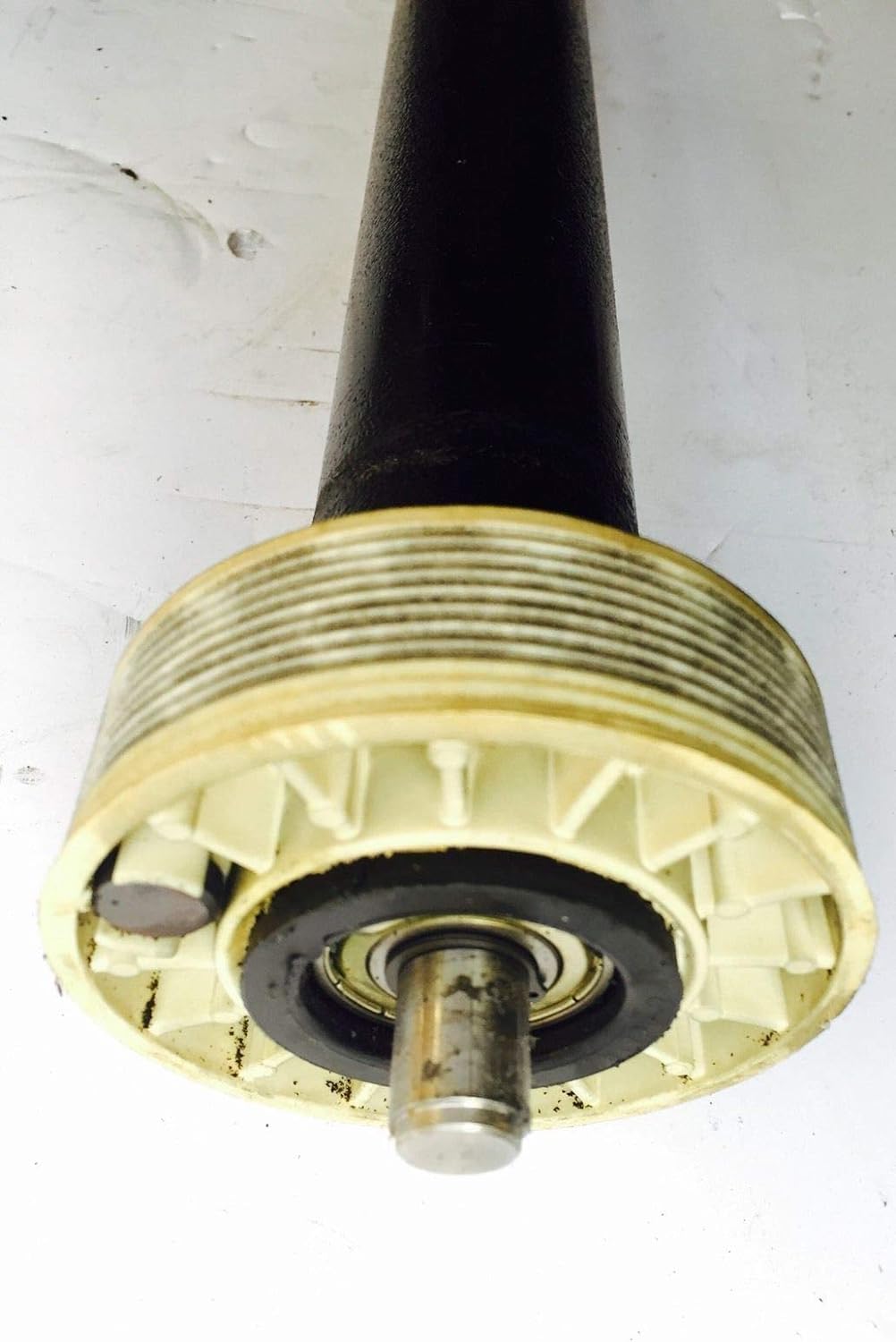

Front Drive Roller 1002193 207247 Front Drive Roller Yes Model Compatibility List $69.00 / Each

8
Motor Drive Belt 1002845 198595 Motor Drive Belt Yes Model Compatibility List $19.99 / Each

23
Power Supply Line Cord 1002865 31229 78A Power Supply Line Cord Yes Model Compatibility List $36.95 / Each

6

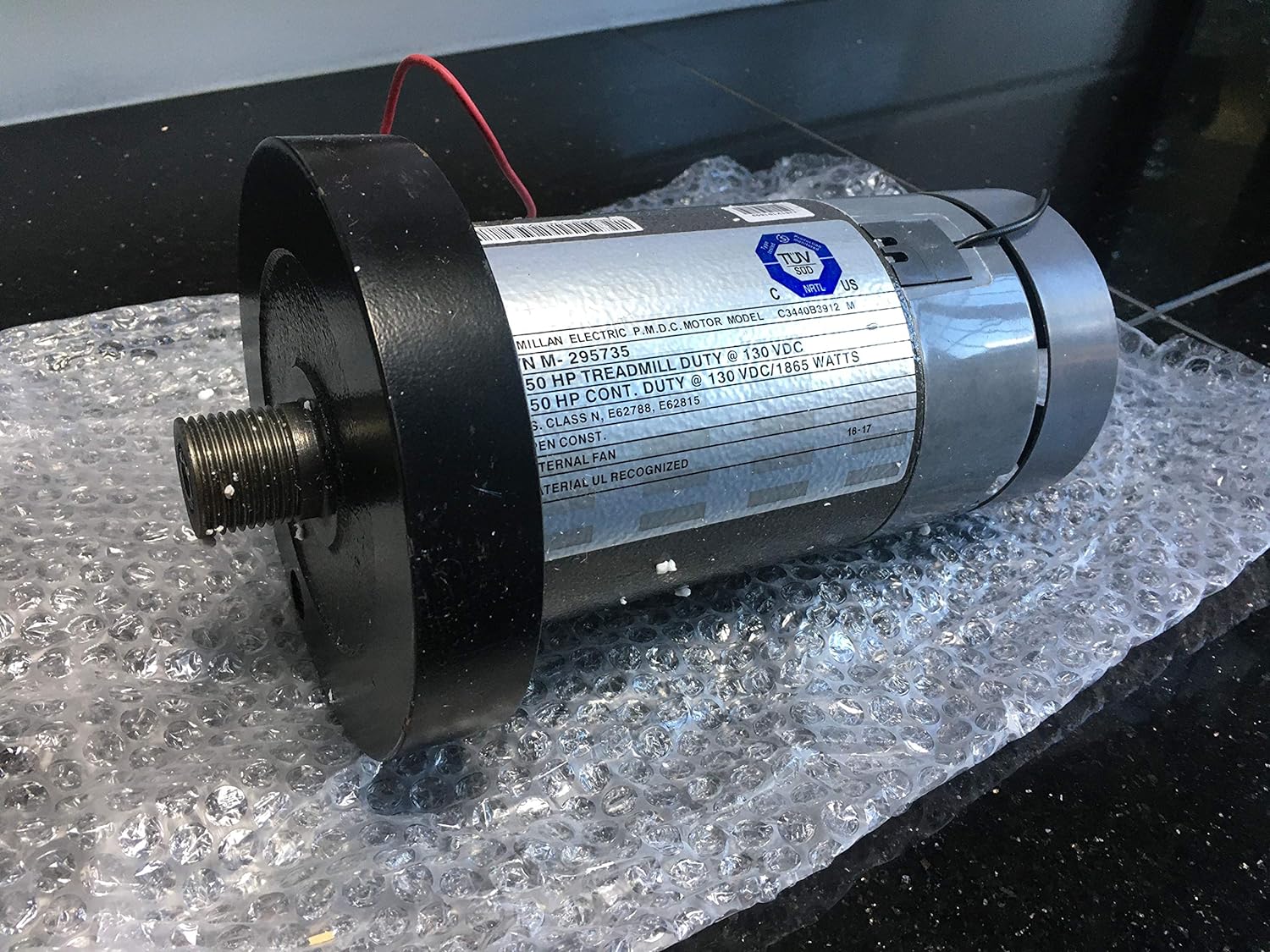

Dc Drive Motor 1002280 262782 Dc Drive Motor Yes Model Compatibility List $420.00 / Each
Out Of Stock 		10

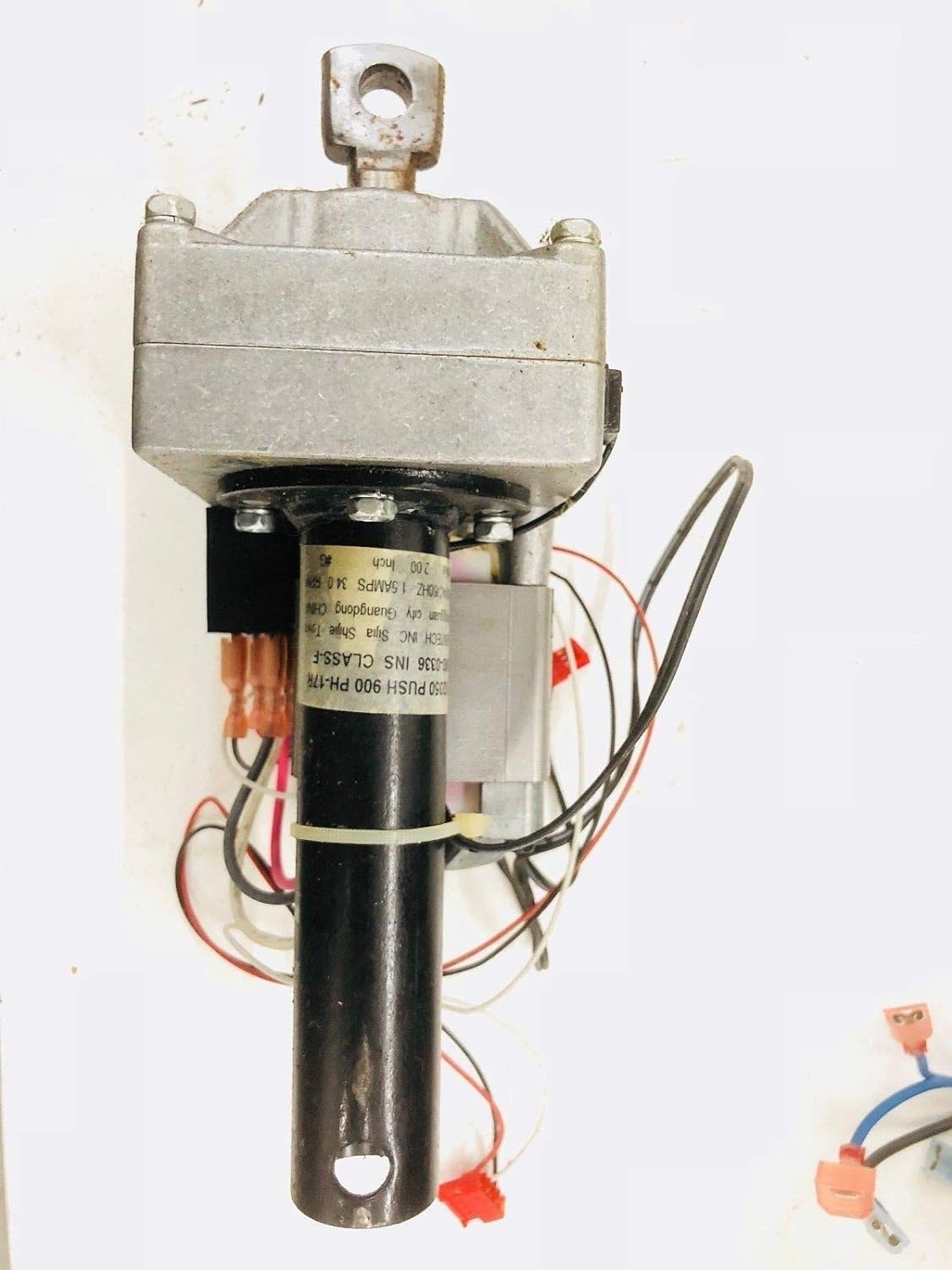

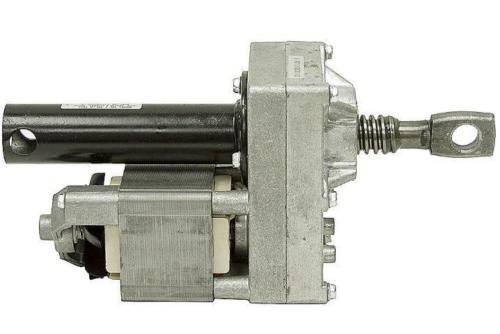

Incline Elevation Motor 1003008 192350 or 195290 Incline Elevation Motor Yes Model Compatibility List $79.99 / Each

Leveler Foot Bumper 1004632 157600 Leveler Foot Bumper Yes Model Compatibility List $11.99 / Each

3,12,13,14,46,1
Frame pivot spacer 1036883 158693 Frame pivot spacer Yes Model Compatibility List $9.99 / Each

3,9
View Drawing

general Info

Customer Service

About us

Address

6114 Madison Ct.
Morton Grove, IL 60053
847-309-2818

Hydra Fitness Exchange © 2025. All Rights Reserved.

Payment options
