NordicTrack® - E 11.5

Repair Parts for NordicTrack® E 11.5 NTEVEL909121

Brand: NordicTrack®

Category: Residential Ellipticals

Type: Elliptical

Model Name: E 11.5

Exploded Diagrams

Other Languages Available

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry [email protected]

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
LUBE, GREASE 100396 104838 # LUBE, GREASE No Model Compatibility List $6.19 / Each

1,15
POWER RECEPTICLE 100651 109231 116 POWER RECEPTICLE Yes Model Compatibility List $13.59 / Each

4,5,6
ROLLER MAGNET 100081 113842 75 ROLLER MAGNET Yes Model Compatibility List $1.10 / Each

8,1
100186 116566 # 15 1/2" CABLE TIE No Model Compatibility List $0.76 / Each

2,4,5,6,1
RELEASABLE WIRE TIE 100064 116926 # RELEASABLE WIRE TIE No Model Compatibility List $0.25 / Each

1,4,2
4MM ALLEN WRENCH 100086 119894 # 4MM ALLEN WRENCH No Model Compatibility List $1.58 / Each

2,1
LARGE STANDOFF 101014 125819 123 LARGE STANDOFF Yes Model Compatibility List $2.35 / Each

2,1
#8 X 1 3/4 102450 128263 88 #8 X 1 3/4" SCREW No Model Compatibility List $2.54 / Each

1,2

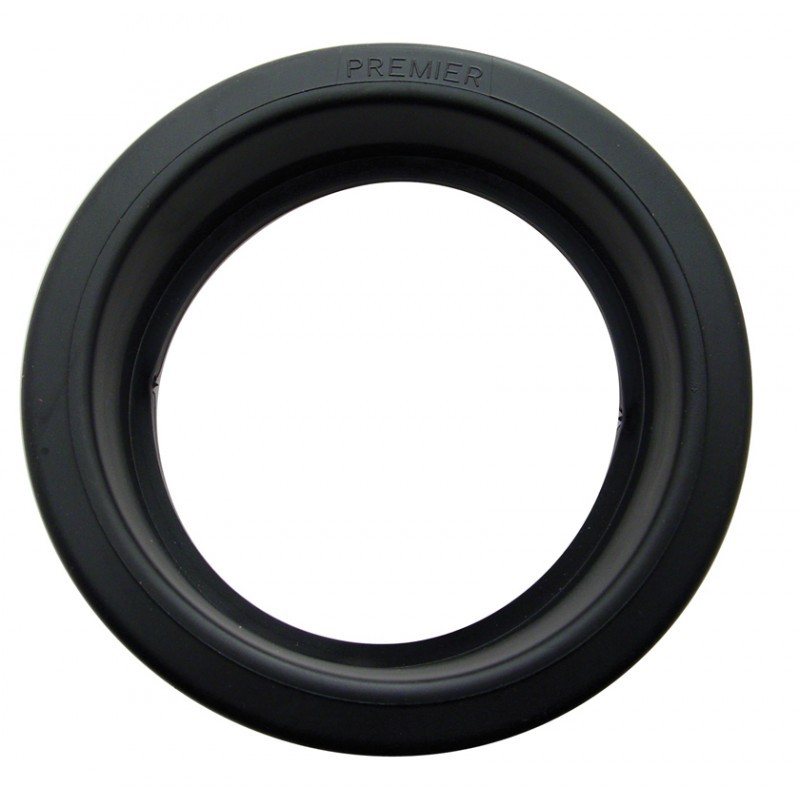

ROUND GROMMET 101035 129004 # ROUND GROMMET No Model Compatibility List $1.44 / Each

1
100083 130424 # 4" BLACK WIRE,F/F, POWER No Model Compatibility List $3.49 / Each

4,5,6
RSW CLAMP 100079 131090 70 RSW CLAMP Yes Model Compatibility List $0.46 / Each

4,5,6,2,1,47
M4 X 13MM SCREW 101030 013162 106A M4 X 13MM SCREW Yes Model Compatibility List $1.26 / Each

103887 131818 # 8" BLUE WIRE, 2F No Model Compatibility List $4.03 / Each

4,5,6
1/2 100258 013423 106B 1/2" TAP SCREW No Model Compatibility List $1.24 / Each

113392 136346 # 10" WHITE WIRE,F/F No Model Compatibility List $4.31 / Each

4,5,6
BEARING 100657 139703 76 BEARING Yes Model Compatibility List $24.46 / Each

1
100828 140069 # SNAP RING PLIERS, 1" EXT No Model Compatibility List $143.47 / Each

2,1
M10 FLAT WASHER 100027 140206 108 M10 FLAT WASHER No Model Compatibility List $1.33 / Each

2
M8 SPLIT WASHER 100665 014174 103 M8 SPLIT WASHER No Model Compatibility List $2.48 / Each

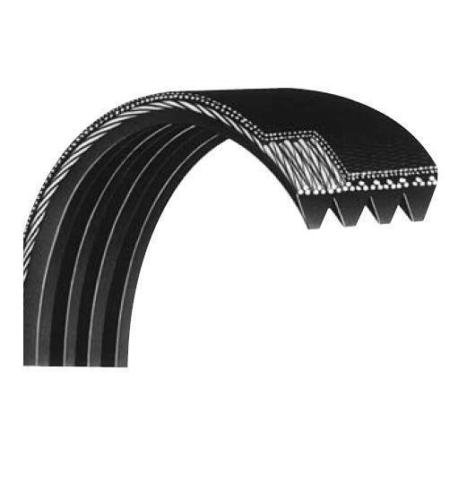

BELT 101570 142056 38 BELT Yes Model Compatibility List $45.77 / Each

23
LARGE SNAP RING 100654 143742 87 LARGE SNAP RING Yes Model Compatibility List $1.84 / Each

1
FLOOR MAT 36X72 100097 146119 # FLOOR MAT 36X72" No Model Compatibility List $42.90 / Each

1
M10 LOCKNUT 100540 148710 126 M10 LOCKNUT No Model Compatibility List $1.57 / Each

2
109111 156273 104 LIFT ARM SNAP RING No Model Compatibility List $0.55 / Each

2,3,10
8 100063 016057 # 8" CABLE TIE No Model Compatibility List $1.30 / Each

100602 166909 # PAD FRAME WARNING DECAL No Model Compatibility List $1.84 / Each

7,3,12,13,14,1
M4 X 12MM SCREW 101004 168267 89 M4 X 12MM SCREW Yes Model Compatibility List $0.22 / Each

2,1
109115 173773 59 RECEIVER EXTENSION WIRE Yes Model Compatibility List $20.42 / Each

4,5,6
M4 X 16MM SCREW 106040 184369 81 M4 X 16MM SCREW No Model Compatibility List $0.47 / Each

2

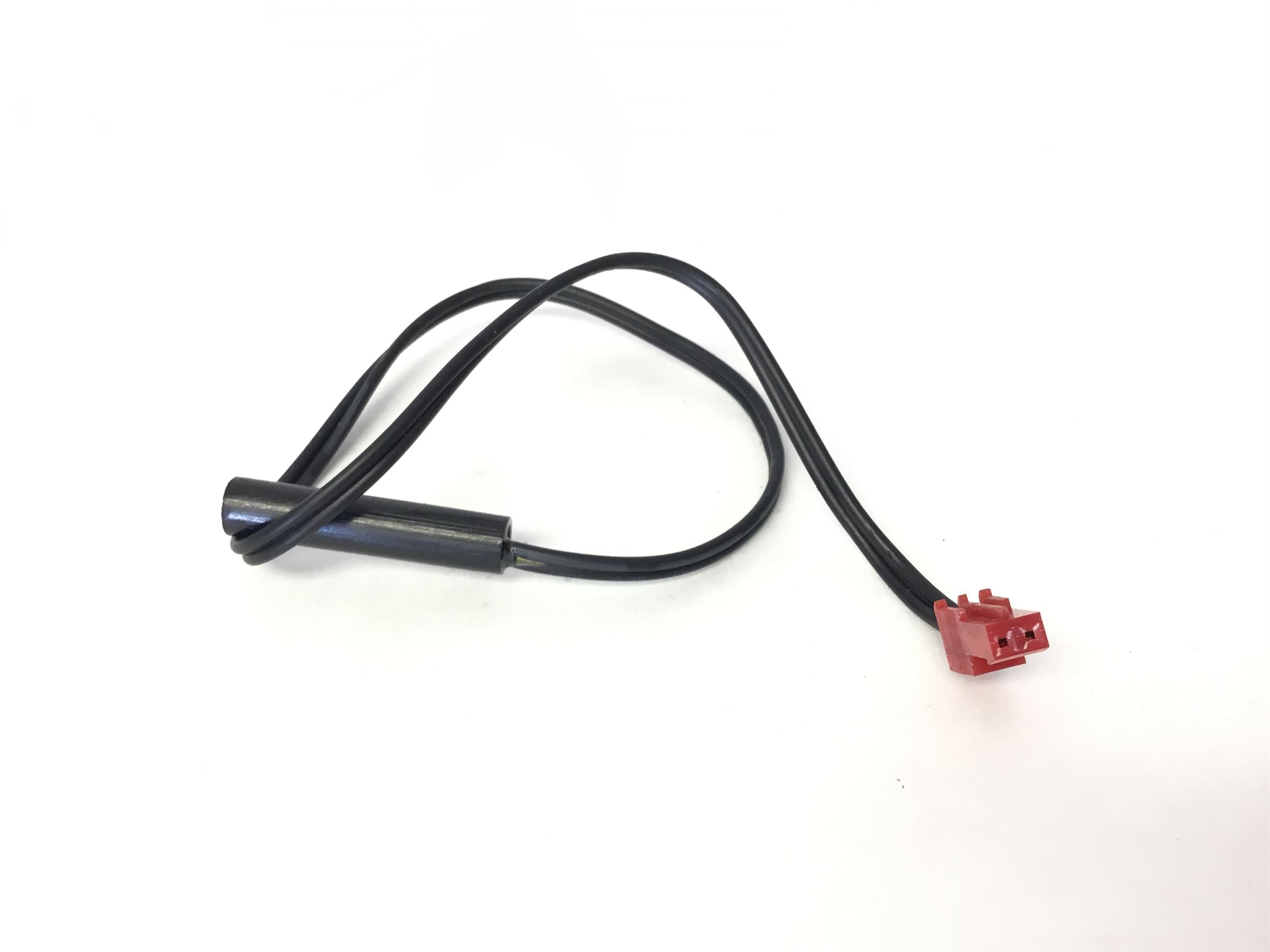

REED SWITCH/WIRE 100953 186070 69 REED SWITCH/WIRE Yes Model Compatibility List $27.83 / Each

47

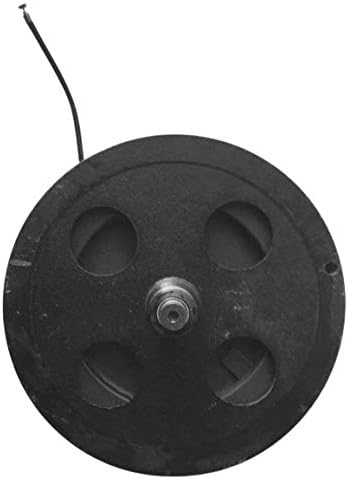

RESISTANCE MOTOR 100647 193223 78 RESISTANCE MOTOR Yes Model Compatibility List $106.74 / Each

28
106159 194883 139 M12 WASHER No Model Compatibility List $1.20 / Each

2
PIVOT SCREW 101001 208163 97 PIVOT SCREW Yes Model Compatibility List $1.20 / Each

2,8

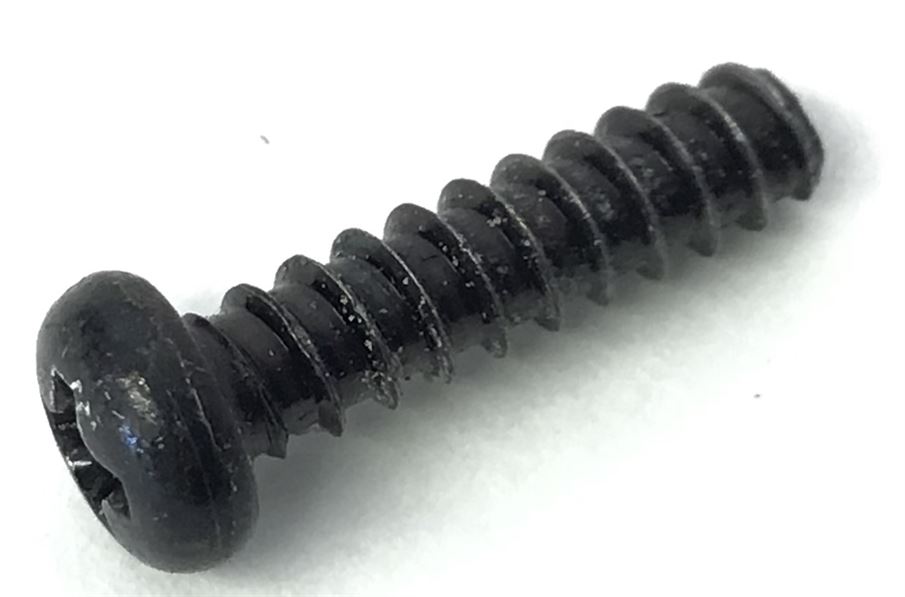

M4 X 16MM SCREW 101187 208817 112 M4 X 16MM SCREW No Model Compatibility List $0.46 / Each

2,1

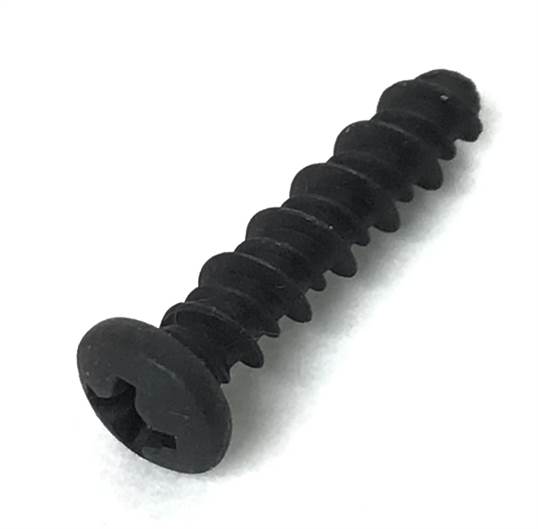

PULSE SENSOR SCREW 100474 213769 125 PULSE SENSOR SCREW No Model Compatibility List $0.22 / Each

2,12,13,14
M8 X 16MM BUTTON SCREW 100673 214070 109 M8 X 16MM BUTTON SCREW No Model Compatibility List $1.06 / Each

2
AUDIO WIRE,18 100197 215823 # AUDIO WIRE,18 Yes Model Compatibility List $8.87 / Each

4,5,6
CAM SCREW 109110 223168 121 CAM SCREW Yes Model Compatibility List $4.25 / Each

2
CRANK HUB 100743 228084 71 CRANK HUB Yes Model Compatibility List $87.85 / Each

8

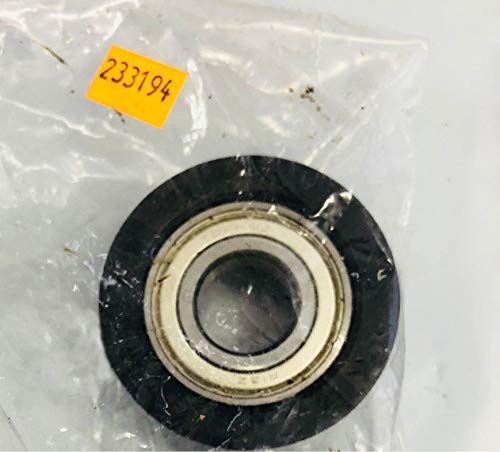

OUTER LARGE BUSHING 101152 233194 58 OUTER LARGE BUSHING No Model Compatibility List $26.62 / Each

1

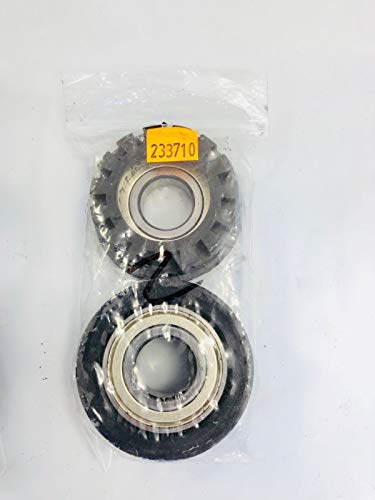

INNER LARGE BUSHING 101153 233710 47 INNER LARGE BUSHING No Model Compatibility List $23.27 / Each

1
112260 233881 # DECAL, WRNG SITE, 9 LANG No Model Compatibility List $3.34 / Each

7,3

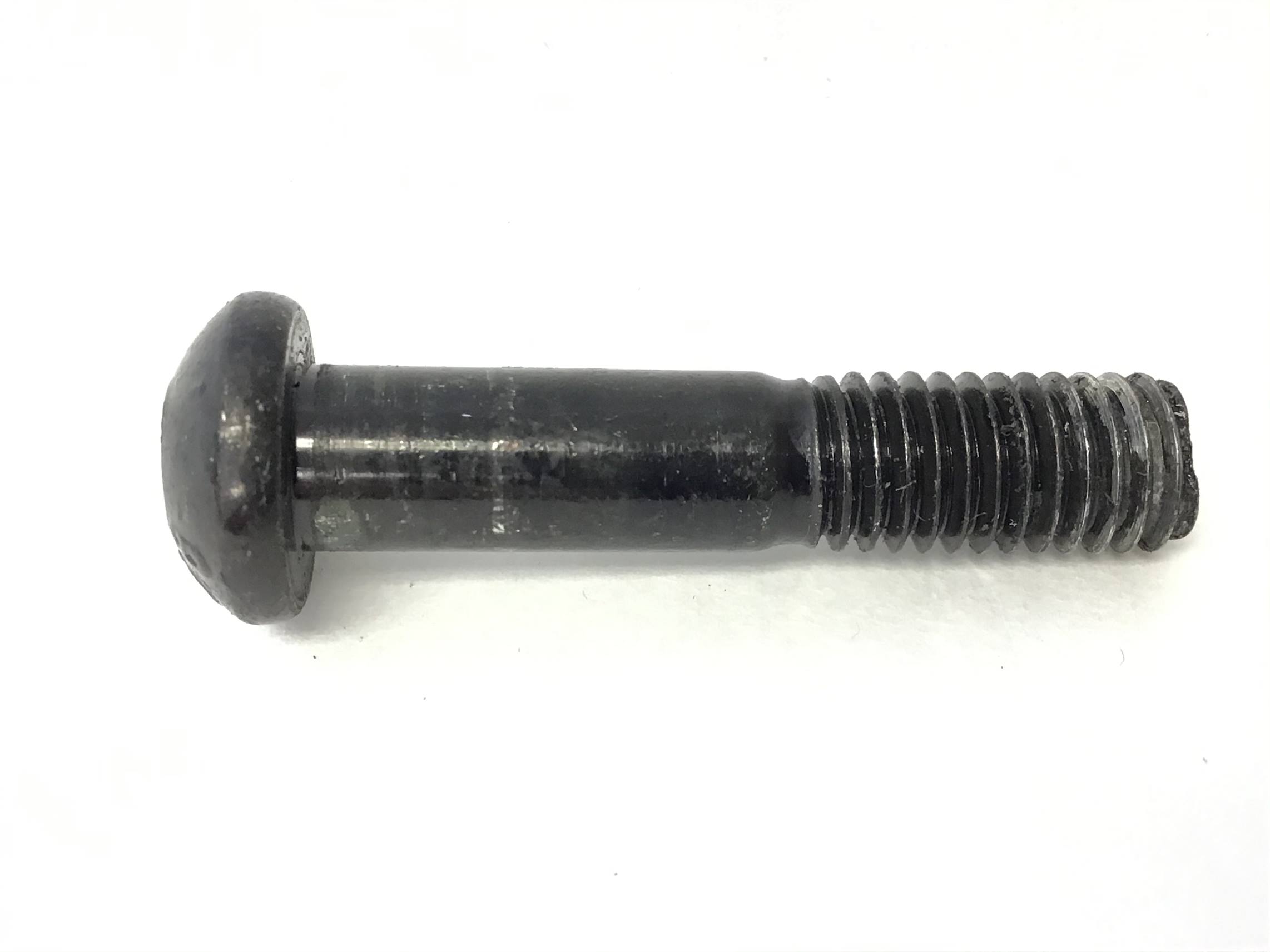

M8 X 38MM BOLT 105107 234732 150 M8 X 38MM BOLT Yes Model Compatibility List $6.66 / Each

2
M8 X 28MM SCREW 101177 237611 86 M8 X 28MM SCREW Yes Model Compatibility List $5.43 / Each

2
M8 X 16MM SCREW 100985 237612 102 M8 X 16MM SCREW No Model Compatibility List $0.96 / Each

2
RAMP BUSHING 101422 237616 90 RAMP BUSHING Yes Model Compatibility List $3.60 / Each

4,5,6,8,2
LEVELING FOOT 101146 237631 41 LEVELING FOOT Yes Model Compatibility List $6.69 / Each

9,46
100185 240351 153 ANCHORED CABLE TIE No Model Compatibility List $0.74 / Each

2,4,5,6,1
SMALL SNAP RING 101450 243375 101 SMALL SNAP RING No Model Compatibility List $2.39 / Each

2
HAND GRIP 101719 244142 35 HAND GRIP Yes Model Compatibility List $60.84 / Each

11
100819 246448 # PAD, RUBBER W/ADHESIVE No Model Compatibility List $5.27 / Each

12,13,14
LIFT CLEVIS PIN .496X1.375 101691 246931 138 LIFT CLEVIS PIN .496X1.375" Yes Model Compatibility List $10.95 / Each

10,12,13,14
LIFT AXLE BUSHING 101697 246935 45 LIFT AXLE BUSHING Yes Model Compatibility List $15.26 / Each

1
LIFT BRACKET 101715 247036 44 LIFT BRACKET Yes Model Compatibility List $7.14 / Each

3,10
LATCH BRACKET SPRING 101165 247275 66 LATCH BRACKET SPRING Yes Model Compatibility List $5.58 / Each

3
101731 247921 140 LIFT MOTOR SPACER No Model Compatibility List $2.65 / Each

2,3,4,5,6,10

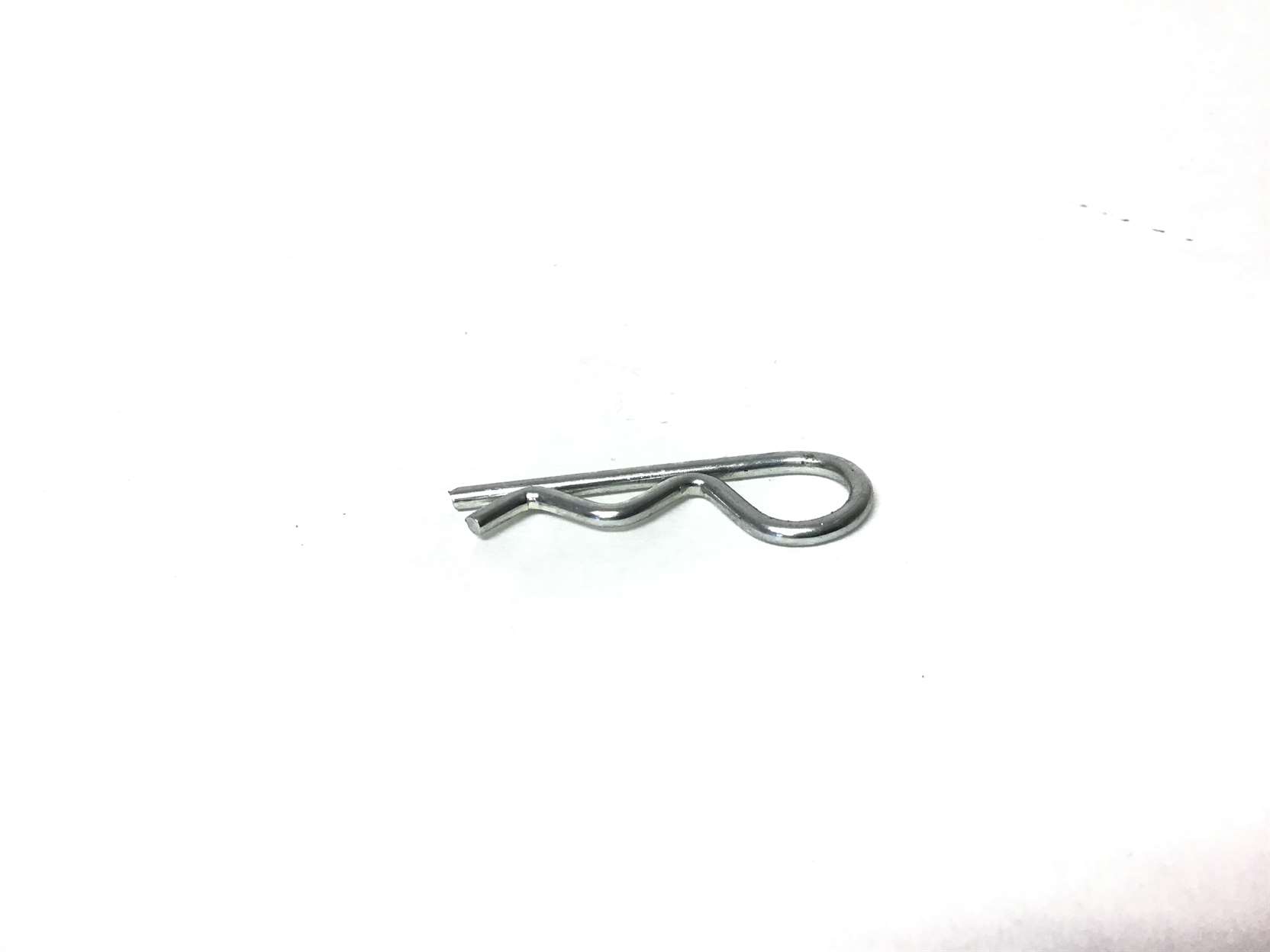

HAIRPIN COTTER PIN 101409 250210 40 HAIRPIN COTTER PIN No Model Compatibility List $1.29 / Each

12,13,14

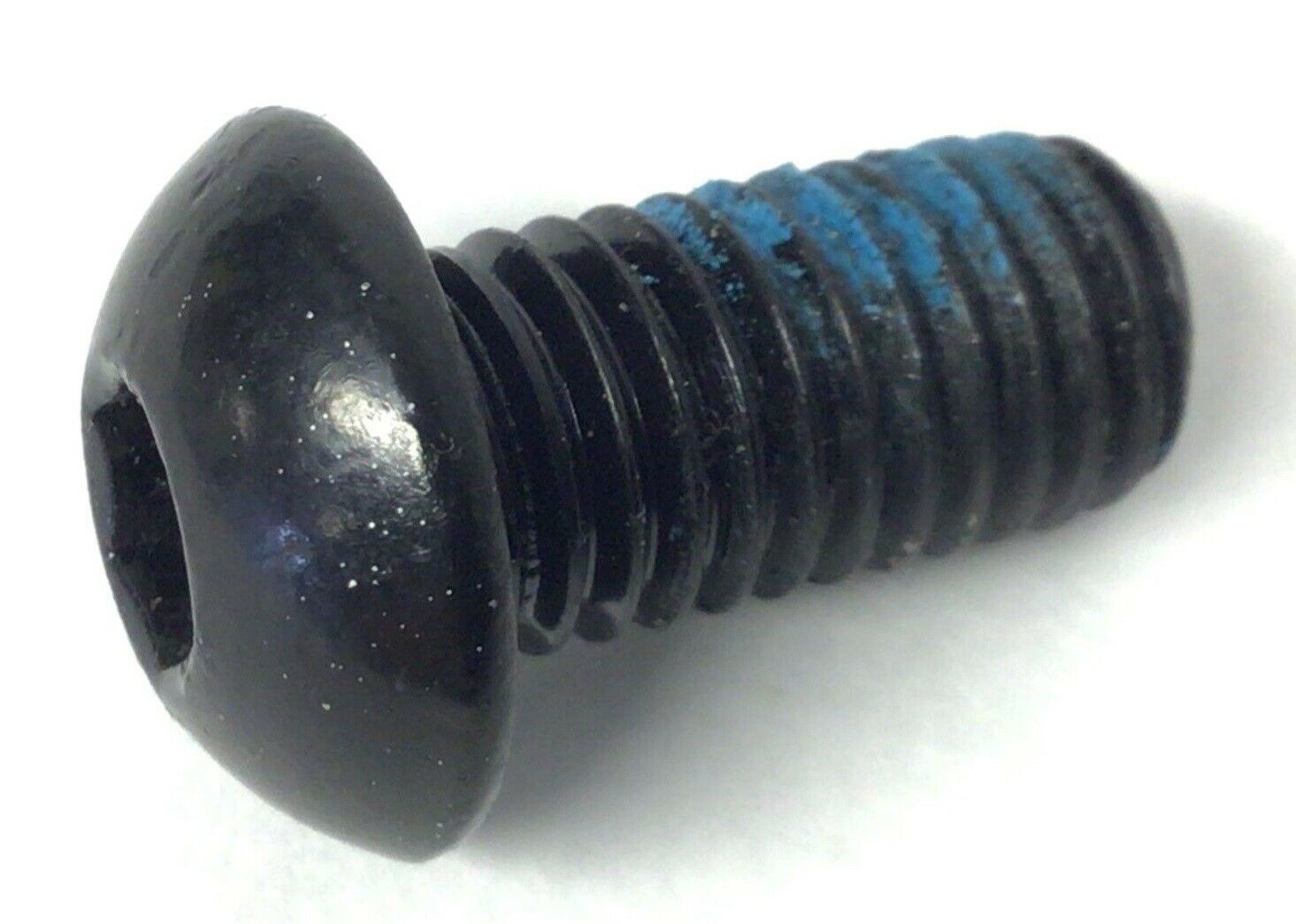

M10-1.5 X 20MM SCREW 100524 250420 107 M10-1.5 X 20MM SCREW No Model Compatibility List $2.09 / Each

2
100060 250627 115 POWER SWITCH No Model Compatibility List $11.90 / Each

4,5,6,1
102005 250957 55 M4 X 15MM FLAT HEAD SCREW No Model Compatibility List $0.28 / Each

2
108715 251511 149 M8 X 35MM PATCH SCREW No Model Compatibility List $2.55 / Each

2
M10 X 95MM SCREW 101184 252438 100 M10 X 95MM SCREW Yes Model Compatibility List $14.70 / Each

2
LARGE PULLEY 101170 255072 74 LARGE PULLEY Yes Model Compatibility List $77.97 / Each

37
100490 255997 148 8" GREEN WIRE, F/RING No Model Compatibility List $24.25 / Each

4,5,6
M8 NUT 100030 256446 151 M8 NUT No Model Compatibility List $0.69 / Each

2
101722 259772 141 M12 X 25MM BUTTON SCREW No Model Compatibility List $2.71 / Each

2
M8 X 25MM WASHER 101053 261150 95 M8 X 25MM WASHER Yes Model Compatibility List $2.64 / Each

2
M6 X 12MM SCREW 101189 262341 146 M6 X 12MM SCREW Yes Model Compatibility List $2.64 / Each

2,45
RIGHT PULSE WIRE 101459 272391 105A RIGHT PULSE WIRE Yes Model Compatibility List $14.98 / Each

4,5,6,12,13,14
LEFT PULSE WIRE 101460 272392 105B LEFT PULSE WIRE Yes Model Compatibility List $14.98 / Each

4,5,6,12,13,14

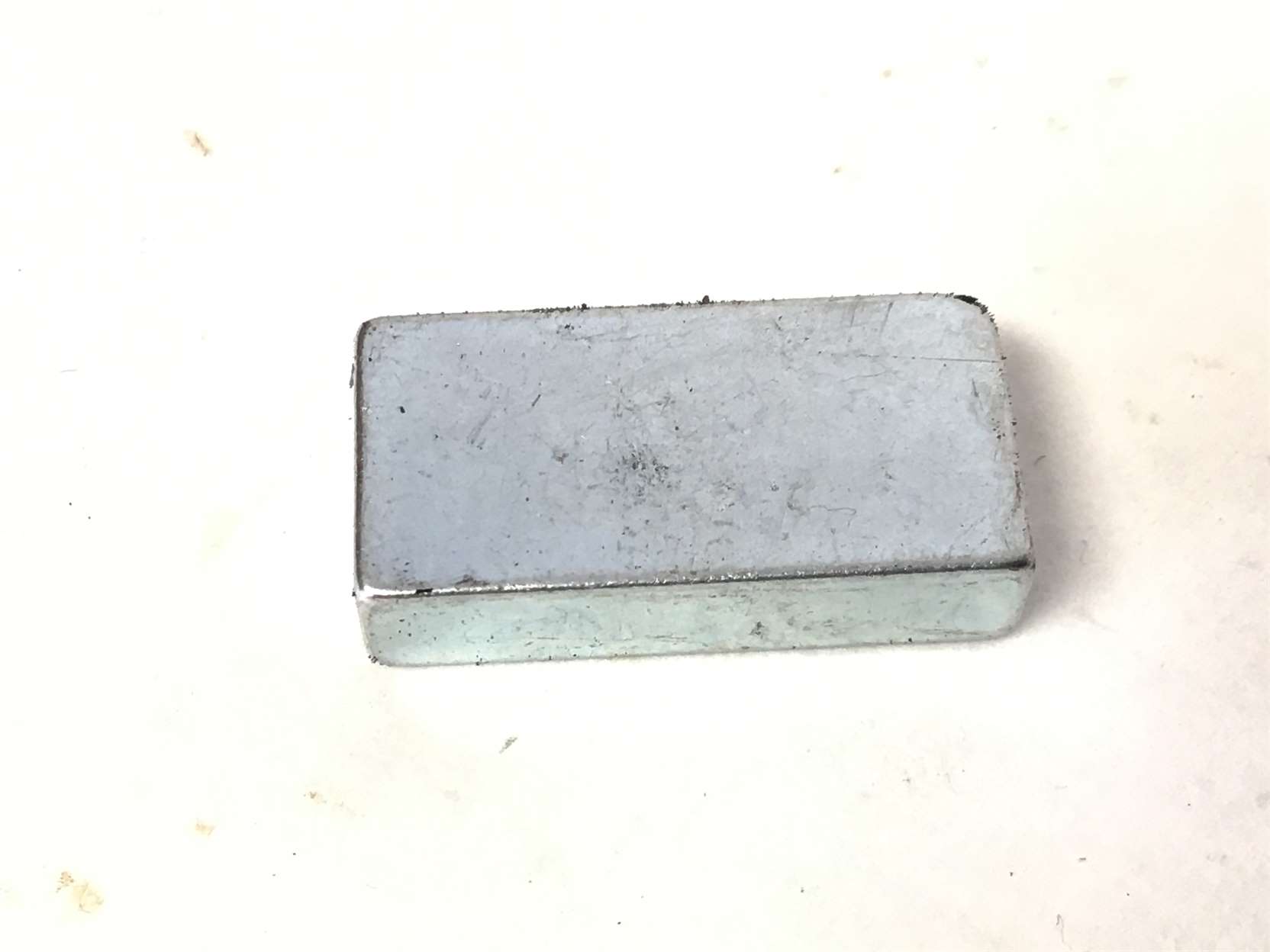

MAGNET ONLY 101136 279656 31 MAGNET ONLY Yes Model Compatibility List $70.36 / Each

8
BELT ADJUSTMENT SCREW 101436 281149 85 BELT ADJUSTMENT SCREW Yes Model Compatibility List $4.87 / Each

2,15
IDLER SCREW 101010 281150 99 IDLER SCREW Yes Model Compatibility List $3.36 / Each

2,8
121057 282434 # DECAL, GENERAL WARNING No Model Compatibility List $3.11 / Each

7,3
132381 282435 # DECAL, GEN WRNG, 9-LANG No Model Compatibility List $3.02 / Each

7,3
CRANK SCREW 100776 283582 122 CRANK SCREW No Model Compatibility List $47.61 / Each

2,8

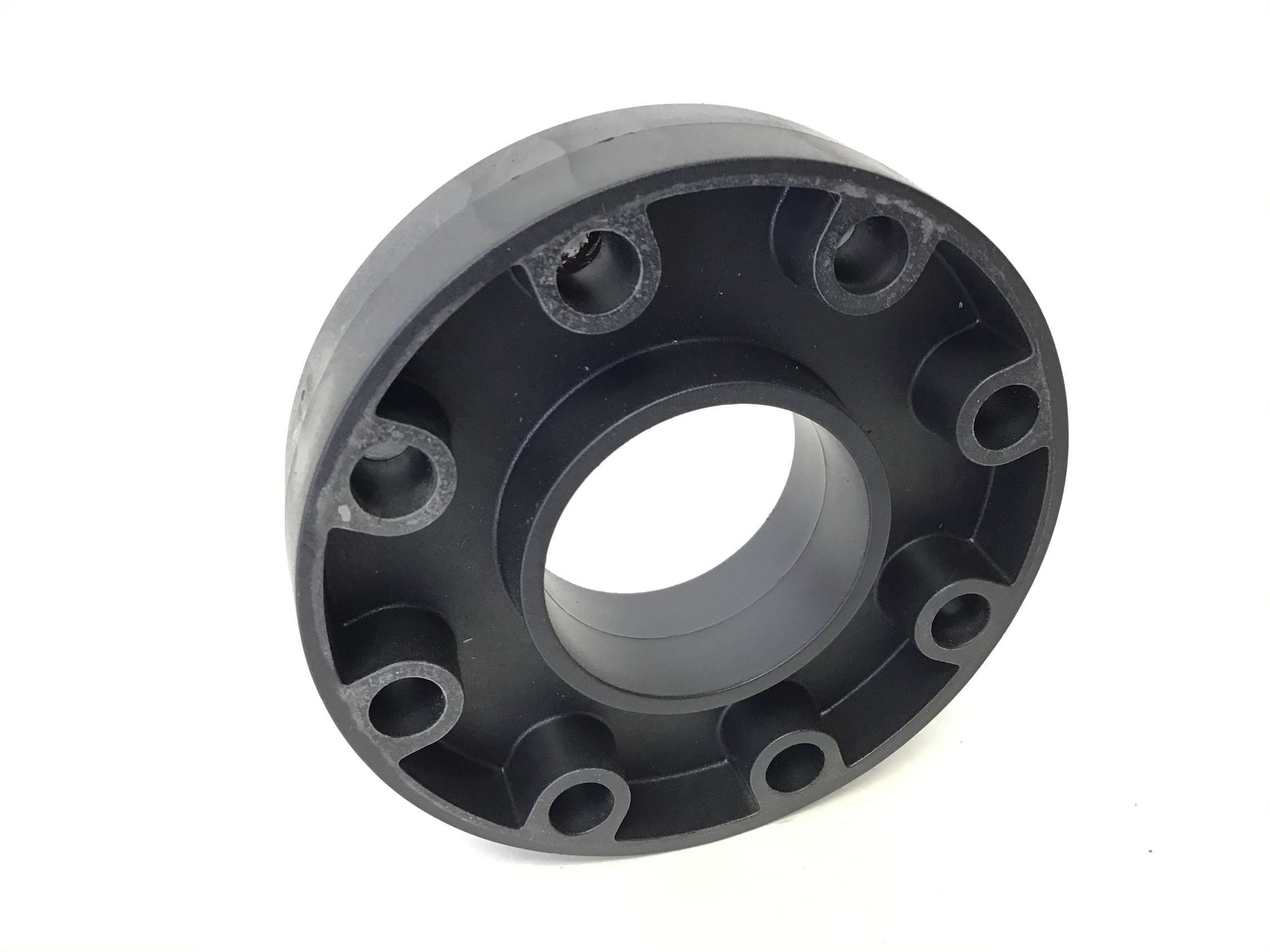

CRANK SPACER 108699 283736 73 CRANK SPACER Yes Model Compatibility List $19.17 / Each

2,3,4,5,6,8

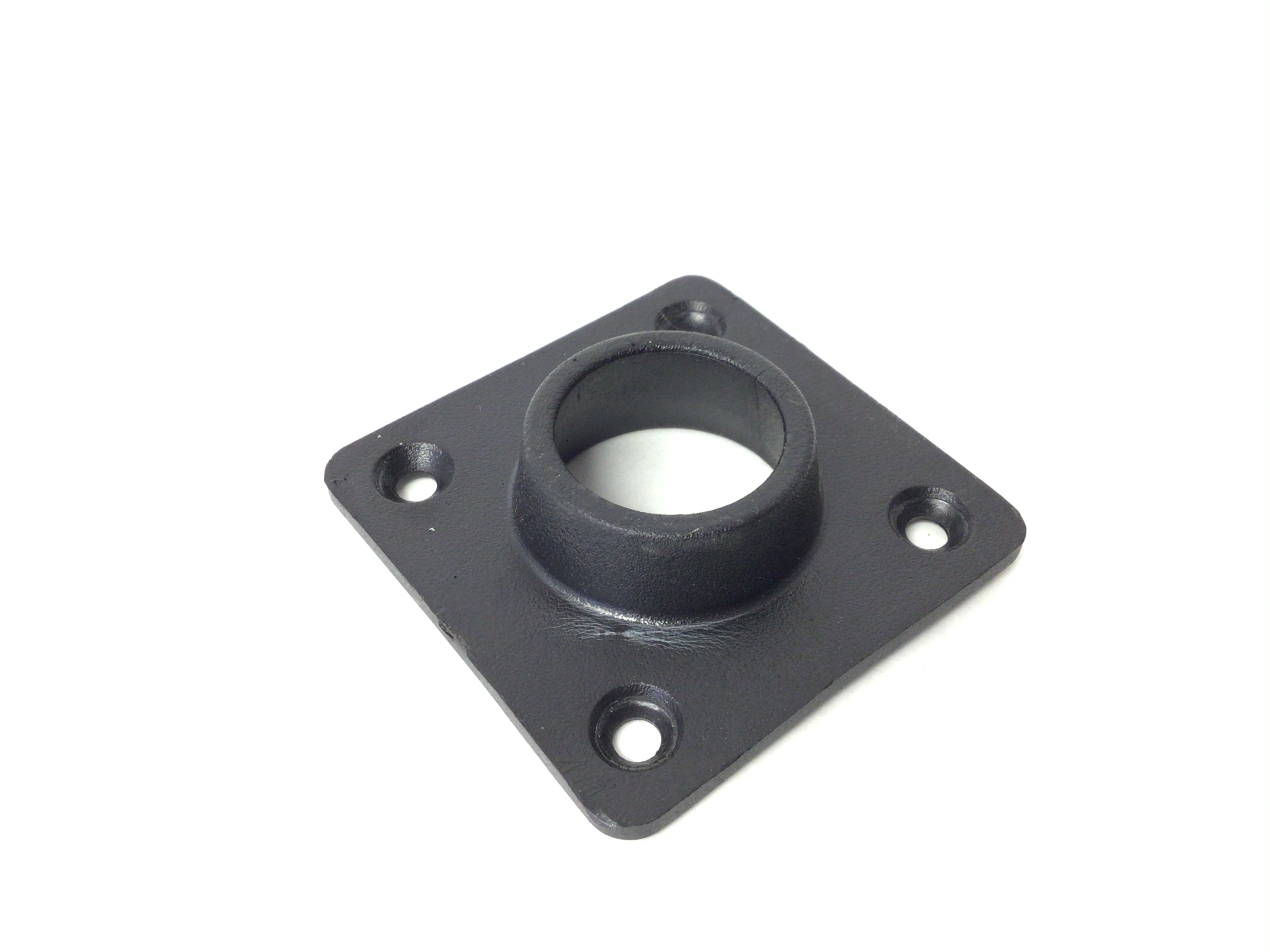

BUTTON HOUSING 108698 284207 68 BUTTON HOUSING Yes Model Compatibility List $5.63 / Each
9
108696 285256 65 LATCH BRACKET AXLE No Model Compatibility List $12.78 / Each

2,8,3,4,5,6
101959 285511 # OPTIONAL CHEST PULSE No Model Compatibility List $194.04 / Each

12,13,14
RAMP ROLLER 101200 286400 136 RAMP ROLLER Yes Model Compatibility List $8.36 / Each

4,5,6,8
LINK ARM AXLE 101191 286526 114 LINK ARM AXLE Yes Model Compatibility List $20.35 / Each

3,8
MOUNT 101022 286527 29A MOUNT Yes Model Compatibility List $1.91 / Each

2,1
PEDAL ARM ROLLER 101138 286547 32 PEDAL ARM ROLLER Yes Model Compatibility List $64.50 / Each

1
LARGE AXLE COVER 101190 286660 113 LARGE AXLE COVER Yes Model Compatibility List $7.72 / Each

8,9

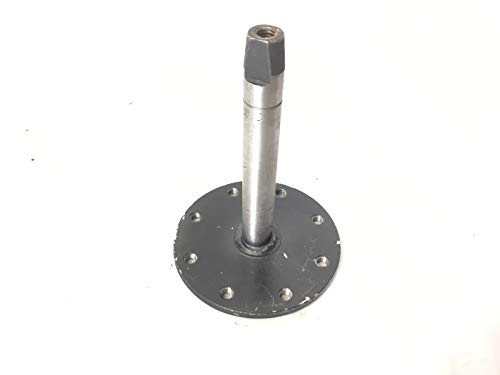

CRANK 101168 287117 72 CRANK Yes Model Compatibility List $83.85 / Each
Out Of Stock 		8
SMALL AXLE COVER 101157 287135 56 SMALL AXLE COVER Yes Model Compatibility List $3.26 / Each

8,9
WAVE WASHER 101005 287202 118 WAVE WASHER No Model Compatibility List $2.54 / Each

2,4,5,6
108660 289361 9 LEFT UPPER BODY ARM No Model Compatibility List $97.67 / Each

3
108659 289367 8 RIGHT UPPER BODY ARM No Model Compatibility List $102.67 / Each

3
LEFT LINK ARM 108712 289373 144 LEFT LINK ARM Yes Model Compatibility List $60.46 / Each
3
RIGHT LINK ARM 108687 289374 43 RIGHT LINK ARM Yes Model Compatibility List $47.55 / Each

3
108662 289388 11 LEFT HANDLEBAR No Model Compatibility List $38.04 / Each

11
108661 289391 10 RIGHT HANDLEBAR No Model Compatibility List $38.04 / Each

11
LEFT UPPER BODY LEG 108658 289392 7 LEFT UPPER BODY LEG Yes Model Compatibility List $74.17 / Each
1
RIGHT UPPER BODY LEG 108657 289393 6 RIGHT UPPER BODY LEG Yes Model Compatibility List $95.56 / Each

1

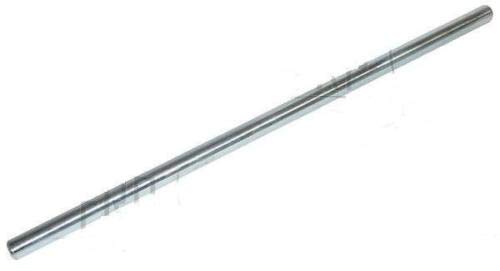

UPRIGHT AXLE 108688 289399 48 UPRIGHT AXLE Yes Model Compatibility List $72.15 / Each

3,8
PEDAL ARM AXLE SNAP RING 101227 289434 129 PEDAL ARM AXLE SNAP RING No Model Compatibility List $1.40 / Each

2,3,8,9
108700 289473 93 LIFT ARM AXLE No Model Compatibility List $117.02 / Each

8,3,10
108710 289476 142 LEFT LIFT ARM No Model Compatibility List $64.35 / Each

3,10

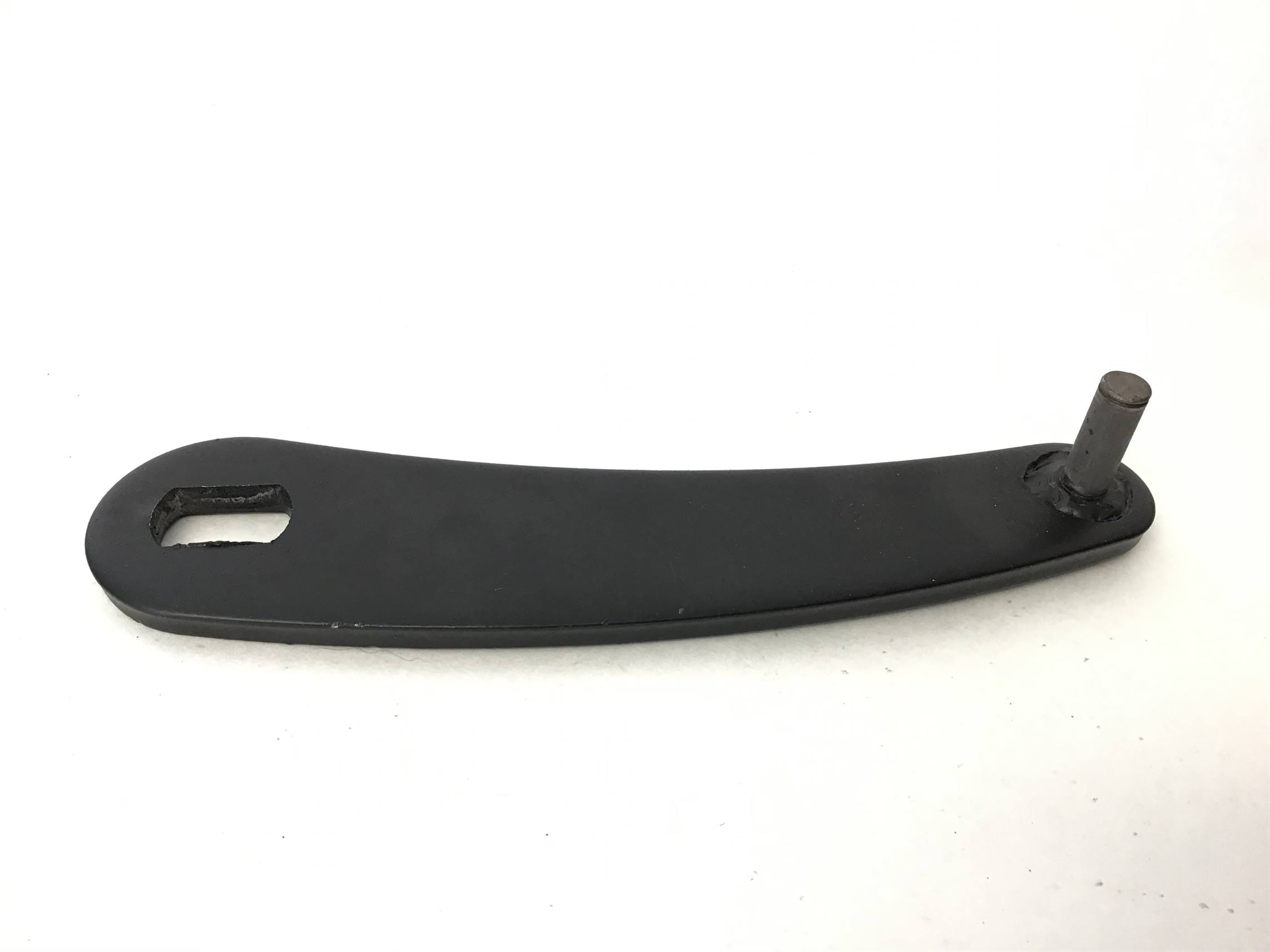

RIGHT LIFT ARM 108711 289478 143 RIGHT LIFT ARM Yes Model Compatibility List $65.45 / Each

3,10
WHEEL 101141 289864 36 WHEEL Yes Model Compatibility List $26.79 / Each

8

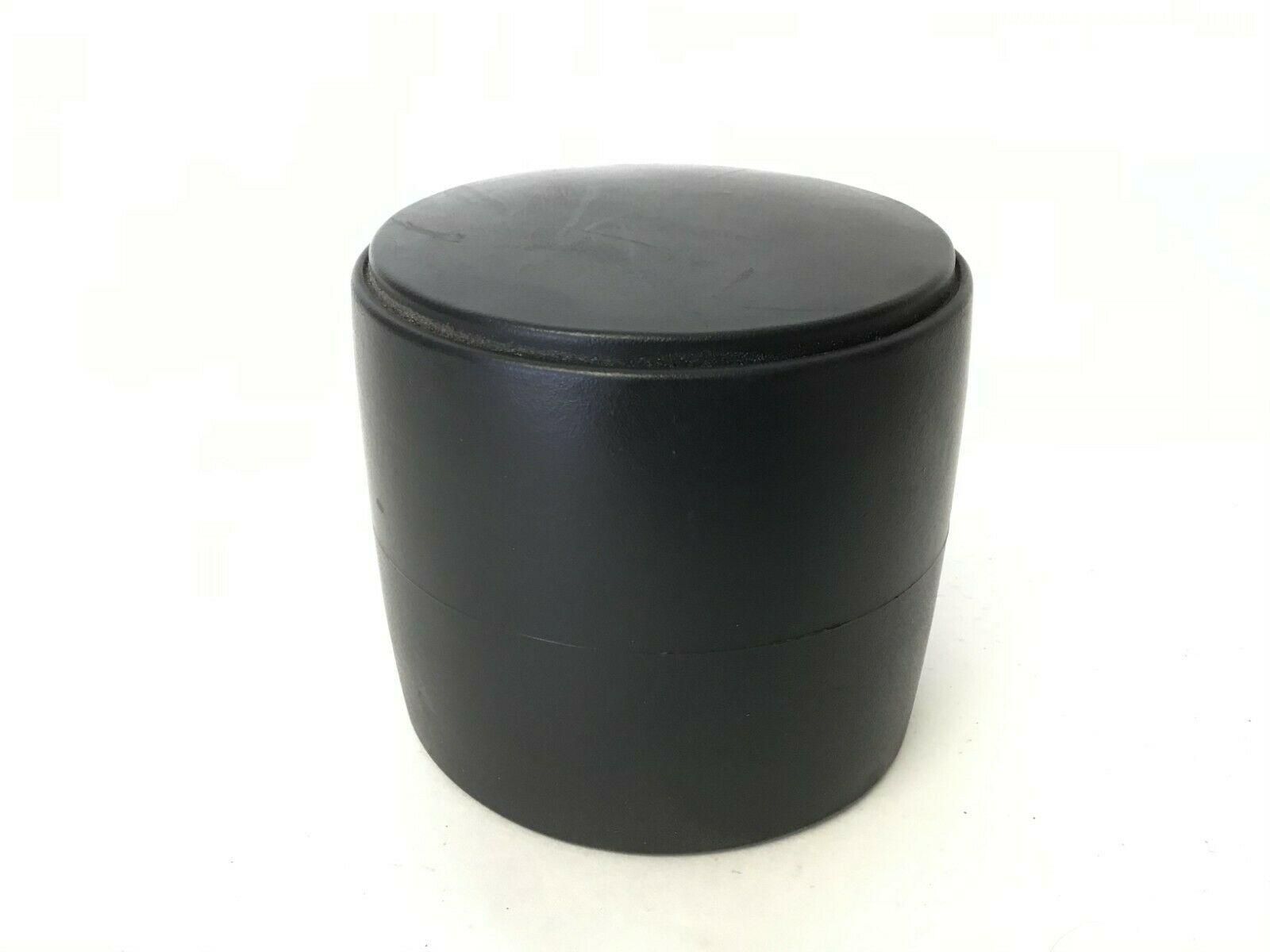

WHEEL CAP BLACK 108669 289865 16 WHEEL CAP BLACK Yes Model Compatibility List $10.27 / Each
Out Of Stock 		8,9
STABILIZER CAP 101142 289866 37 STABILIZER CAP Yes Model Compatibility List $45.24 / Each

9

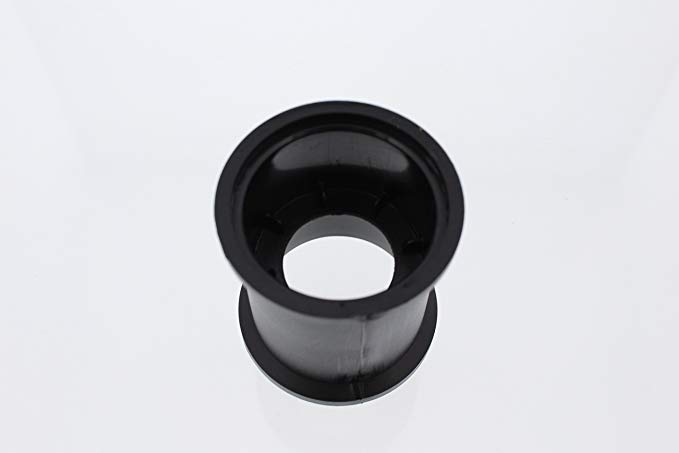

PEDAL ARM SLEEVE 101151 289867 46 PEDAL ARM SLEEVE Yes Model Compatibility List $17.18 / Each

1
108655 289883 4 REAR STABILIZER No Model Compatibility List $115.61 / Each

1

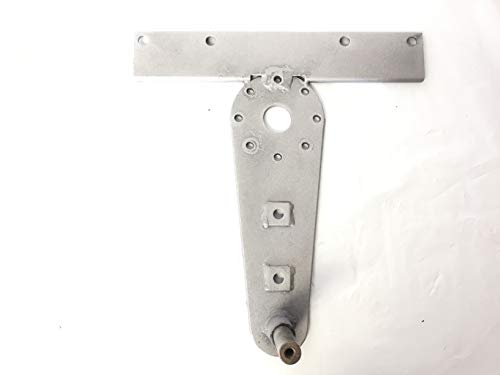

CRANK ARM 108685 289884 39 CRANK ARM Yes Model Compatibility List $119.83 / Each

3,8
108686 290233 42 LATCH BRACKET No Model Compatibility List $18.91 / Each

2,3,4,5,6

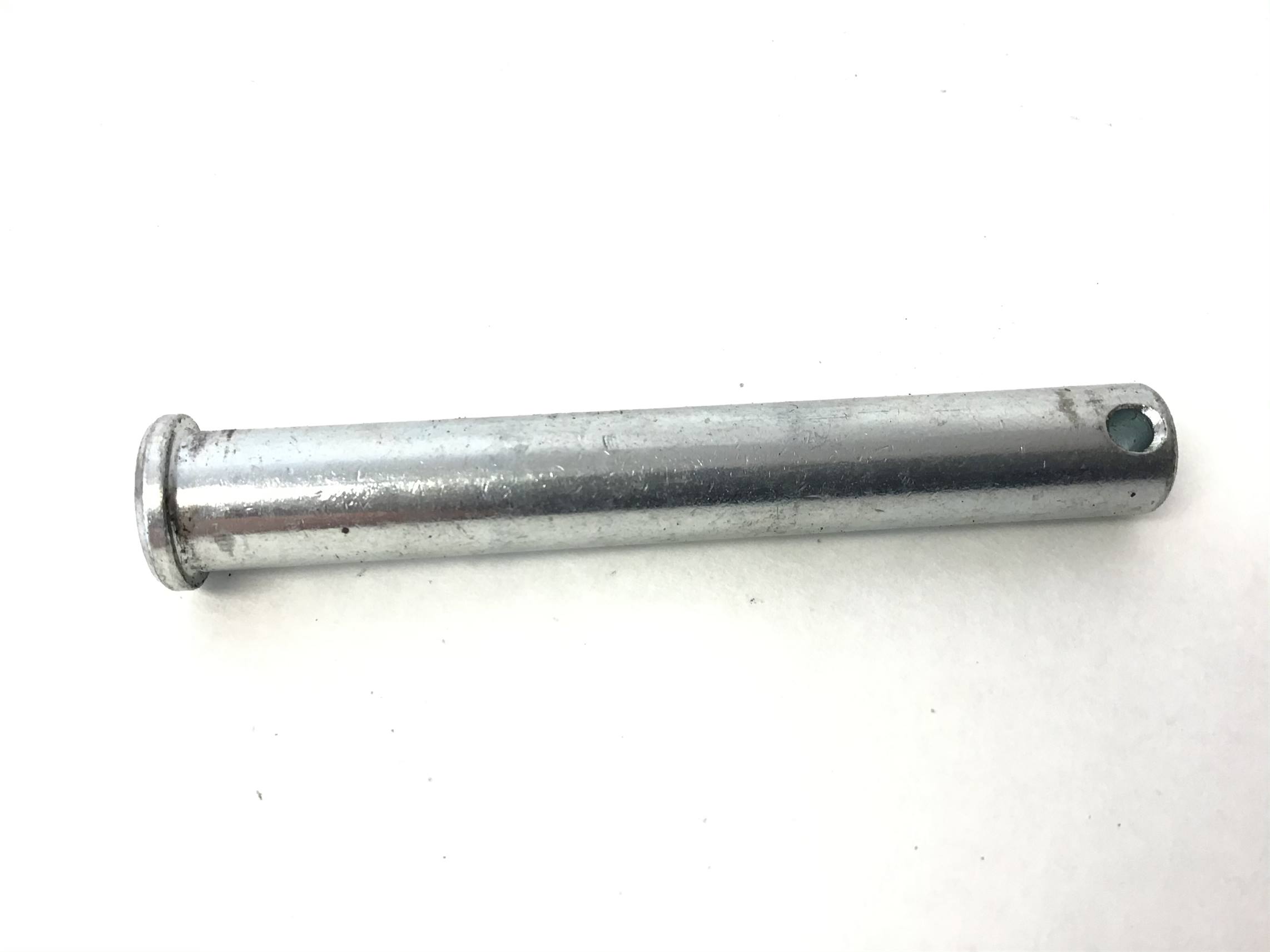

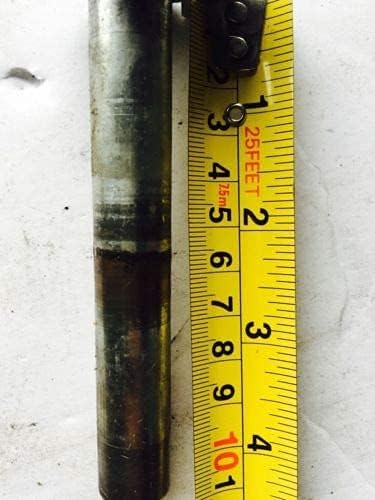

LONG MOTOR AXLE .496X3.5 108709 290237 137 LONG MOTOR AXLE .496X3.5" Yes Model Compatibility List $12.66 / Each

8
108719 290299 # DECAL, LT STRIDE ADJ No Model Compatibility List $28.47 / Each

7,3
108720 290300 # DECAL, RT STRIDE ADJ No Model Compatibility List $28.47 / Each

7,3
108683 290474 34A PULSE SENSOR No Model Compatibility List $72.15 / Each

12,13,14

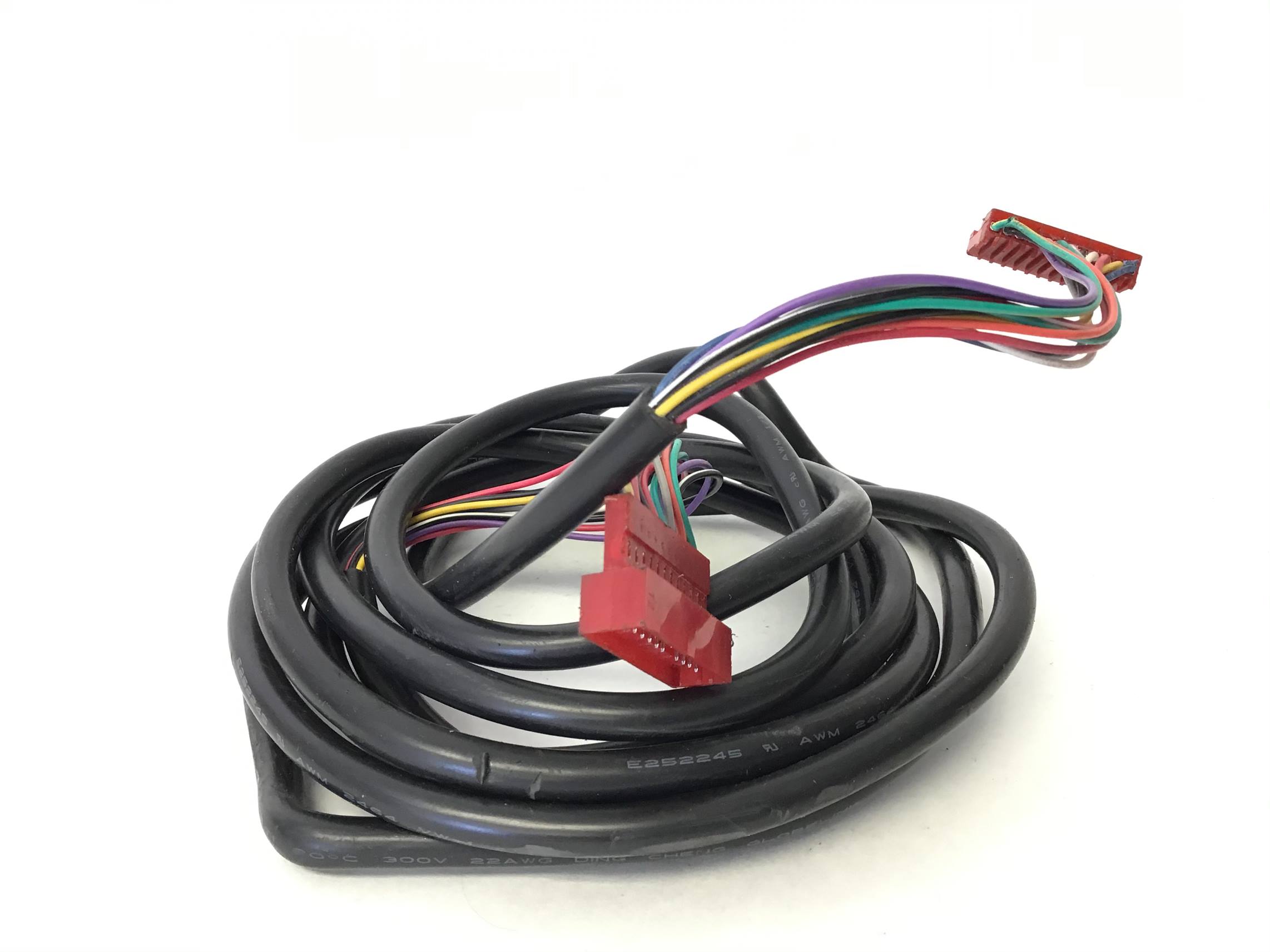

WIRE HARNESS 108692 290674 60 WIRE HARNESS Yes Model Compatibility List $21.45 / Each

4,5,6

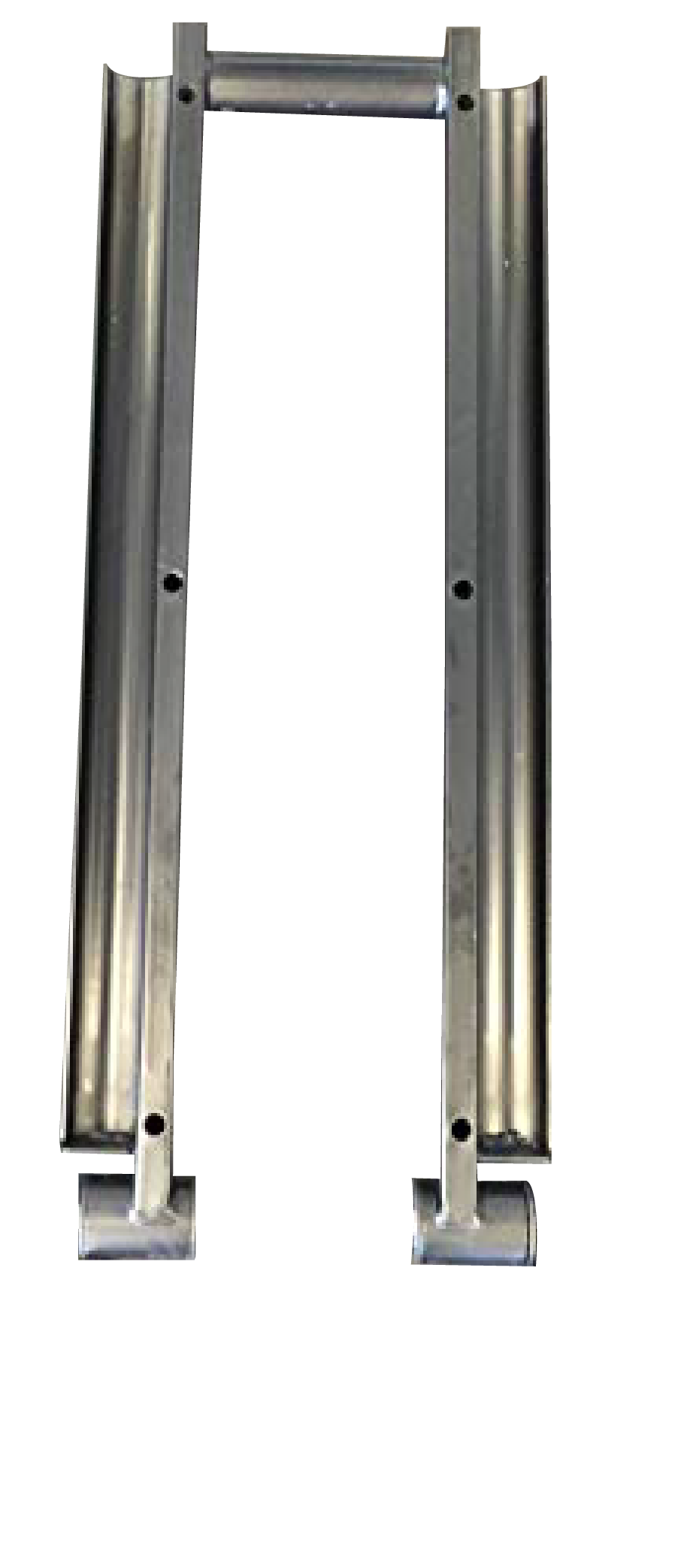

RAMP 108703 290833 130 RAMP Yes Model Compatibility List $237.29 / Each

4,5,6

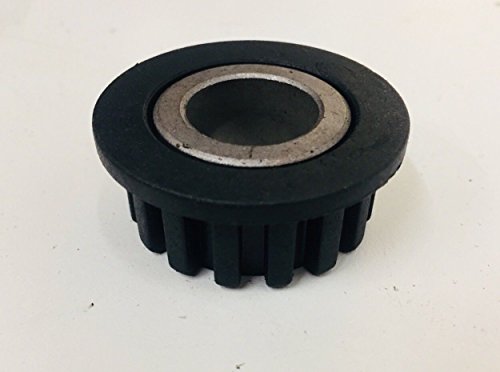

RAMP BUSHING 108705 291372 132 RAMP BUSHING No Model Compatibility List $16.32 / Each

1
108695 291373 64 MAIN FRAME BUSHING No Model Compatibility List $6.97 / Each

8,3
108694 291374 63 FRAME AXLE No Model Compatibility List $26.06 / Each

8,3
108706 291377 133 RAMP AXLE No Model Compatibility List $49.15 / Each

8,4,5,6
109063 291639 27 TOP COVER No Model Compatibility List $35.10 / Each

9
UPRIGHT BUSHING 108691 293159 57 UPRIGHT BUSHING No Model Compatibility List $6.95 / Each

1
ARM/LEG BUSHING 108690 293160 54 ARM/LEG BUSHING Yes Model Compatibility List $12.29 / Each

1
132883 293441 134 LIFT MOTOR No Model Compatibility List $133.47 / Each

10
101867 297255 # 5MM ALLEN WRENCH No Model Compatibility List $5.51 / Each

2,1
101868 297256 # 6MM ALLEN WRENCH No Model Compatibility List $9.37 / Each

2,1
108654 297259 3 FRONT STABILIZER No Model Compatibility List $95.56 / Each

1
PEDAL PAD 101116 298762 # PEDAL PAD Yes Model Compatibility List $22.20 / Each

8,9,12,13,14
CONTROL BOARD BRACKET 101023 300804 124 CONTROL BOARD BRACKET Yes Model Compatibility List $21.38 / Each

2,3,4,5,6,7

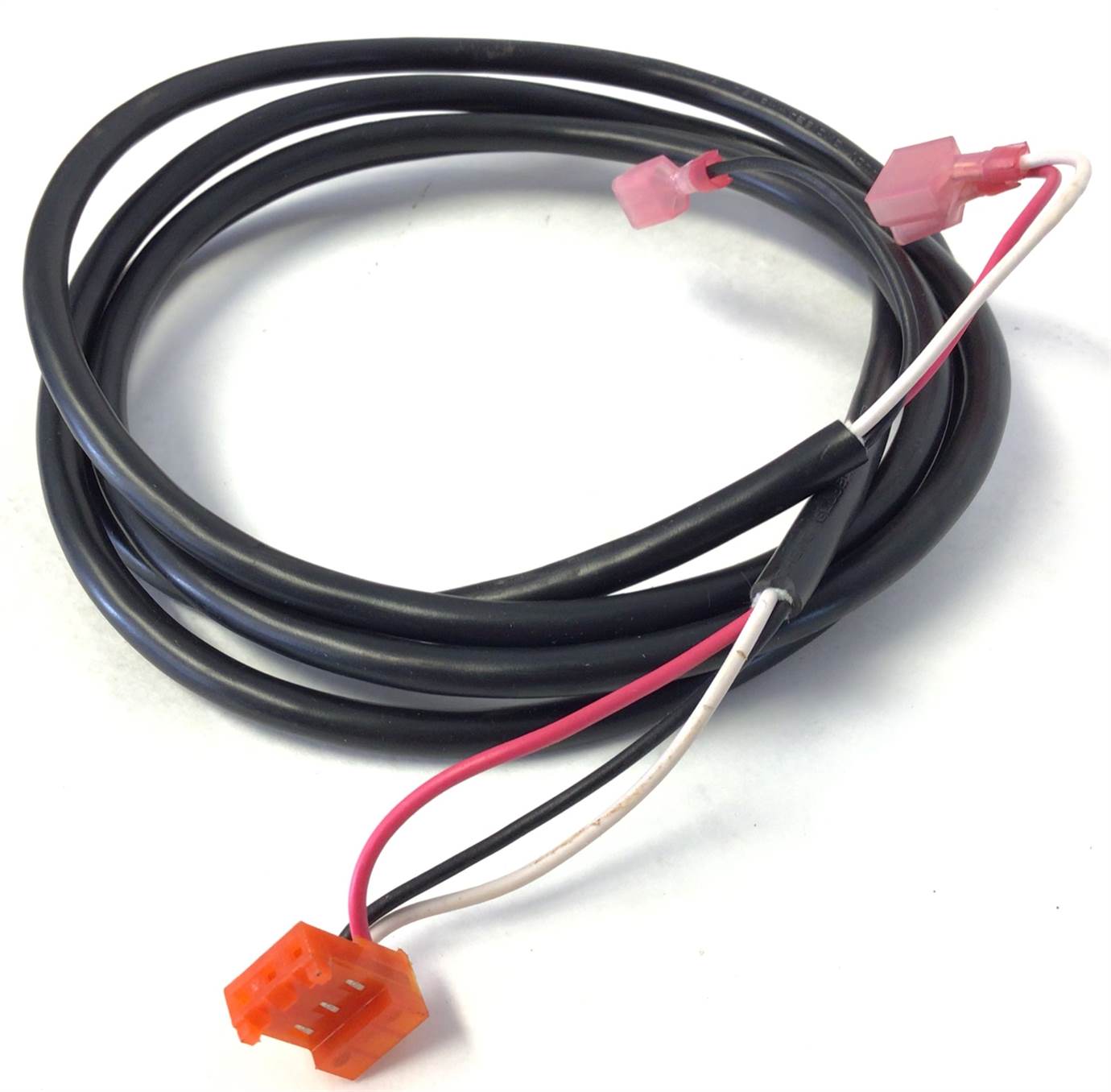

LIFT MTR 75 130640 300906 135 LIFT MTR 75" WIRE 3 CONN Yes Model Compatibility List $25.04 / Each

4,5,6,10
MOTOR POWER WIRE 109112 300907 145 MOTOR POWER WIRE Yes Model Compatibility List $70.20 / Each

4,5,6
101100 301390 23 TREE FASTENER No Model Compatibility List $0.46 / Each

1
LEFT PEDAL PAD 130193 302135 111 LEFT PEDAL PAD Yes Model Compatibility List $72.15 / Each

8,9,12,13,14
130194 302136 117 RIGHT PEDAL PAD No Model Compatibility List $72.15 / Each

8,9,12,13,14
130189 302147 67 LATCH BUTTON No Model Compatibility List $9.10 / Each

1
DECAL, PUSH BUTTON 130198 302542 # DECAL, PUSH BUTTON Yes Model Compatibility List $8.11 / Each
7,3
101134 303479 29B SNAP MOUNT SCREW No Model Compatibility List $0.69 / Each

2
130188 310102 50 LATCH No Model Compatibility List $20.35 / Each

1
109109 314166 98 PEDAL SPRING No Model Compatibility List $3.02 / Each

2,8,9
108716 314615 92 M4 X 8MM SCREW No Model Compatibility List $0.96 / Each

2
109108 316299 94 M10 X 118MM SCREW No Model Compatibility List $11.79 / Each

2
101119 316497 14 RIGHT PEDAL No Model Compatibility List $91.65 / Each

8,9
101120 316498 15 LEFT PEDAL No Model Compatibility List $91.65 / Each

8,9
CONTROLLER 101192 316981 120 CONTROLLER Yes Model Compatibility List $120.69 / Each

7,8
109113 319754 152 PEDAL BUMPER No Model Compatibility List $9.58 / Each

8,9
FLYWHEEL/MECHANISM 109100 321202 61 FLYWHEEL/MECHANISM Yes Model Compatibility List $598.94 / Each

8
RESISTANCE CABLE 101866 321678 # RESISTANCE CABLE Yes Model Compatibility List $18.30 / Each

4,5,6,10
109107 321708 91 CAM PLATE No Model Compatibility List $29.25 / Each

1
109097 321716 30 MAGNET COVER No Model Compatibility List $12.29 / Each

8,9
109095 321717 26 ACCESSORY TRAY No Model Compatibility List $22.20 / Each

4,5,6
109096 321718 28 PEDAL ARM CAP No Model Compatibility List $4.65 / Each

8,9,3
109093 321721 24 FRONT UPRIGHT COVER No Model Compatibility List $108.03 / Each

9,3
109094 321722 25A REAR UPRIGHT COVER No Model Compatibility List $108.03 / Each

9,3
FLWH SPACER 101062 322163 62 FLWH SPACER No Model Compatibility List $2.92 / Each

2,3,4,5,6
132935 322628 5 UPRIGHT No Model Compatibility List $174.55 / Each

3
109092 322630 22 LEFT FRAME COVER No Model Compatibility List $135.34 / Each

9,3
109091 322631 21 RIGHT FRAME COVER No Model Compatibility List $135.34 / Each

9,3
109102 322639 79 LEFT PEDAL PLATE No Model Compatibility List $117.01 / Each
Out Of Stock 		8,9
109103 322640 80 RIGHT PEDAL PLATE No Model Compatibility List $117.01 / Each

8,9
109105 322641 83 PEDAL CAM No Model Compatibility List $99.45 / Each

8,9
100944 325938 84 MECHANISM AXLE No Model Compatibility List $16.47 / Each

8
105119 327046 119 POWER CORD DRAWING No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
132955 327660 # DECAL, PEDAL POSITION No Model Compatibility List $16.98 / Each

7,8,9,3
132936 332220 12 RIGHT PEDAL ARM No Model Compatibility List $509.21 / Each

8,9,3
132940 333660 19 LEFT SHIELD No Model Compatibility List $130.80 / Each

3
132938 333661 17 DISC No Model Compatibility List $151.47 / Each

1
132943 333663 82 PEDAL KNOB No Model Compatibility List $19.07 / Each

8,9
132942 333742 33 CONSOLE No Model Compatibility List $520.68 / Each

7
132946 333743 # CONSOLE REPROG MODULE No Model Compatibility List $0.00 / Each
Out Of Stock 		7
132939 333986 18 RIGHT SHIELD No Model Compatibility List $130.80 / Each

3
132937 333988 13 LEFT PEDAL ARM No Model Compatibility List $509.21 / Each

8,9,3
132945 334517 154 RESISTANCE MOTOR WIRE No Model Compatibility List $20.98 / Each

4,5,6,10
132944 334797 131 RAMP COVER No Model Compatibility List $135.25 / Each

9,4,5,6
132956 339504 # USER-S MANUAL, ENGLISH No Model Compatibility List $0.00 / Each
Out Of Stock 		1
132957 339505 # USER-S MANUAL, SPANISH No Model Compatibility List $0.00 / Each
Out Of Stock 		1
132958 339506 # USER-S MANUAL, FRENCH No Model Compatibility List $0.00 / Each
Out Of Stock 		1
132959 339507 # USER-S MANUAL, GERMAN No Model Compatibility List $0.00 / Each
Out Of Stock 		1
132960 339508 # USER-S MANUAL, ITALIAN No Model Compatibility List $0.00 / Each
Out Of Stock 		1
132961 339509 # USER-S MANUAL, DUTCH No Model Compatibility List $0.00 / Each
Out Of Stock 		1
132962 339510 # USER-S MANUAL, PTRGS No Model Compatibility List $0.00 / Each
Out Of Stock 		1
132954 339512 20 ACCESS COVER No Model Compatibility List $127.90 / Each

9,4,5,6
RECEIVER 101856 361996 25B RECEIVER Yes Model Compatibility List $78.19 / Each

1
IDLER 100939 363093 77 IDLER Yes Model Compatibility List $58.30 / Each

8
IFIT WIFI ACCESSORY KIT 101226 EXIF12 # IFIT WIFI ACCESSORY KIT Yes Model Compatibility List $242.00 / Each

1
Pedal Arm Roller Bearing R10ZZ 000384 286547-b 32 4 Pedal Arm Roller Bearing R10ZZ Yes Model Compatibility List $14.29 / Each

8
M6 Flat Washer (Used) 1020703 014033 36 1 M6 Flat Washer (Used) Yes Model Compatibility List $2.02 / Each

Pedal Arm Sleeve 013278 289867 0 1 Pedal Arm Sleeve Yes Model Compatibility List $29.99 / Each

1
Bearing Sealed 1002777 139703 33 1 Bearing Sealed Yes Model Compatibility List $24.46 / Each

1
Pulley 1002802 255072 29 1 Pulley Yes Model Compatibility List $77.97 / Each

37
Belt Drive 46 1002846 142056 54 1 Belt Drive 46" Yes Model Compatibility List $45.77 / Each

23
Foot Leveler 1003996 237631 60 1 Foot Leveler Yes Model Compatibility List $6.69 / Each

9,46
Screw M8 X 16MM 1003998 214070 105 1 Screw M8 X 16MM No Model Compatibility List $1.06 / Each

2
M8 X 16MM Patch Screw 1004200 237612 0 1 M8 X 16MM Patch Screw No Model Compatibility List $11.99 / Each

2
M8 Split Washer 1004202 014174 0 1 M8 Split Washer No Model Compatibility List $11.99 / Each

Retainer Small 1004487 243375 0 1 Retainer Small No Model Compatibility List $11.99 / Each

2
M8 Locking Nut 1004787 256446 108 1 M8 Locking Nut No Model Compatibility List $0.69 / Each

2
M10 Locknut 1005195 148710 53 1 M10 Locknut No Model Compatibility List $1.57 / Each

2
Screw M10-1.5 x 20mm 100524 250420 107 1 Screw M10-1.5 x 20mm No Model Compatibility List $2.09 / Each

2
Idler Bracket Assembly 1006636 363093 0 1 Idler Bracket Assembly Yes Model Compatibility List $67.99 / Each

8
Axle Crank 1007315 287117 0 1 Axle Crank Yes Model Compatibility List $88.99 / Each
Out Of Stock 		8
Screw 1007995 184369 124 1 Screw No Model Compatibility List $0.47 / Each

2
Axle Crank W/Hub Plate 1007998 287117 0 1 Axle Crank W/Hub Plate Yes Model Compatibility List $88.99 / Each
Out Of Stock 		8
Pedal Crank Arm 1008001 289884 0 1 Pedal Crank Arm Yes Model Compatibility List $120.99 / Each

3,8
Resistance Gear Motor Brake Tensioner 1008084 193223 25 1 Resistance Gear Motor Brake Tensioner Yes Model Compatibility List $106.74 / Each

28
Adjuster Resistance Cable 1008346 321678 0 1 Adjuster Resistance Cable Yes Model Compatibility List $30.99 / Each

4,5,6,10
Snap Fastener 1008634 286527 156A 1 Snap Fastener Yes Model Compatibility List $1.91 / Each

2,1
Plastic Standoff Fastener 1008813 125819 19 1 Plastic Standoff Fastener Yes Model Compatibility List $2.35 / Each

2,1
Magnet 1009452 113842 137 1 Magnet Yes Model Compatibility List $1.10 / Each

8,1
Idler Bolt 101010 281150 99 1 Idler Bolt Yes Model Compatibility List $3.36 / Each

2,8
Power Supply Control Board 1010417 316981 0 1 Power Supply Control Board Yes Model Compatibility List $121.99 / Each

7,8
Resistance Motor 1010426 193223 25 1 Resistance Motor Yes Model Compatibility List $106.74 / Each

28
Large Axle Cover 1010933 286660 0 1 Large Axle Cover Yes Model Compatibility List $13.99 / Each

8,9
Stabilizer Cap 101142 289866 37 1 Stabilizer Cap Yes Model Compatibility List $61.99 / Each

9
Small Axle Cover 101157 287135 56 1 Small Axle Cover Yes Model Compatibility List $15.00 / Each

8,9
Latch Bracket Spring 101165 247275 66 1 Latch Bracket Spring Yes Model Compatibility List $22.99 / Each

3
Screw M8 X 28mm 101177 237611 86 1 Screw M8 X 28mm Yes Model Compatibility List $19.99 / Each

2
Clamp Screw 1011778 013162 0 1 Clamp Screw Yes Model Compatibility List $11.99 / Each

Idler Washer M6 1011790 014033 0 1 Idler Washer M6 Yes Model Compatibility List $12.99 / Each

Reed Switch Cable Retainer Clamp 1011798 131090 114 1 Reed Switch Cable Retainer Clamp Yes Model Compatibility List $0.46 / Each

4,5,6,2,1,47
Screw M4 X 12MM 1011802 168267 82 1 Screw M4 X 12MM Yes Model Compatibility List $0.22 / Each

2,1
Idler Screw 1011833 208163 84 1 Idler Screw Yes Model Compatibility List $1.20 / Each

2,8
Screw M10 X 95mm 101184 252438 100 1 Screw M10 X 95mm Yes Model Compatibility List $31.99 / Each

2
Idler Bracket Assembly 1011844 363093 0 1 Idler Bracket Assembly Yes Model Compatibility List $68.99 / Each

8
Axle Frame Bushing 1011860 237616 121B 1 Axle Frame Bushing Yes Model Compatibility List $3.60 / Each

4,5,6,8,2
Screw M4 X 16mm 101187 208817 112 1 Screw M4 X 16mm No Model Compatibility List $0.46 / Each

2,1
Power Cord Entry Input Socket 1002832 109231 Power Cord Entry Input Socket Yes Model Compatibility List $17.99 / Each

4,5,6
Lower Link Arm Left 1001979 289373 Lower Link Arm Left Yes Model Compatibility List $29.99 / Each
3
Magnetic Brake Flywheel 1002088 321202 Magnetic Brake Flywheel Yes Model Compatibility List $199.00 / Each
Out Of Stock 		8
Power Cord Entry Input Module 1002857 109231 Power Cord Entry Input Module Yes Model Compatibility List $14.00 / Each
4,5,6
Ramp and Lift Arm Pair 1001981 290833 Ramp and Lift Arm Pair Yes Model Compatibility List $129.00 / Each

4,5,6
Roller Wheel 1001305 286547 Roller Wheel Yes Model Compatibility List $14.99 / Each

1
Reed Switch RPM Speed Sensor 1002520 186070 Reed Switch RPM Speed Sensor Yes Model Compatibility List $21.99 / Each

47
Upper Body Axle 1002567 289399 Upper Body Axle Yes Model Compatibility List $29.99 / Each

3,8
Link Arm Axle 1002570 286526 Link Arm Axle Yes Model Compatibility List $19.99 / Each

3,8
Left Pulse Wire Harness (New) 1012824 272392 Left Pulse Wire Harness (New) Yes Model Compatibility List $23.99 / Each

4,5,6,12,13,14
Right Pulse Wire Harness (New) 1012823 272391 Right Pulse Wire Harness (New) Yes Model Compatibility List $23.99 / Each

4,5,6,12,13,14
Large Bearing (New) 1003396 139703 Large Bearing (New) Yes Model Compatibility List $29.99 / Each

1
Control Board Bracket (New) 1013084 300804 Control Board Bracket (New) Yes Model Compatibility List $33.99 / Each

2,3,4,5,6,7
Magnetic Brake Generator W/ Motor 1005834 193223 Magnetic Brake Generator W/ Motor Yes Model Compatibility List $149.00 / Each

28
Belt Adjustment Screw (New) 1011896 281149 Belt Adjustment Screw (New) Yes Model Compatibility List $15.99 / Each

2,15
Screw M6 X 12MM (New) 1011871 262341 Screw M6 X 12MM (New) Yes Model Compatibility List $14.99 / Each

2,45
Controller Circuit Board with Mounting Plate 1037923 316981 Controller Circuit Board with Mounting Plate Yes Model Compatibility List $99.00 / Each
7,8
View Drawing

general Info

Customer Service

About us

Address

6114 Madison Ct.
Morton Grove, IL 60053
847-309-2818

Hydra Fitness Exchange © 2025. All Rights Reserved.

Payment options
