ProForm - 330

Repair Parts for ProForm 330 PFEL32260

Brand: ProForm

Category: Residential Ellipticals

Type: Elliptical

Model Number:

Model Numbers are Unique Identifiers, they are important because they lead you to access diagrams and part lists specific to the version of a given model equipment you own. Bottom line, they help you get the right part. Note: Sometimes we put a serial prefix in this field to elicit versioning, and if this field is blank that means the model name alone will suffice for part selection.

PFEL32260

Model Name: 330

Exploded Diagrams

Other Languages Available

VIEWS

Catalog #	MPN	Part List Key	Quantity On Model	Part Description	Available Used	Model Compatibility List	New price
100396	104838	#		LUBE, GREASE	No	Model Compatibility List	$6.19 / Each	1,15
100081	113842	53		ROLLER MAGNET	Yes	Model Compatibility List	$1.10 / Each	8,1
101666	012002	59		M8 NYLON LOCKNUT	No	Model Compatibility List	$0.46 / Each
107288	012022	83		M6 LOCKNUT	No	Model Compatibility List	$0.56 / Each
102045	012033	84		M10 NYLON LOCKNUT	No	Model Compatibility List	$2.22 / Each
100663	012111	77		M6 NUT	Yes	Model Compatibility List	$3.31 / Each
121188	129851	88		CONSOLE SCREW	No	Model Compatibility List	$0.09 / Each	7,2
100079	131090	46		RSW CLAMP	Yes	Model Compatibility List	$0.46 / Each	4,5,6,2,1,47
114505	013129	60		M4 X 16MM WHITE SCREW	Yes	Model Compatibility List	$0.20 / Each
116234	013141	69		M5 X 16MM SCREW	No	Model Compatibility List	$0.13 / Each
100657	139703	40		BEARING	Yes	Model Compatibility List	$24.46 / Each	1
100828	140069	#		SNAP RING PLIERS, 1" EXT	No	Model Compatibility List	$143.47 / Each	2,1
116174	014038	78		M10 SPLIT WASHER	No	Model Compatibility List	$0.43 / Each
100472	014073	64		5/16" WASHER	Yes	Model Compatibility List	$1.25 / Each
100654	143742	41		LARGE SNAP RING	Yes	Model Compatibility List	$1.84 / Each	1
123651	151750	86		#10 X 1" TAP SCREW	No	Model Compatibility List	$0.44 / Each	2
100684	153280	91		FRAME CUSHION	Yes	Model Compatibility List	$13.94 / Each	3
101781	177035	50		FLYWHEEL BEARING	No	Model Compatibility List	$63.94 / Each	8
104042	180917	68		GROUND WIRE SCREW	No	Model Compatibility List	$0.12 / Each	2,4,5,6
115442	181792	49		FLYWHEEL AXLE	No	Model Compatibility List	$20.95 / Each	8
115446	181908	55		IDLER	No	Model Compatibility List	$49.71 / Each	8
100953	186070	47		REED SWITCH/WIRE	Yes	Model Compatibility List	$27.83 / Each	47
101335	186477	9		HANDLEBAR CAP	Yes	Model Compatibility List	$3.36 / Each	9,11,46
101258	191629	17		WATER BOTTLE HOLDER	Yes	Model Compatibility List	$21.45 / Each	1
100647	193223	56		RESISTANCE MOTOR	Yes	Model Compatibility List	$106.74 / Each	28
115441	201859	48		FLYWHEEL	No	Model Compatibility List	$264.91 / Each	8
101362	204489	20		WAVE WASHER	No	Model Compatibility List	$2.99 / Each	2,4,5,6
123116	206685	66		M4 X 22MM SCREW	No	Model Compatibility List	$0.38 / Each	2
101995	207815	62		M10 X 48MM SCREW	No	Model Compatibility List	$6.71 / Each	2
102120	208527	76		M6 X 38MM BOLT	No	Model Compatibility List	$2.40 / Each	2
123084	208530	67		M4 X 32MM SCREW	No	Model Compatibility List	$0.50 / Each Out Of Stock	2
106289	208580	74		M10 X 75MM BOLT	No	Model Compatibility List	$10.49 / Each	2
149389	211692	63		M6 X 18MM BOLT	No	Model Compatibility List	$2.06 / Each	2
100699	212055	70		M8 X 25MM PATCH SCREW	No	Model Compatibility List	$1.80 / Each	2
100797	213148	27		WAVE WASHER	No	Model Compatibility List	$4.64 / Each	2
100793	213457	72		M4 X 12MM SCREW	No	Model Compatibility List	$1.20 / Each	2,50
115416	215674	8		FOAM GRIP	No	Model Compatibility List	$55.41 / Each	11
115428	223892	29		WHEEL COVER	No	Model Compatibility List	$5.51 / Each	8,9
115427	223893	28		WHEEL	No	Model Compatibility List	$13.68 / Each	8
100672	224113	81		M8 X 18MM WASHER	No	Model Compatibility List	$1.86 / Each	2
100788	224606	80		M4 X 25MM SCREW	Yes	Model Compatibility List	$0.52 / Each	2
113896	230132	75		M10 X 50MM CARRIAGE BOLT	No	Model Compatibility List	$10.81 / Each Out Of Stock	2
120341	234156	42		LEFT CRANK ARM	No	Model Compatibility List	$120.75 / Each	8,3
120342	234157	43		RIGHT CRANK ARM	No	Model Compatibility List	$103.54 / Each	8,3
115437	234160	39		CRANK, 3/8"	No	Model Compatibility List	$46.40 / Each	8
120332	234164	25		OUTER CRANK ARM BUSHING	No	Model Compatibility List	$19.40 / Each	8,3
120333	234165	26		INNER CRANK ARM BUSHING	No	Model Compatibility List	$11.74 / Each	8,3
120327	234167	14		PIVOT COVER	No	Model Compatibility List	$1.72 / Each	8,9
120331	234168	23		PEDAL LEG COVER	No	Model Compatibility List	$2.87 / Each	8,9
120335	234170	31		RIGHT SIDE SHIELD	No	Model Compatibility List	$117.91 / Each Out Of Stock	3
120334	234175	30		LEFT SIDE SHIELD	No	Model Compatibility List	$126.94 / Each Out Of Stock	3
120328	234176	19		PEDAL	Yes	Model Compatibility List	$109.27 / Each Out Of Stock	8,9
120340	234177	36		STABILIZER ENDCAP	Yes	Model Compatibility List	$23.89 / Each Out Of Stock	4,5,6,9
115444	234364	52		C MAGNET BRACKET	No	Model Compatibility List	$30.70 / Each	2,8,3,4,5,6
115419	234365	16		PIVOT AXLE	No	Model Compatibility List	$66.50 / Each	8
120321	234425	4		LEFT UPPER BODY ARM	No	Model Compatibility List	$140.51 / Each	3
120322	234426	5		RIGHT UPPER BODY ARM	No	Model Compatibility List	$86.00 / Each	3
115435	234542	37		BELT	No	Model Compatibility List	$112.29 / Each	23
101342	234594	73		CRANK SCREW	No	Model Compatibility List	$2.64 / Each	2,8
120339	234810	35		REAR STABILIZER	No	Model Compatibility List	$54.34 / Each	1
120329	234813	21		LEFT PEDAL ARM	No	Model Compatibility List	$113.36 / Each	8,9,3
120330	234814	22		RIGHT PEDAL ARM	No	Model Compatibility List	$116.27 / Each	8,9,3
120320	234815	3		FRONT STABILIZER	No	Model Compatibility List	$140.51 / Each	1
112252	234928	87		STAR WASHER	No	Model Compatibility List	$0.52 / Each	2
115445	234971	54		SPRING	No	Model Compatibility List	$2.64 / Each	2
115443	234973	51		C" MAGNET	No	Model Compatibility List	$59.84 / Each	8
120343	235510	45		CRANK ARM SPACER	No	Model Compatibility List	$1.32 / Each Out Of Stock	2,8,3,4,5,6
115439	236408	44		RESISTANCE CABLE	No	Model Compatibility List	$2.90 / Each	4,5,6,10
149390	237480	82		M4 WASHER	No	Model Compatibility List	$1.06 / Each	2
142784	237807	85		M4 STAR WASHER	No	Model Compatibility List	$0.25 / Each	2
115420	237878	18		UPPER WIRE HARNESS	No	Model Compatibility List	$40.82 / Each	4,5,6
115436	237881	38		LOWER WIRE HARNESS	No	Model Compatibility List	$28.81 / Each	4,5,6
120346	238192	90		CONCAVE SPACER	No	Model Compatibility List	$3.43 / Each	2,3,4,5,6
149393	240696	#		USER-S MANUAL	No	Model Compatibility List	$8.93 / Each	1
120324	240698	92		UPRIGHT ENDCAP	No	Model Compatibility List	$3.34 / Each	9,3,4,5,6
149388	240699	33		RIGHT DISC	No	Model Compatibility List	$94.45 / Each	1
149387	240700	32		LEFT DISC	No	Model Compatibility List	$108.50 / Each	1
149392	240701	#		BATTERY COVER DOOR	No	Model Compatibility List	$10.66 / Each Out Of Stock	9
120326	240702	11		ARM KNOB	No	Model Compatibility List	$11.96 / Each	3
120338	240705	34		DISC COVER	No	Model Compatibility List	$1.03 / Each	9
120344	240956	65		M8 X 23MM BUTTON SCREW	No	Model Compatibility List	$1.03 / Each	2
120319	240959	2		UPRIGHT	No	Model Compatibility List	$148.41 / Each	3
149386	240960	10		CONSOLE	No	Model Compatibility List	$153.24 / Each	7
120323	240985	6		LEFT/RIGHT UPPER BODY LEG	No	Model Compatibility List	$119.73 / Each	1
149391	246355	89		M10 X 60MM BUTTON SCREW	No	Model Compatibility List	$2.31 / Each	2
115280	247344	58		M10 X 75MM CARRIAGE BOLT	No	Model Compatibility List	$3.02 / Each	2
120345	249980	71		M5 X 16MM BUTTON SCREW	No	Model Compatibility List	$0.26 / Each	2
115447	250964	61		M8 X 19MM FLAT HEAD BOLT	No	Model Compatibility List	$2.21 / Each	2
100780	251034	79		M8 SPLIT WASHER	No	Model Compatibility List	$0.32 / Each	2
100824	258873	#		DECAL, GENERAL WRNG, FR	No	Model Compatibility List	$2.21 / Each	7,3
149394	265232			USER-S MANUAL, FCA	No	Model Compatibility List	$8.93 / Each	1
100776	283582	57		CRANK SCREW	No	Model Compatibility List	$47.61 / Each	2,8
100604	045008	#		5MM ALLEN WRENCH	Yes	Model Compatibility List	$3.85 / Each
100541	045021	#		6MM ALLEN WRENCH	Yes	Model Compatibility List	$5.28 / Each
1002777	139703	33	1	Bearing Sealed	Yes	Model Compatibility List	$24.46 / Each	1
1004211	204489	0	1	Wave Washer	No	Model Compatibility List	$10.99 / Each	2,4,5,6
1008084	193223	25	1	Resistance Gear Motor Brake Tensioner	Yes	Model Compatibility List	$106.74 / Each	28
1008628	153280	0	1	Leveling Foot Leveler	Yes	Model Compatibility List	$23.99 / Each	3
1009452	113842	137	1	Magnet	Yes	Model Compatibility List	$1.10 / Each	8,1
1010426	193223	25	1	Resistance Motor	Yes	Model Compatibility List	$106.74 / Each	28
1011503	013129	0	1	Screw #8 X 5/8"	Yes	Model Compatibility List	$13.99 / Each
1011798	131090	114	1	Reed Switch Cable Retainer Clamp	Yes	Model Compatibility List	$0.46 / Each	4,5,6,2,1,47

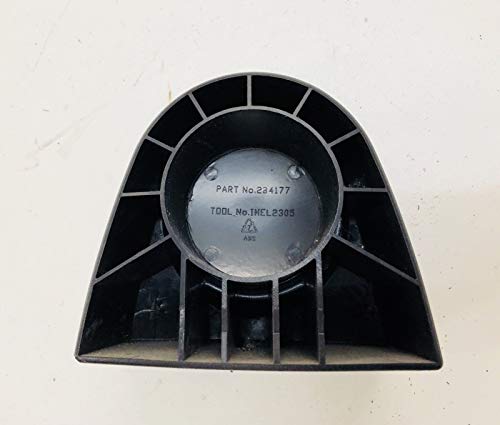

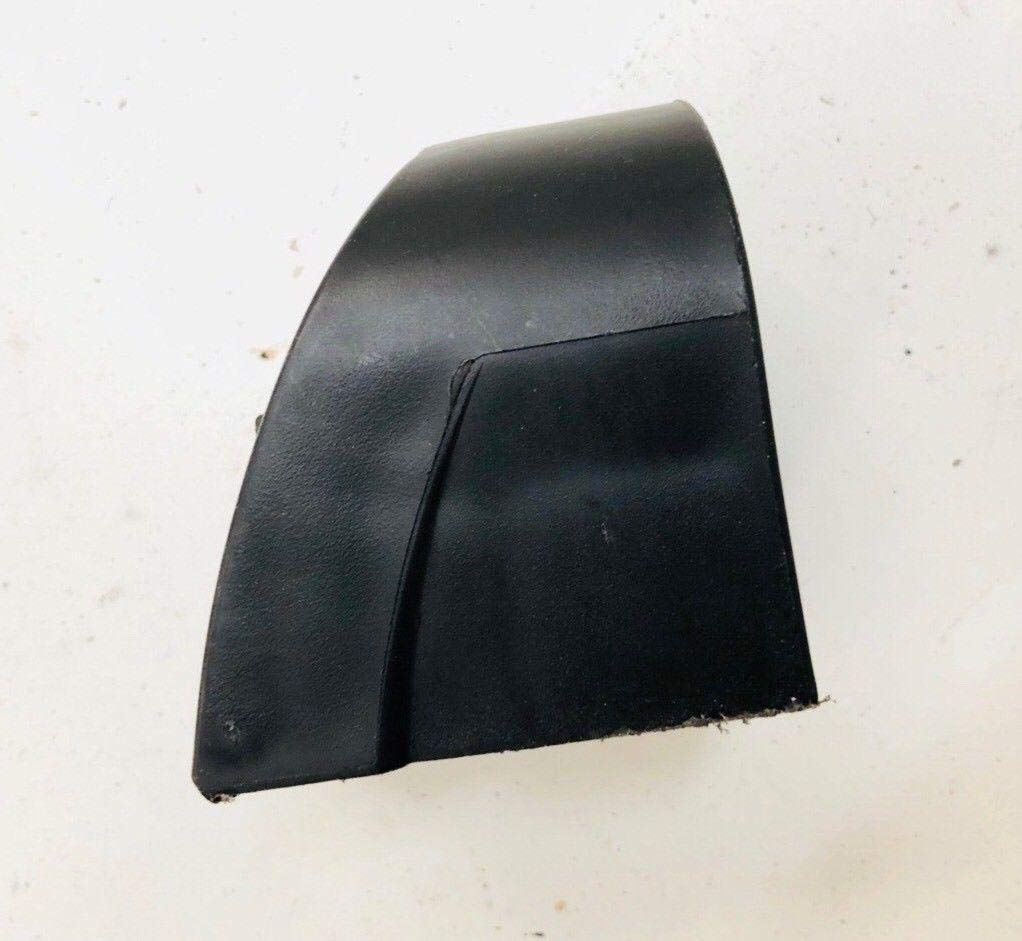

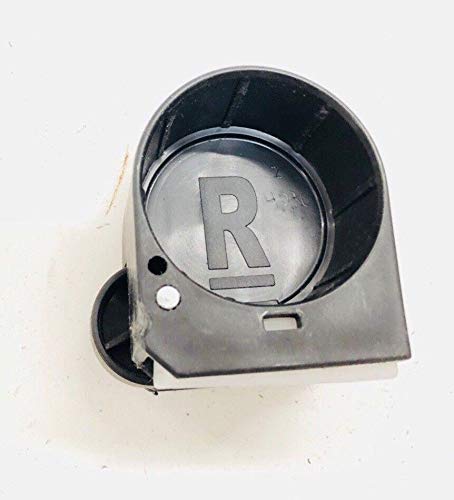

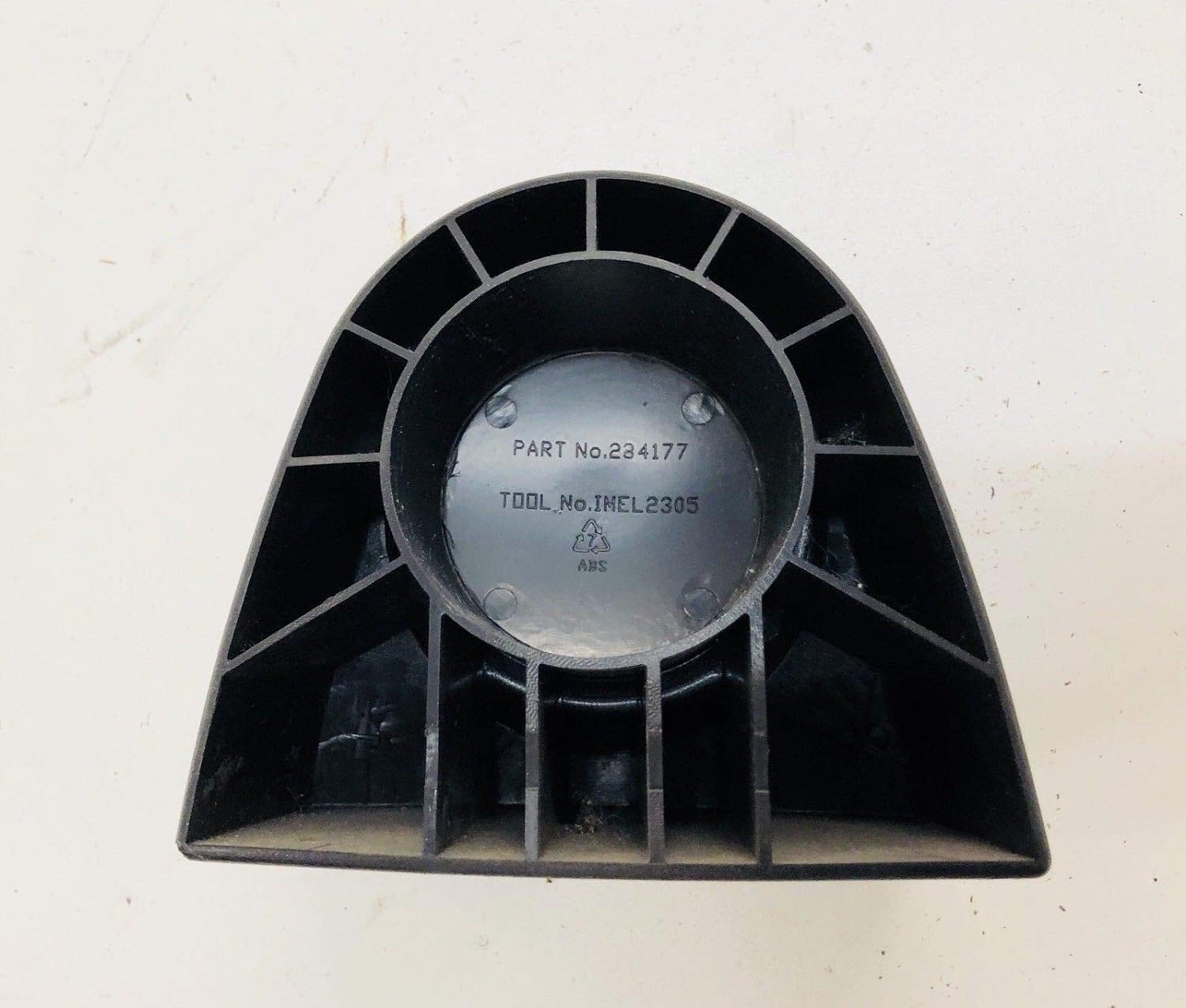

1002692	234177			Bike Foot Leveler Level Feet	Yes	Model Compatibility List	$19.99 / Each Out Of Stock	4,5,6,9

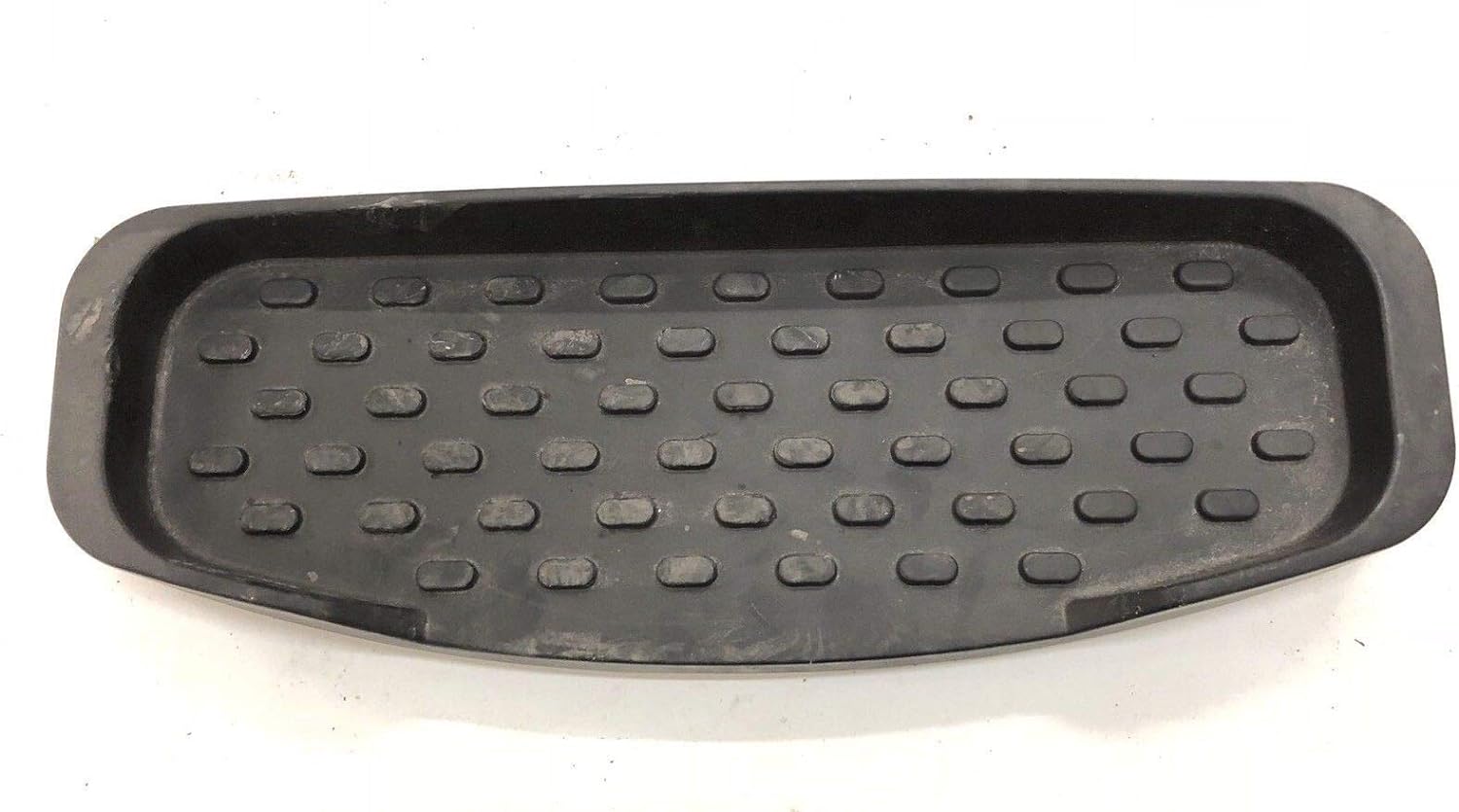

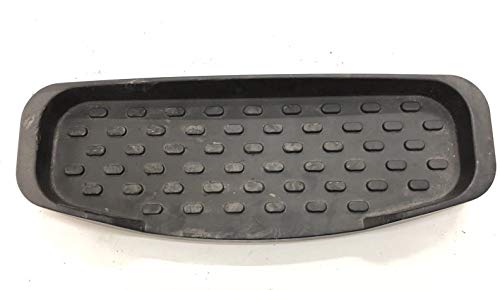

1002689	234176			Left and Right Foot Pedal Pad	Yes	Model Compatibility List	$49.99 / Each Out Of Stock	8,9
1002698	234177			Foot Left Leveler Level Feet Roller	Yes	Model Compatibility List	$24.99 / Each Out Of Stock	4,5,6,9
1002699	234177			Foot Right Leveler Level Feet Roller	Yes	Model Compatibility List	$24.99 / Each Out Of Stock	4,5,6,9
1002701	234177			Foot Right Leveler Level Feet Rear	Yes	Model Compatibility List	$24.99 / Each Out Of Stock	4,5,6,9
1002520	186070			Reed Switch RPM Speed Sensor	Yes	Model Compatibility List	$21.99 / Each	47
1003396	139703			Large Bearing (New)	Yes	Model Compatibility List	$29.99 / Each	1
1013199	224113			Elliptical Washer M8 (New)	No	Model Compatibility List	$12.99 / Each	2
1005834	193223			Magnetic Brake Generator W/ Motor	Yes	Model Compatibility List	$149.00 / Each	28
