ProForm - 710 EKG EXERCISE

Repair Parts for ProForm 710 EKG EXERCISE PFEVEX24160

Brand: ProForm

Category: Residential Upright Bikes

Type: Stationary Bikes

Model Number:

Model Numbers are Unique Identifiers, they are important because they lead you to access diagrams and part lists specific to the version of a given model equipment you own. Bottom line, they help you get the right part. Note: Sometimes we put a serial prefix in this field to elicit versioning, and if this field is blank that means the model name alone will suffice for part selection.

PFEVEX24160

Model Name: 710 EKG EXERCISE

Exploded Diagrams

Other Languages Available

VIEWS

Catalog #	MPN	Part List Key	Quantity On Model	Part Description	Available Used	Model Compatibility List	New price
121293	104622	40		M4 X 16MM SCREW	No	Model Compatibility List	$0.22 / Each	2
100396	104838	#		LUBE, GREASE	No	Model Compatibility List	$6.19 / Each	1,15
100081	113842	16		ROLLER MAGNET	Yes	Model Compatibility List	$1.10 / Each	8,1
101351	116014	56B		THRUST WASHER	No	Model Compatibility List	$8.36 / Each	2,12,13,14,1
101666	012002	37		M8 NYLON LOCKNUT	No	Model Compatibility List	$0.46 / Each
107288	012022	38		M6 LOCKNUT	No	Model Compatibility List	$0.56 / Each
122825	013088	53		BRACKET SCREW	No	Model Compatibility List	$0.15 / Each
100079	131090	22		RSW CLAMP	Yes	Model Compatibility List	$0.46 / Each	4,5,6,2,1,47
107438	013294	39		#8 X 1" PAN HEAD SCREW	No	Model Compatibility List	$0.18 / Each
100657	139703	27		BEARING	Yes	Model Compatibility List	$24.46 / Each	1
100828	140069	#		SNAP RING PLIERS, 1" EXT	No	Model Compatibility List	$143.47 / Each	2,1
116174	014038	34		M10 SPLIT WASHER	No	Model Compatibility List	$0.43 / Each
100472	014073	60		5/16" WASHER	Yes	Model Compatibility List	$1.25 / Each
100665	014174	36		M8 SPLIT WASHER	No	Model Compatibility List	$2.48 / Each
100654	143742	56A		LARGE SNAP RING	Yes	Model Compatibility List	$1.84 / Each	1
100668	144985	15		M4 X 16MM SCREW	No	Model Compatibility List	$0.22 / Each	2
120781	151249	#		WARNING DECAL	No	Model Compatibility List	$4.65 / Each	7,3
101910	153209	44		CRANK CAP	Yes	Model Compatibility List	$2.40 / Each	8,9,46
164675	153790	9		LEFT UPRIGHT	No	Model Compatibility List	$81.12 / Each	3
101707	164675	21		REED SWITCH/WIRE	Yes	Model Compatibility List	$24.11 / Each	4,5,6
100647	193223	8		RESISTANCE MOTOR	Yes	Model Compatibility List	$106.74 / Each	28

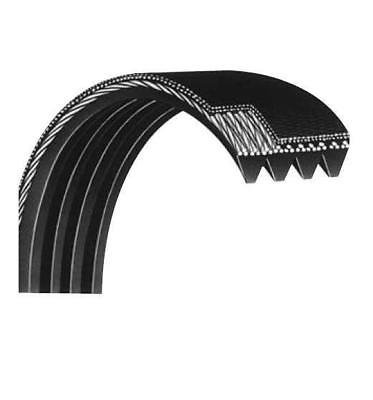

130974	194879	23		DRIVE BELT	No	Model Compatibility List	$68.25 / Each	23
132237	208765	62		M6 X 16MM BUTTON SCREW	No	Model Compatibility List	$0.77 / Each	2
115273	209492	51		M6 X 8MM SCREW	No	Model Compatibility List	$1.40 / Each	2
115070	212501	32		UPPER WIRE	Yes	Model Compatibility List	$48.75 / Each	4,5,6
116277	212564	48		HANDLEBAR CAP	No	Model Compatibility List	$4.37 / Each	9,11
115654	242434	31		WIRE HARNESS	No	Model Compatibility List	$49.46 / Each	4,5,6
152323	244433	19		SPRING	No	Model Compatibility List	$3.34 / Each	2
152311	245530	3		UPRIGHT	No	Model Compatibility List	$54.34 / Each	3
152314	245652	6		CONSOLE	No	Model Compatibility List	$140.63 / Each	7
130569	245838	35		M10 X 20MM SCREW	No	Model Compatibility List	$4.18 / Each	2
152324	245853	20		SEAT POST BUSHING	No	Model Compatibility List	$5.14 / Each	8,12,13,14
152318	245858	11		ADJUSTMENT KNOB	No	Model Compatibility List	$6.42 / Each Out Of Stock	1
152319	246470	12		SEAT	No	Model Compatibility List	$58.86 / Each	12,13,14
152322	246472	18		RIGHT SIDE SHIELD	No	Model Compatibility List	$97.03 / Each	3
152321	246474	17		LEFT SIDE SHIELD	No	Model Compatibility List	$97.03 / Each	3
152312	246477	4		ENDCAP	No	Model Compatibility List	$3.86 / Each	9,4,5,6
152332	246478	50		HUB CAP	No	Model Compatibility List	$1.29 / Each	9
152331	246479	49		WHEEL	No	Model Compatibility List	$9.52 / Each	8
152330	246480	46		ADJUSTMENT HANDLE	No	Model Compatibility List	$3.08 / Each	11
152328	246481	43		RIGHT CRANK ARM	No	Model Compatibility List	$103.36 / Each	8,3
152327	246482	42		LEFT CRANK ARM	No	Model Compatibility List	$103.36 / Each	8,3
152326	246484	26		SEAT CARRIAGE	No	Model Compatibility List	$81.29 / Each	12,13,14
152316	246485	9		CRANK	No	Model Compatibility List	$17.39 / Each Out Of Stock	8
152320	246486	14		REAR STABILIZER	No	Model Compatibility List	$24.75 / Each	1
152310	246487	2		FRONT STABILIZER	No	Model Compatibility List	$24.75 / Each	1
152313	246489	5		SEAT POST	No	Model Compatibility List	$75.47 / Each	12,13,14
152325	246491	25		RIGHT PEDAL/STRAP	No	Model Compatibility List	$19.02 / Each	8,9
152333	246493	52		SEAT KNOB	No	Model Compatibility List	$6.42 / Each	12,13,14
152334	246494	61		PULLEY	No	Model Compatibility List	$17.39 / Each	8
152329	246495	45		UPRIGHT CLAMP	No	Model Compatibility List	$5.14 / Each	3,4,5,6
151906	246496	13		FOOT	No	Model Compatibility List	$2.57 / Each	9
152336	246497	#		USER-S MANUAL, UK	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
152337	246499	#		USER-S MANUAL, SPANISH	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
152338	246500	#		USER-S MANUAL, FRENCH	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
152339	246501	#		USER-S MANUAL, ITALY	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
152340	246502	#		USER-S MANUAL, GERMAN	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
152341	246503	#		USER-S MANUAL, DUTCH	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
152335	246601	64		FOAM GRIP	No	Model Compatibility List	$20.38 / Each	11
121346	246701	54		5/16" FLANGE SCREW	No	Model Compatibility List	$3.95 / Each	2
116298	247748	57		EYEBOLT	No	Model Compatibility List	$8.70 / Each	2
116280	248961	28		IDLER	No	Model Compatibility List	$18.84 / Each	8
152315	248965	7		EDDY MECHANISM	No	Model Compatibility List	$208.52 / Each	8
101660	249928	55		M8 X 20MM BUTTON SCREW	No	Model Compatibility List	$1.44 / Each	2
151419	252833	33		M10 X 74MM BUTTON BOLT	No	Model Compatibility List	$2.44 / Each	2
101181	254769	63		M6 LOCKNUT	No	Model Compatibility List	$2.27 / Each	1
116177	258864	#		DECAL, WARNING	No	Model Compatibility List	$1.54 / Each	7,3
152342	258866	#		DECAL, GEN. WRNG, 5 LANG.	No	Model Compatibility List	$7.19 / Each	7,3
116302	260054	59		FLYWHEEL NUT	No	Model Compatibility List	$0.77 / Each	2,8
116294	260055	58		3/8" NUT	No	Model Compatibility List	$1.03 / Each	2
116295	260080	30		U-BRACKET	No	Model Compatibility List	$1.29 / Each	2,3,4,5,6
152317	265407	10		RESISTANCE CABLE	No	Model Compatibility List	$6.17 / Each Out Of Stock	4,5,6,10
116273	287469	29		WATER BOTTLE HOLDER	No	Model Compatibility List	$2.55 / Each	1
100541	045021	#		6MM ALLEN WRENCH	Yes	Model Compatibility List	$5.28 / Each
104667	NI	#		EXERCISE GUIDE	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
1002777	139703	33	1	Bearing Sealed	Yes	Model Compatibility List	$24.46 / Each	1
1004202	014174	0	1	M8 Split Washer	No	Model Compatibility List	$11.99 / Each
1004210	249928	29	1	M8 X 20MM Button Screw	No	Model Compatibility List	$1.44 / Each	2
1008084	193223	25	1	Resistance Gear Motor Brake Tensioner	Yes	Model Compatibility List	$106.74 / Each	28
1009452	113842	137	1	Magnet	Yes	Model Compatibility List	$1.10 / Each	8,1
1010426	193223	25	1	Resistance Motor	Yes	Model Compatibility List	$106.74 / Each	28
1011536	153209	42	1	Crank Arm Endcap	Yes	Model Compatibility List	$2.40 / Each	8,9,46
1011798	131090	114	1	Reed Switch Cable Retainer Clamp	Yes	Model Compatibility List	$0.46 / Each	4,5,6,2,1,47
1003396	139703			Large Bearing (New)	Yes	Model Compatibility List	$29.99 / Each	1
1005834	193223			Magnetic Brake Generator W/ Motor	Yes	Model Compatibility List	$149.00 / Each	28
