ProForm - 785EX

Repair Parts for ProForm 785EX 831.298990

Brand: ProForm

Category: Residential Treadmills

Type: Folding Treadmill

Model Name: 785EX

Exploded Diagrams

Other Languages Available

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry [email protected]

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
Motor Incline (Used) 1021944 142395 45 1 Motor Incline (Used) Yes Model Compatibility List $120.35 / Each

1,10
Power supply board (Used) 1022093 128191 111 1 Power supply board (Used) No Model Compatibility List $149.53 / Each

1

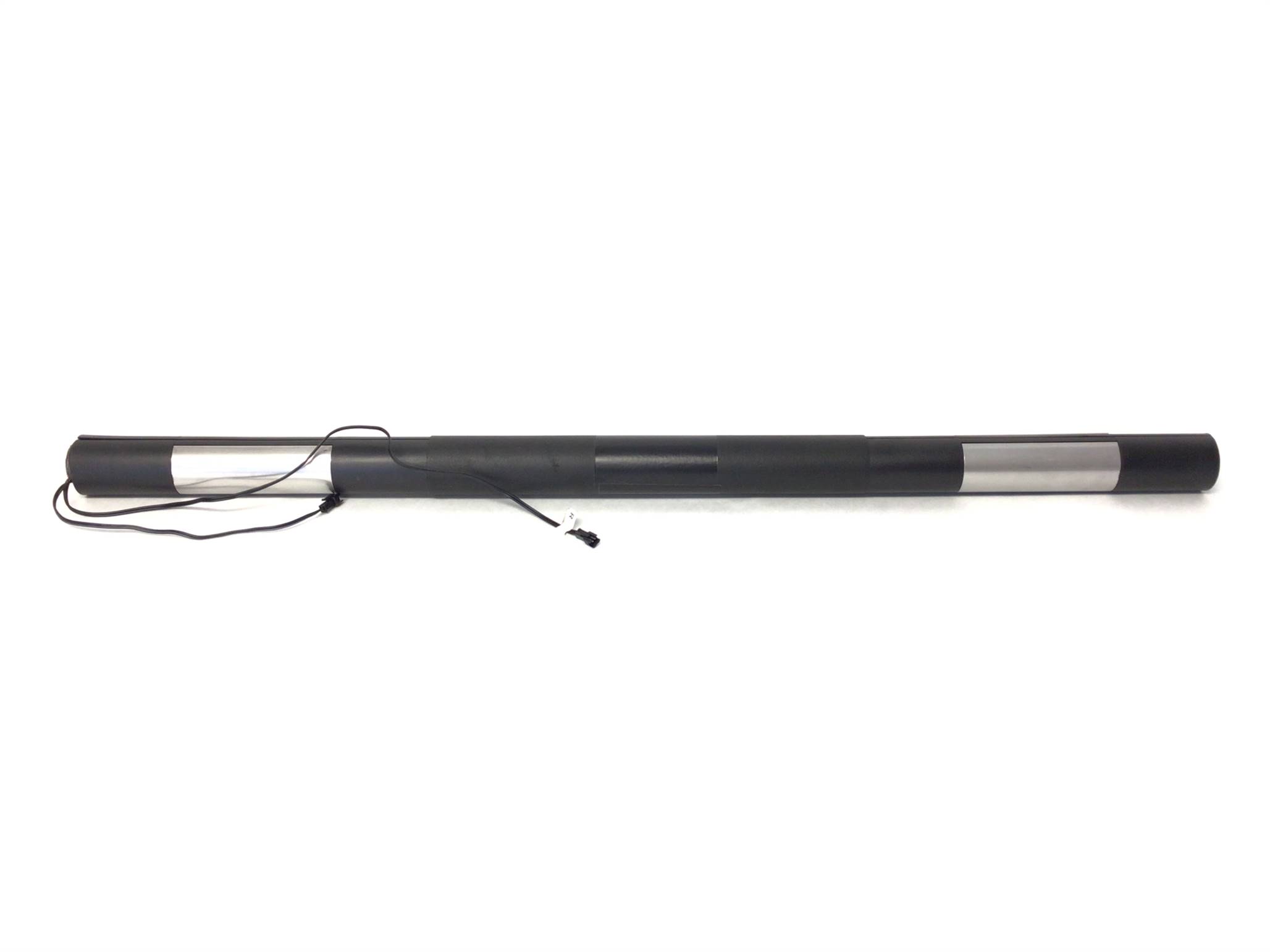

PULSE BAR ARPS HAND (Used) 1024994 151923 0 1 PULSE BAR ARPS HAND (Used) Yes Model Compatibility List $49.00 / Each

1
Front Roller Screw 013364 166435 0 1 Front Roller Screw Yes Model Compatibility List $12.99 / Each

1

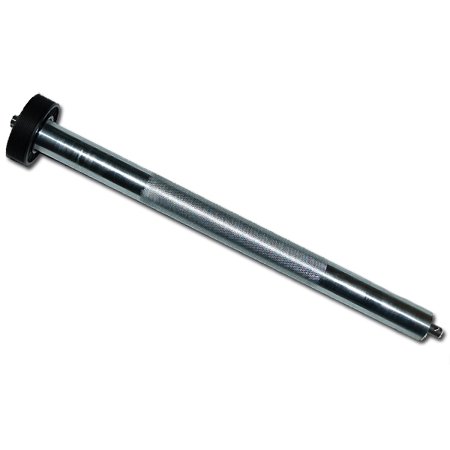

Front Drive Roller with Pulley 013375 149499 0 1 Front Drive Roller with Pulley Yes Model Compatibility List $124.99 / Each

1
Power Cord 1002864 31229 78A 1 Power Cord No Model Compatibility List $36.95 / Each

6
Drive Belt 20 1003636 224019 0 1 Drive Belt 20" Yes Model Compatibility List $32.99 / Each

23
Screw #8 X 1/2 1004209 013576 5 1 Screw #8 X 1/2" Yes Model Compatibility List $1.99 / Each

#8 X 3/4 1004394 013322 0 1 #8 X 3/4" Foot Pedal Screw No Model Compatibility List $5.99 / Each

Speed Sensor Reed Switch 2 Terminal Wire (Used) 1005353 123380 0 1 Speed Sensor Reed Switch 2 Terminal Wire (Used) No Model Compatibility List $17.99 / Each

19
Retainer Snap Ring 1006261 100488 0 1 Retainer Snap Ring No Model Compatibility List $11.99 / Each

2
Power Entry On Off Switch 1007949 144244 0 1 Power Entry On Off Switch Yes Model Compatibility List $17.99 / Each

6
Plastic Standoff Fastener 1008813 125819 19 1 Plastic Standoff Fastener Yes Model Compatibility List $2.35 / Each

2,1
Magnet 1009452 113842 137 1 Magnet Yes Model Compatibility List $1.10 / Each

8,1
RPM Incline Speed Sensor Switch 1010322 102955 0 1 RPM Incline Speed Sensor Switch No Model Compatibility List $12.33 / Each

47
Transport Wheel 1010433 148803 17 1 Transport Wheel Yes Model Compatibility List $2.52 / Each

8,45
Nylock Nut 1010890 119425 38 1 Nylock Nut Yes Model Compatibility List $0.55 / Each

2
Walking Belt Guide 1010892 198640 64 1 Walking Belt Guide Yes Model Compatibility List $18.62 / Each

15,40
Star Lock Washer 1011510 014157 0 1 Star Lock Washer Yes Model Compatibility List $11.99 / Each

Nylock Jam Nut 3/8 1011523 133945 0 1 Nylock Jam Nut 3/8" Yes Model Compatibility List $11.99 / Each

2
M4 Locknut 1011776 012152 0 1 M4 Locknut Yes Model Compatibility List $11.99 / Each

Clamp Screw 1011778 013162 0 1 Clamp Screw Yes Model Compatibility List $11.99 / Each

Reed Switch Cable Retainer Clamp 1011798 131090 114 1 Reed Switch Cable Retainer Clamp Yes Model Compatibility List $0.46 / Each

4,5,6,2,1,47
Power Entry On Off Switch 1000189 144244 Power Entry On Off Switch Yes Model Compatibility List $3.99 / Each

6
Power Supply Line Cord 1002865 31229 78A Power Supply Line Cord Yes Model Compatibility List $36.95 / Each

6
