Spirit - XT285

Repair Parts for Spirit XT285 285809

Brand: Spirit

Category: Residential Treadmills

Type: Folding Treadmill

Model Name: XT285

Serial Number Prefix: 285809

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry [email protected]

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
215045 215045 95 4 M5 10m/m_Phillips Head Screw No Model Compatibility List $0.00 / Each
Out Of Stock 		1
Quadrate Safety Key 000475 N100038-A5 75 1 Quadrate Safety Key Yes Model Compatibility List $44.99 / Each

3

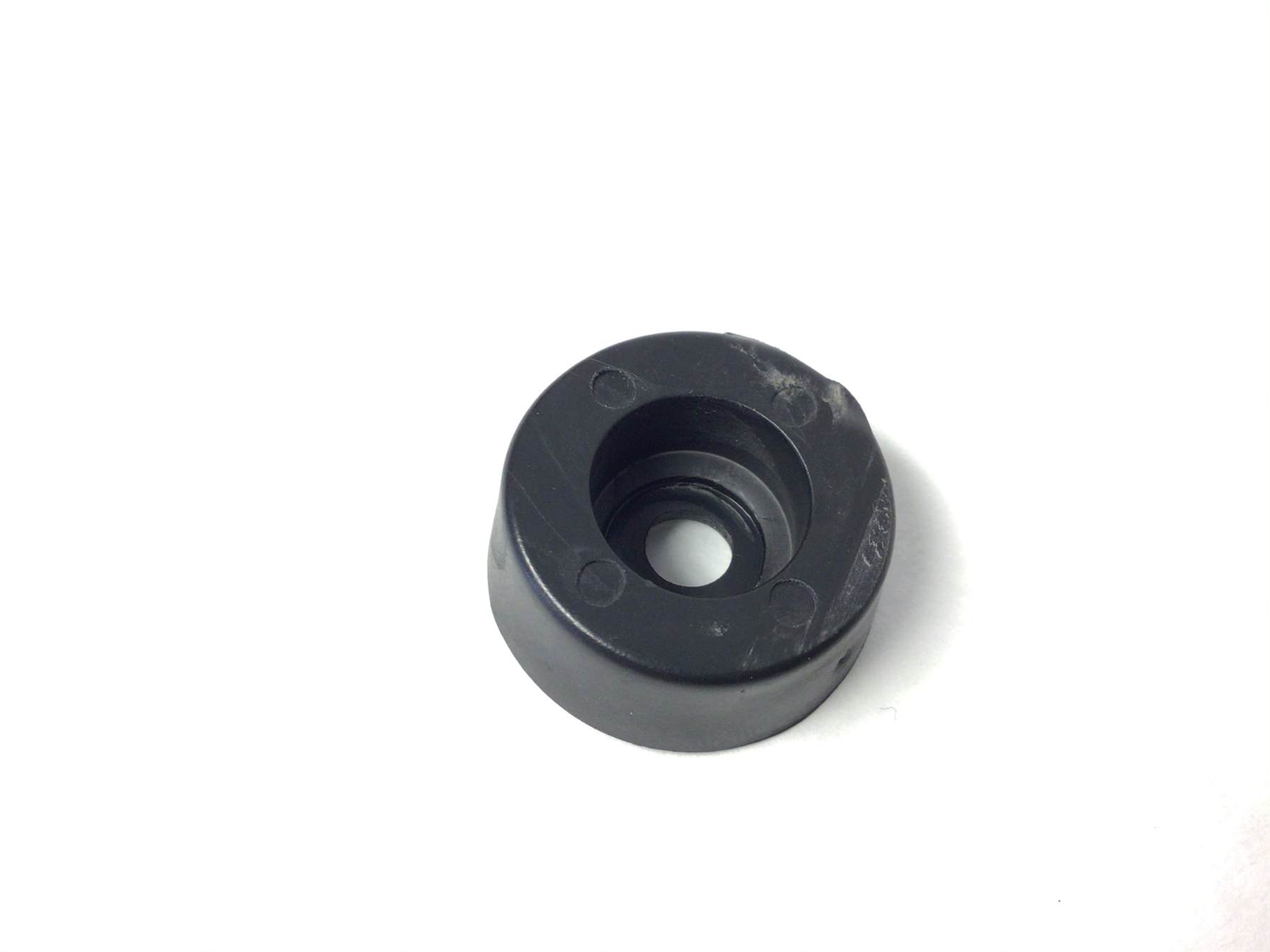

Base Leveller Foot (Used) 1020052 XT285-BLF 0 2 Base Leveller Foot (Used) No Model Compatibility List $4.99 / Each

1,13

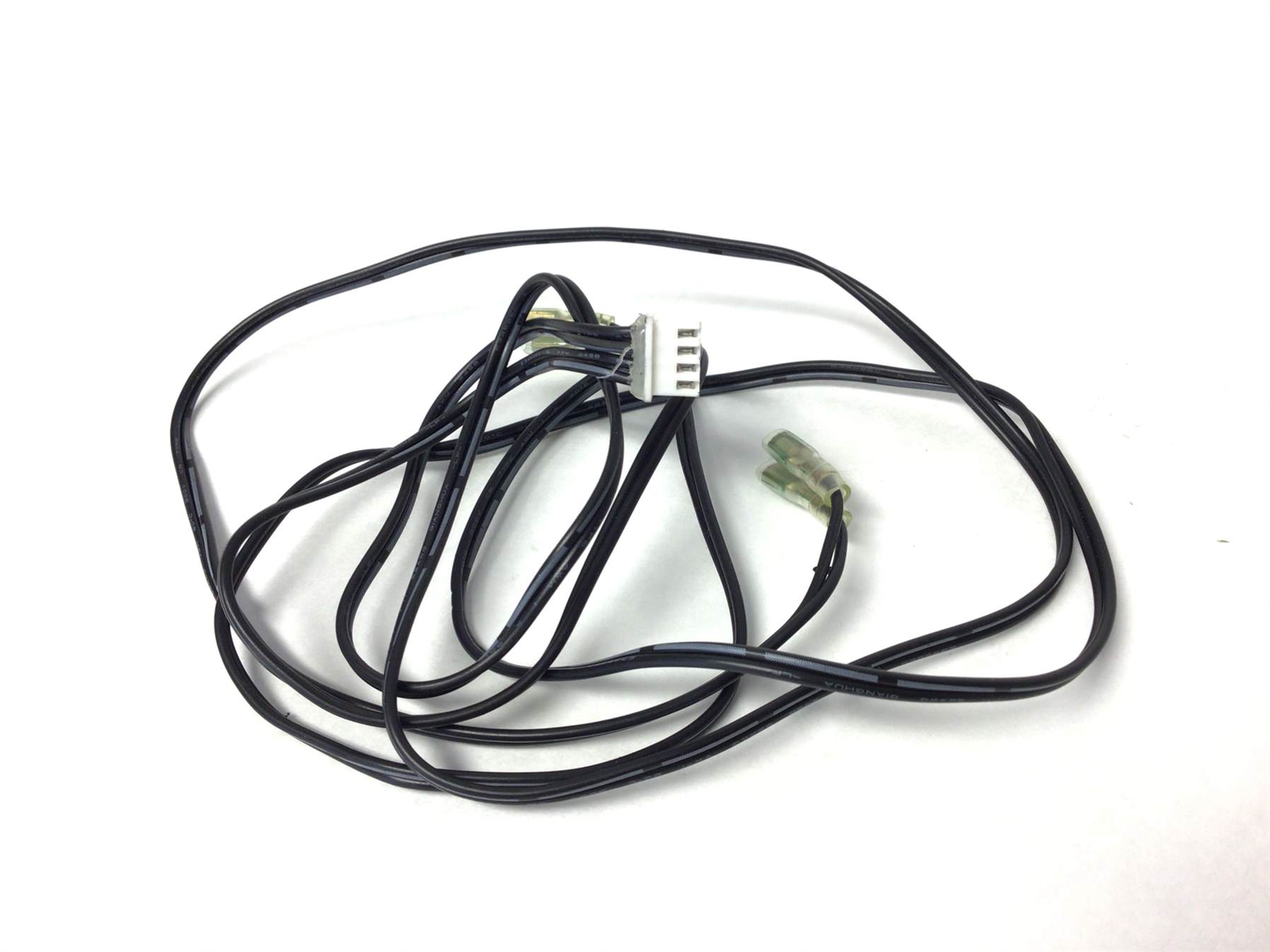

Hand Sensor Cable (Used) 1020104 XT285-HSC 0 1 Hand Sensor Cable (Used) No Model Compatibility List $6.99 / Each

4

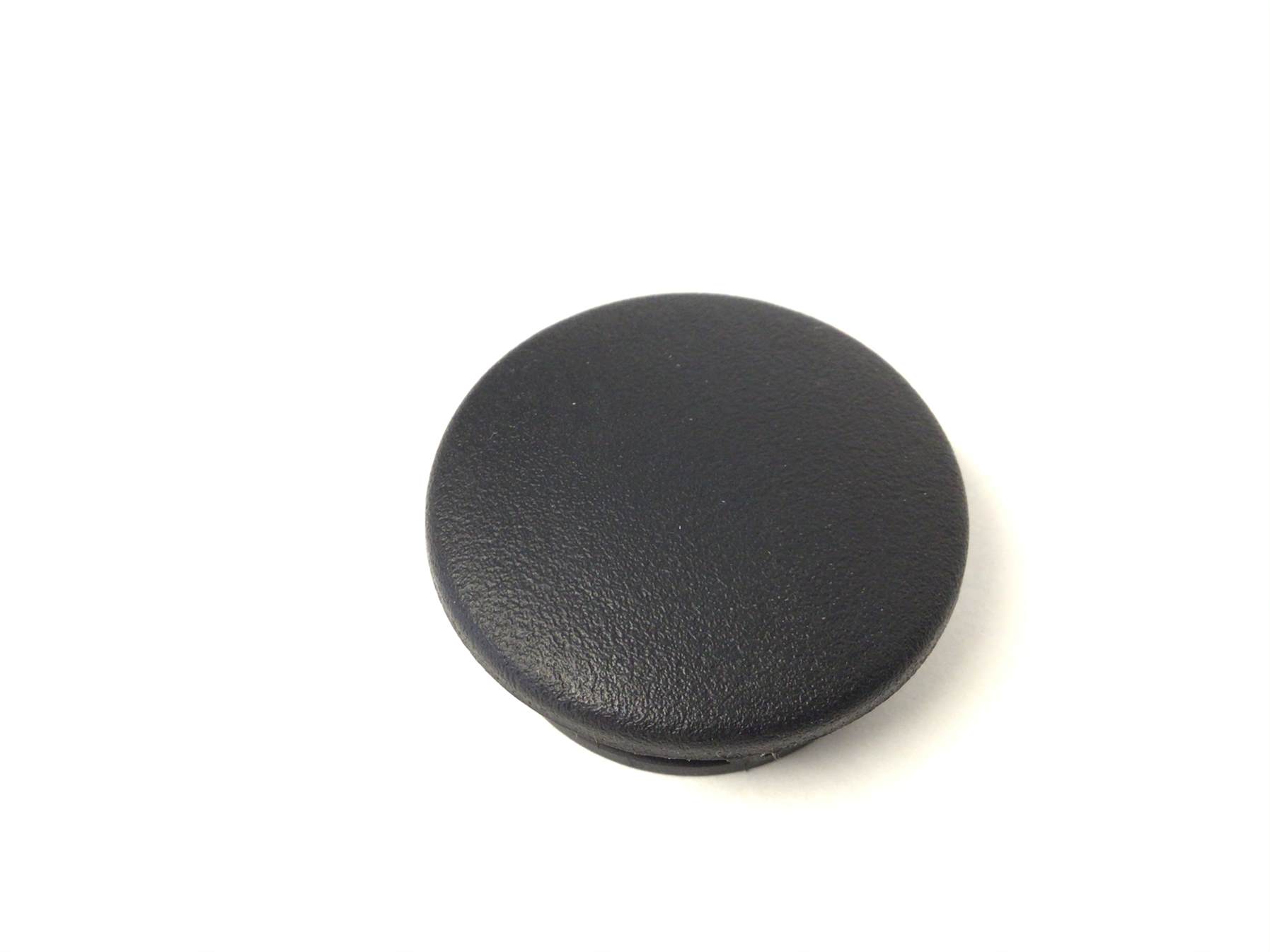

Hand sensor pulse End Cap (Used) 1020104 XT285-HSPC 0 1 Hand sensor pulse End Cap (Used) No Model Compatibility List $4.99 / Each

9
Hand sensor pulse End Cap (Used) 1020091 XT285-HSPC 30 2 Hand sensor pulse End Cap (Used) No Model Compatibility List $4.99 / Each

9
Incline Wire (Used) 1020065 XT285-IW 0 1 Incline Wire (Used) No Model Compatibility List $9.99 / Each

4
Rear Roller Bolt (Used) 1020078 XT285-RRB 0 1 Rear Roller Bolt (Used) No Model Compatibility List $9.99 / Each

2
Upper Speed Wire (Used) 1020103 XT285-USW 0 1 Upper Speed Wire (Used) No Model Compatibility List $21.99 / Each

4

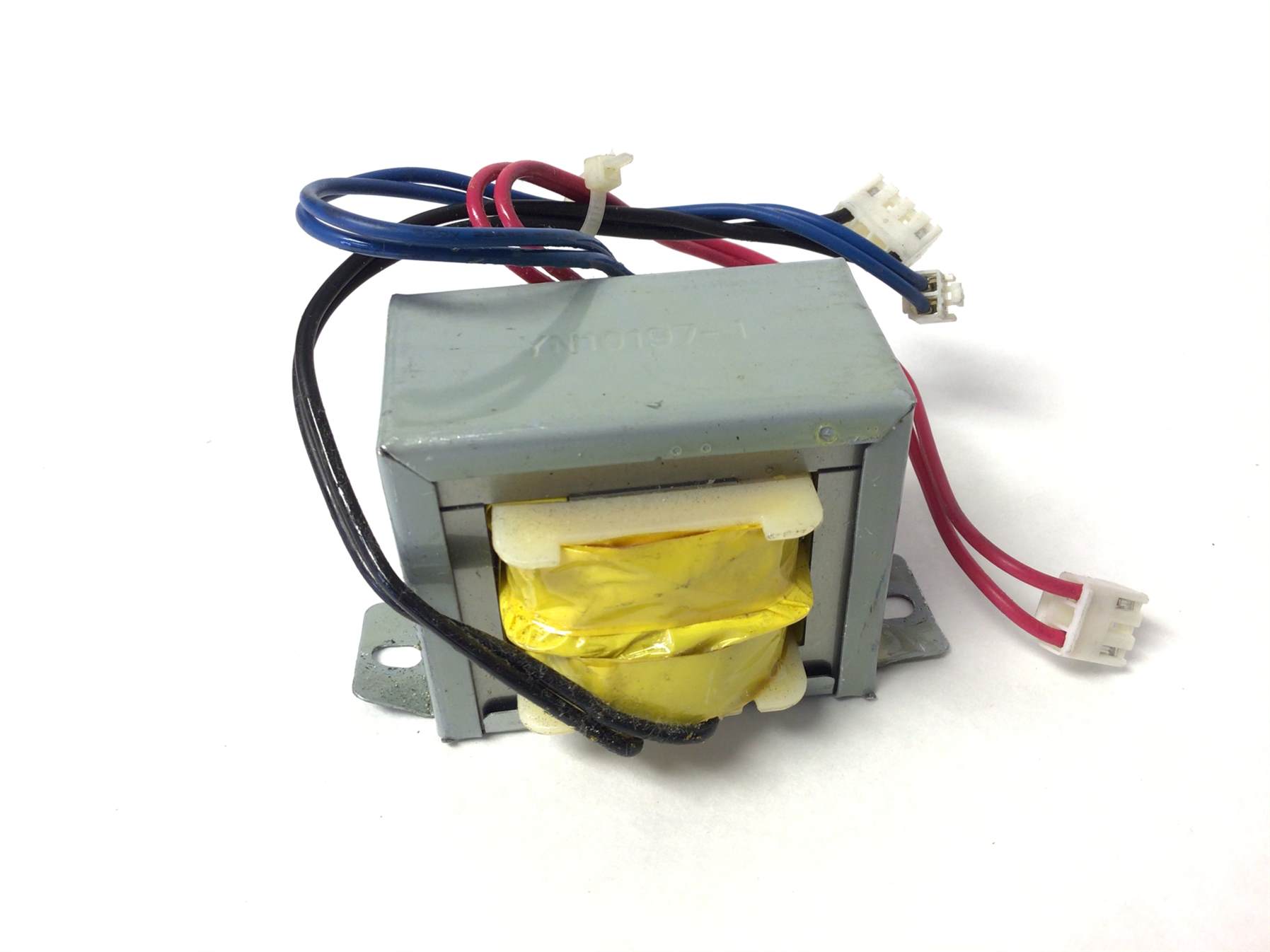

Transformer (Used) 1020090 YN10197-1 0 1 Transformer (Used) No Model Compatibility List $29.99 / Each
Out Of Stock 		6
4x38m/m_SELF TAPPING SCREW (Used) 1033113 000325 125 2 4x38m/m_SELF TAPPING SCREW (Used) No Model Compatibility List $2.00 / Each

4x38m/m_SELF TAPPING SCREW (Used) 1033113 000325 125 2 4x38m/m_SELF TAPPING SCREW (Used) No Model Compatibility List $2.00 / Each

CABLE, UPPER 700MM XT8/XT200/XT600/XT285 (Used) 1033116 000520 48 1 CABLE, UPPER 700MM XT8/XT200/XT600/XT285 (Used) No Model Compatibility List $20.00 / Each

4000040 J220003-Z1 5/16" 19 1.5T_Curved Washer No Model Compatibility List $2.74 / Each

4000259 K140016-Z3 Rear Roller (K140039-Z3) No Model Compatibility List $124.99 / Each

4000260 CRN170002B Handpulse Assembly Set w/900MM Cable No Model Compatibility List $24.99 / Each

4000261 N110031 SWITCH SPEED ADJUSTMENT 800MM No Model Compatibility List $31.24 / Each

4000263 N110015 SWITCH SPEED ADJUSTMENT W/300MM CABLE XT285(2011)/XT385(2011)/XT485(2011)/XT685 Yes Model Compatibility List $23.74 / Each

Right Angle Power Supply Cord 1001371 E060001 Right Angle Power Supply Cord Yes Model Compatibility List $24.99 / Each

Reed Switch RPM Speed Sensor 1001345 F030166 Reed Switch RPM Speed Sensor Yes Model Compatibility List $14.99 / Each
Out Of Stock 		1
Drive Motor Belt 1001452 N010001 Drive Motor Belt Yes Model Compatibility List $29.99 / Each

15
