StairMaster - 4200CL

Repair Parts for StairMaster 4200CL

Brand: StairMaster

Category: Commercial Upright Steppers

Type: Stepper

Model Number:

Model Numbers are Unique Identifiers, they are important because they lead you to access diagrams and part lists specific to the version of a given model equipment you own. Bottom line, they help you get the right part. Note: Sometimes we put a serial prefix in this field to elicit versioning, and if this field is blank that means the model name alone will suffice for part selection.

Model Name: 4200CL

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

VIEWS

Catalog #	MPN	Part List Key	Quantity On Model	Part Description	Available Used	Model Compatibility List	New price
1020180	SM20199	0	1	Drive Chain with Master Link (Used)	Yes	Model Compatibility List	$18.89 / Each	15
1020178	SM21793	0	1	Right Step Pedal With Pad (Used)	Yes	Model Compatibility List	$29.99 / Each	1
1020206	SM21794	0	1	Left Step Pedal With Pad (Used)	Yes	Model Compatibility List	$29.99 / Each	1
1020324	SM22618	0	1	Reduction Pulley (Used)	No	Model Compatibility List	$0.00 / Each Out Of Stock	8
1020310	SM22618B	0	1	Cogged Pulley Axle Shaft (Used)	No	Model Compatibility List	$0.00 / Each Out Of Stock	8

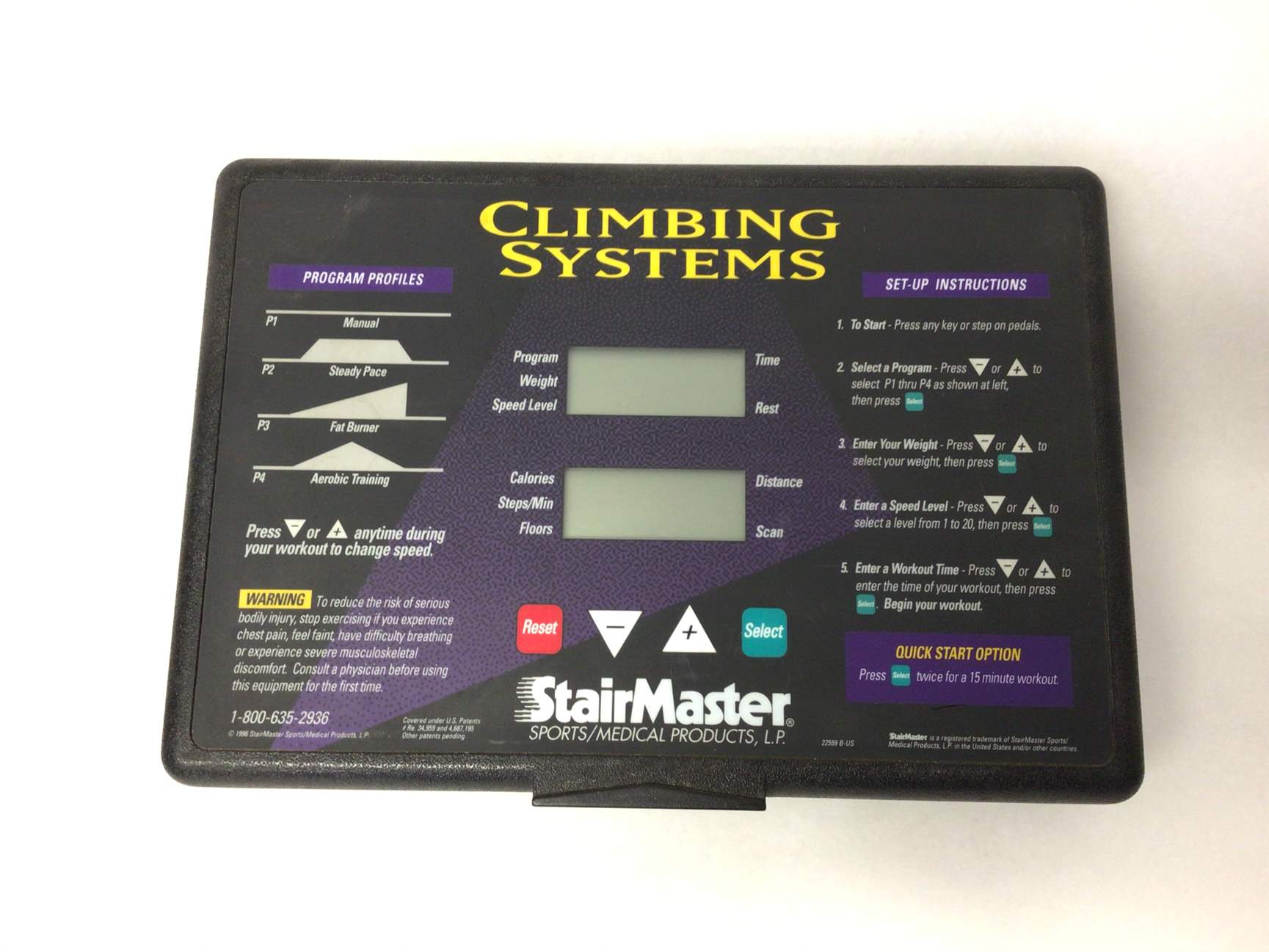

1020518	SM26001	0	1	26001 Console Display Assembly - Used	No	Model Compatibility List	$349.00 / Each Out Of Stock	7
1022296	21519	71	1	Pulley Spring (Used)	No	Model Compatibility List	$8.55 / Each	1
1022256	SM22347	33	1	Drive Chain (Used)	No	Model Compatibility List	$18.13 / Each	1
1022681	SM21093	0	1	Pedal Return Spring only (Used)	No	Model Compatibility List	$29.99 / Each Out Of Stock	1
1006360	SM20205	0		Alternator (Used)	No	Model Compatibility List	$146.69 / Each Out Of Stock	1
1023516	050-0236	0	1	2 Male Pin Power Supply Kit (Used)	No	Model Compatibility List	$99.00 / Each Out Of Stock	1
1023800	SM21519	0	1	Pulley Spring (Used)	Yes	Model Compatibility List	$8.55 / Each	1
1024179	20199	0	1	Chain Return (Used)	No	Model Compatibility List	$20.61 / Each	1
1025551	SM21511-06	0	1	Neck Cover Left Black (Used)	No	Model Compatibility List	$45.00 / Each	46
1025498	SM24954-06	0	1	Middle Cover Black (Used)	No	Model Compatibility List	$29.99 / Each	46
1025791	SM20006	0	1	Sprocket Drive Transmission (Used)	No	Model Compatibility List	$116.88 / Each	8
1025818	SM40216	0	1	Sprocket Shaft and Gear (Used)	No	Model Compatibility List	$69.00 / Each Out Of Stock	1
1000560	050-0236	0	1	2 pin AC Adapter Power Supply Adapter Cord Pack (Used)	No	Model Compatibility List	$81.99 / Each Out Of Stock	1
1000672	21794 or SM21794			Foot Pedal Left Works Stepper	Yes	Model Compatibility List	$29.99 / Each
1000673	c2			Foot Pedal Right Works Stepper	Yes	Model Compatibility List	$29.99 / Each	9
8AL2111F	20205			Bike Elliptical Alternator Generator W/Pulley	Yes	Model Compatibility List	$189.99 / Each Out Of Stock	0
1036331	20198			Bearing Thrust	Yes	Model Compatibility List	$9.99 / Each
1036319	21462			Washer SS	Yes	Model Compatibility List	$3.99 / Each
1037954	SM25454			Console Bolt 1-4 Inch -20 x 1 Inch with Nut and Washer Set (Used)	Yes	Model Compatibility List	$4.48 / Each
1004834	SM20205			Prestolite Alternator (New)	No	Model Compatibility List	$399.00 / Each	1
1009740	SM24307			Stepper Power Jack Input Wire Harness (Used)	Yes	Model Compatibility List	$40.99 / Each Out Of Stock
