Vision Fitness - T9500 - N/A

Repair Parts for Vision Fitness T9500 TM241,TC173W

Brand: Vision Fitness

Category: Non Folding

Type: Non Folding Treadmills

Model Name: T9500

Version: N/A

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry [email protected]

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
700013 000020-C2 H18 Wheel;;;Nylon;74;;;;TM08 Yes Model Compatibility List $3.82 / Each

8
700239 000760-E B42 Elastomer;White Yes Model Compatibility List $17.34 / Each

1
700240 000761-D B43 Elastomer;Yellow;12mm No Model Compatibility List $15.31 / Each

1
B 700242 000763-E B44 Elastomer;Black 90 No Model Compatibility List $16.04 / Each

700262 000808-B Z13 Water Bottle No Model Compatibility List $9.88 / Each

1
700269 000825-AA B27 Deck Extension No Model Compatibility List $1.90 / Each

3
700270 000826-00 H07 Bushings;Elevation Frame Yes Model Compatibility List $5.80 / Each

3
700288 000874-A2 H08 Rubber Stopper;AC003->TS;TM16 Yes Model Compatibility List $6.99 / Each

1
700294 000881-B2 M05 Rubber Pad;Motor;Anti-Shake No Model Compatibility List $3.67 / Each

10,12,13,14
700402 001251-F Q10 Rail Lock;Fixing Washer;Side Rail Yes Model Compatibility List $7.90 / Each

700414 001285-B2 R20 Bushing;TM42-B76B2 No Model Compatibility List $9.57 / Each

8
G 700534 001553-A G04 SLEEVE HANDLEBAR END Yes Model Compatibility List $7.10 / Each

3,9,11
P 700568 001675-00 P14 Bushing,;Strain Relief (SR-7R1 (110V)) No Model Compatibility List $1.90 / Each

8
P 700749 002130-00 P26 Power Cord;110V/14AWG Yes Model Compatibility List $60.22 / Each

4,19,42

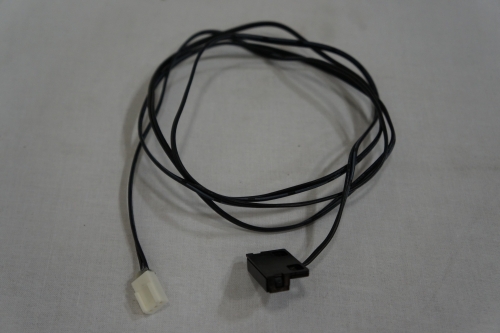

P 700776 002254-D2 P16 Sensor Wire;1250(OKI Magnet Reed Tube+2. Yes Model Compatibility List $25.17 / Each

3,4,5,6,8
700838 002499-B2 P09 Power Wire;Control Board;14AWG;White Yes Model Compatibility List $3.43 / Each

700840 002500-B2 P08 Power Wire;Control Board;14AWG;Black Yes Model Compatibility List $3.43 / Each

701013 003326-00 P02 Power Switch;Large;RF-1004 Yes Model Compatibility List $32.71 / Each

P 701018 003340-C P03 Circuit Breaker;20A/110V - D/C, NO REPL Part will show as orderable until stock is depleted Yes Model Compatibility List $37.75 / Each

1
701044 003415-00 R19 Magnet;Front Roller;10X3T No Model Compatibility List $1.90 / Each

8
N 701084 003623-00 NOT SHOWN Motor Brush;3.0HP;Cambridge No Model Compatibility List $8.22 / Each

10
701102 003830-B M25 Drive Pulley;Motor No Model Compatibility List $19.16 / Each

8,10

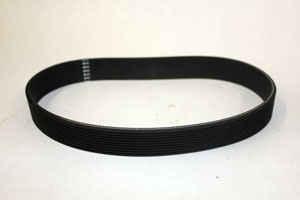

R 701216 004179-00 R12 Drive Belt;Poly-V;200-J10 Yes Model Compatibility List $100.36 / Each

15
701283 004350-Z P52 BOLT BH M3X6 No Model Compatibility List $2.00 / Each

2
B 701284 004351-00 B60 Screw;Umbrella Coss;M3x0.5Px10L No Model Compatibility List $2.00 / Each

Q 701316 004372-00 Q22 Screw;Phillip;BH;M5x0.8Px12L;Gap No Model Compatibility List $2.00 / Each

701331 004384-00 B28 Screw;Phillip;BH;M5x0.8Px30L;Ni;Gap; No Model Compatibility List $2.00 / Each

701343 004389-00 B29 Screw;Phillip;BH;M5x0.8Px16L;BED; No Model Compatibility List $2.00 / Each

2
701375 004425-B Q11 Screw;Phillip;Sink;Tapped;5x15L; No Model Compatibility List $2.00 / Each

701440 004483-00 R15 Screw;Round Hex Socket;M8x1.25Px25L No Model Compatibility List $1.79 / Each

Z 701449 004493-00 Z19 Screw;Hex Socket;Round;M8x1.25Px16L No Model Compatibility List $1.79 / Each

701451 004496-00 R14 Screw;Hex Socket;Round;M10x1.5Px90L Yes Model Compatibility List $11.80 / Each

701530 004562-00 B31 Bolt;Deck;M8x1.25Px35L Yes Model Compatibility List $5.85 / Each

2
M 701550 004577-00 M19 Screw;Round Hex Socket;5/16-18UNCx3/4L No Model Compatibility List $1.79 / Each

701560 004591-00 H10 Screw;Hex;3/8-16UNCx75L/Tooth20L; No Model Compatibility List $4.00 / Each

2
701561 004592-00 M18 Screw;Hex;3/8-16UNCx45L/Tooth15L; No Model Compatibility List $2.00 / Each

701591 004620-00 B30 Screw;Self Tapping;4x12L No Model Compatibility List $2.00 / Each

701612 004631-00 Q04 Screw;Phillip;BH;Tapped;4x25L No Model Compatibility List $2.00 / Each

701637 004667-00 M11 Screw;Wagon;3/8-16UNCx20L No Model Compatibility List $1.79 / Each

2
M 701644 004678-00 M10 Bolt;Eye Hook; 1/4"-20UNCX55L No Model Compatibility List $1.79 / Each

701690 004719-00 B46 Bolt;Hex Socket;M8x1.25Px12L No Model Compatibility List $2.00 / Each

2
701750 004774-00 G05 Long Handrail Button HeadScrew;Umbrella Hex Socket;M8X135L(20L) Yes Model Compatibility List $5.90 / Each

2
Z 701841 004859-00 Z17 Screw;Umbrella Hex Scoket;M8x1.25Px20L No Model Compatibility List $2.00 / Each

2
H 701864 004887-00 H16 Nut;Hex;3/8-16UNC No Model Compatibility List $2.00 / Each

701866 004889-00 B36 Nut;Hex;M5x0.8P;Nickel No Model Compatibility List $2.00 / Each

701897 004926-00 B35 Nut;Nylon;M8x1.25P No Model Compatibility List $2.00 / Each

701902 004930-00 M15 Nut;Nylon;1/4"-20UNC;Generator Axle No Model Compatibility List $2.00 / Each

2,8
701908 004934-00 M17 Nut;Nylon;3/8 No Model Compatibility List $1.59 / Each

H 701912 004941-00 H20 Nut;Nylon;M10x1.5P No Model Compatibility List $2.00 / Each

701964 005005-00 Z24 Washer;Spring;Lock;8.2x15.4x2.0t No Model Compatibility List $1.59 / Each

701968 005007-00 H11 Washer;Spring;12.2x21.5x3.0t No Model Compatibility List $2.00 / Each

702025 005058-00 H13 Washer;Flat;12x26x2.0T No Model Compatibility List $2.00 / Each

702030 005062-00 M08 Washer;Flat;10.2x19x2.0T;Chromed No Model Compatibility List $1.59 / Each

702033 005065-00 H14 Washer;Flat;10x30x2.0T;Black Zinc No Model Compatibility List $2.00 / Each

702040 005070-00 M14 Washer;Flat;6.5x14x1.0T;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
B 702050 005078-00 B51 Washer;Flat;5.3x10x1.0T;Black Zinc No Model Compatibility List $2.00 / Each

R 702073 005104-00 R16 Washer;Flat;8.2x16.0x0.8T No Model Compatibility List $2.00 / Each

R 702122 005146-AB R17 Washer;Flat;10.5x20.0x2.0T;Black Zinc No Model Compatibility List $1.79 / Each

702160 005196-00 M28 Washer;Teflon;10.5x20.0x1.0T No Model Compatibility List $1.59 / Each

702217 005330-00 B37 Tinnamen Nut Yes Model Compatibility List $1.59 / Each

702456 007528-BX AB5 Belt Guide Yes Model Compatibility List $5.98 / Each

15
702831 011179-00 H17 Washer;Teflon;M12x30Px1T No Model Compatibility List $4.00 / Each

2

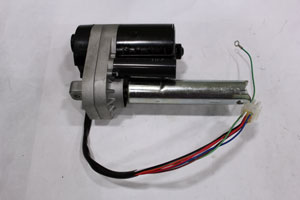

M 702852 012801-00 M03 Elevation Motor;110V Yes Model Compatibility List $383.27 / Each

10
703362 013732-B M02 Motor Control Board No Model Compatibility List $574.91 / Each

7,10
703443 014686-C AR2 Rear Roller Set Yes Model Compatibility List $191.62 / Each

8
703468 014800-00 P15 Painting;Fix Plate;BL;;;;TM19 No Model Compatibility List $9.57 / Each

3
703508 015054-AD B25 Fix Plate;Side Rail No Model Compatibility List $2.44 / Each

9,3
A 703828 018356-B AB6 GUIDE BELT LEFT Yes Model Compatibility List $14.01 / Each

15
703994 020077-00 H09 Screw;Hex Socket;Round;M12X1.75PX60L(30L) No Model Compatibility List $4.00 / Each

2
C 704049 020134-00 C03 Counter Sunk Flat Head Screw;Hex Socket;M8X1.25X60L-20L;Partial Yes Model Compatibility List $4.65 / Each

2
704169 020401-00 H15 Nut;Nlk;M12X1.75P No Model Compatibility List $0.83 / Each

2
704608 024305-A NOT SHOWN HARDWARE KIT BLUE No Model Compatibility List $25.90 / Each

1
704623 024546-C AR1 Front Roller Set Yes Model Compatibility List $249.13 / Each

8

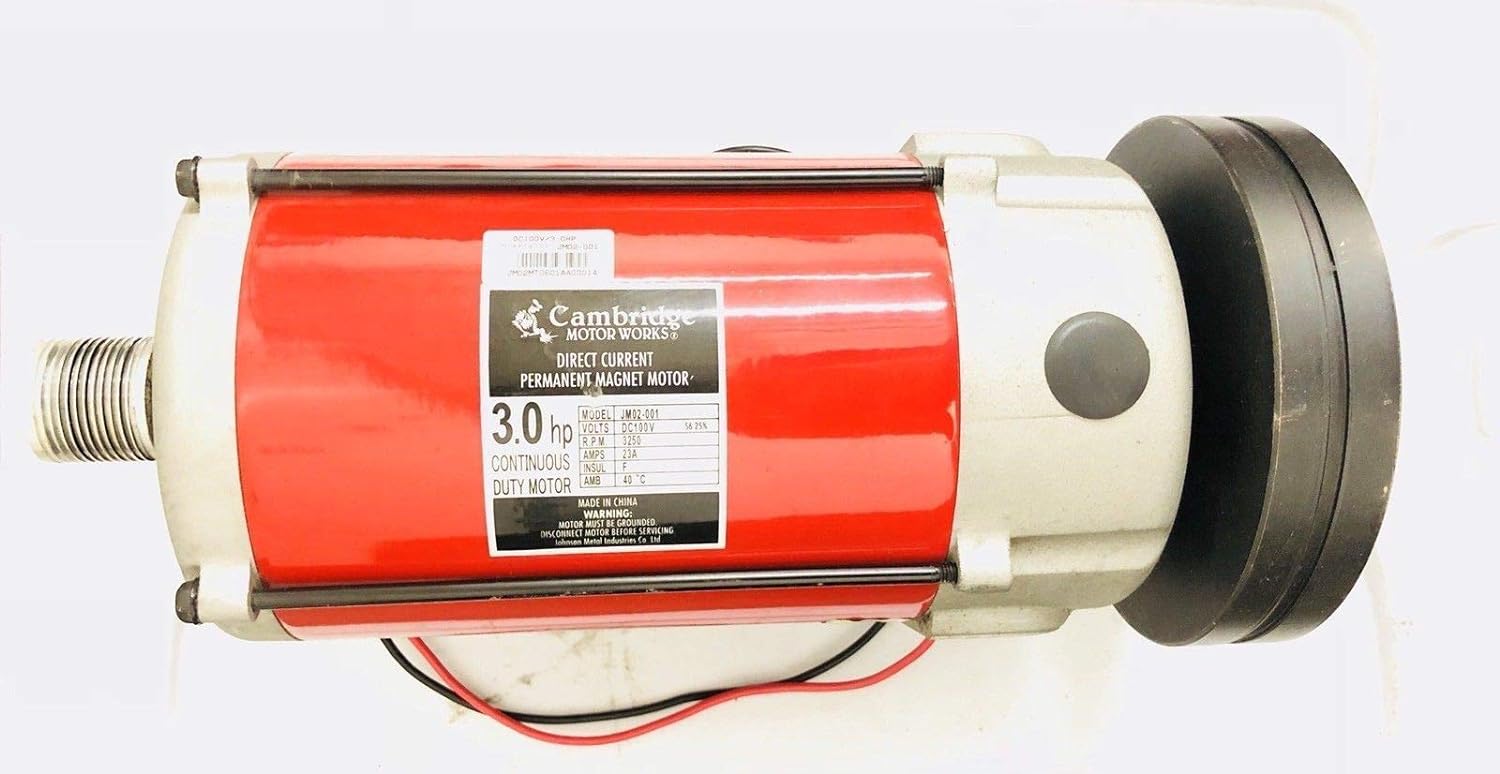

M 704934 026412-Z M01 Drive Motor;3HP;Cambridge;Analog Yes Model Compatibility List $958.20 / Each

1

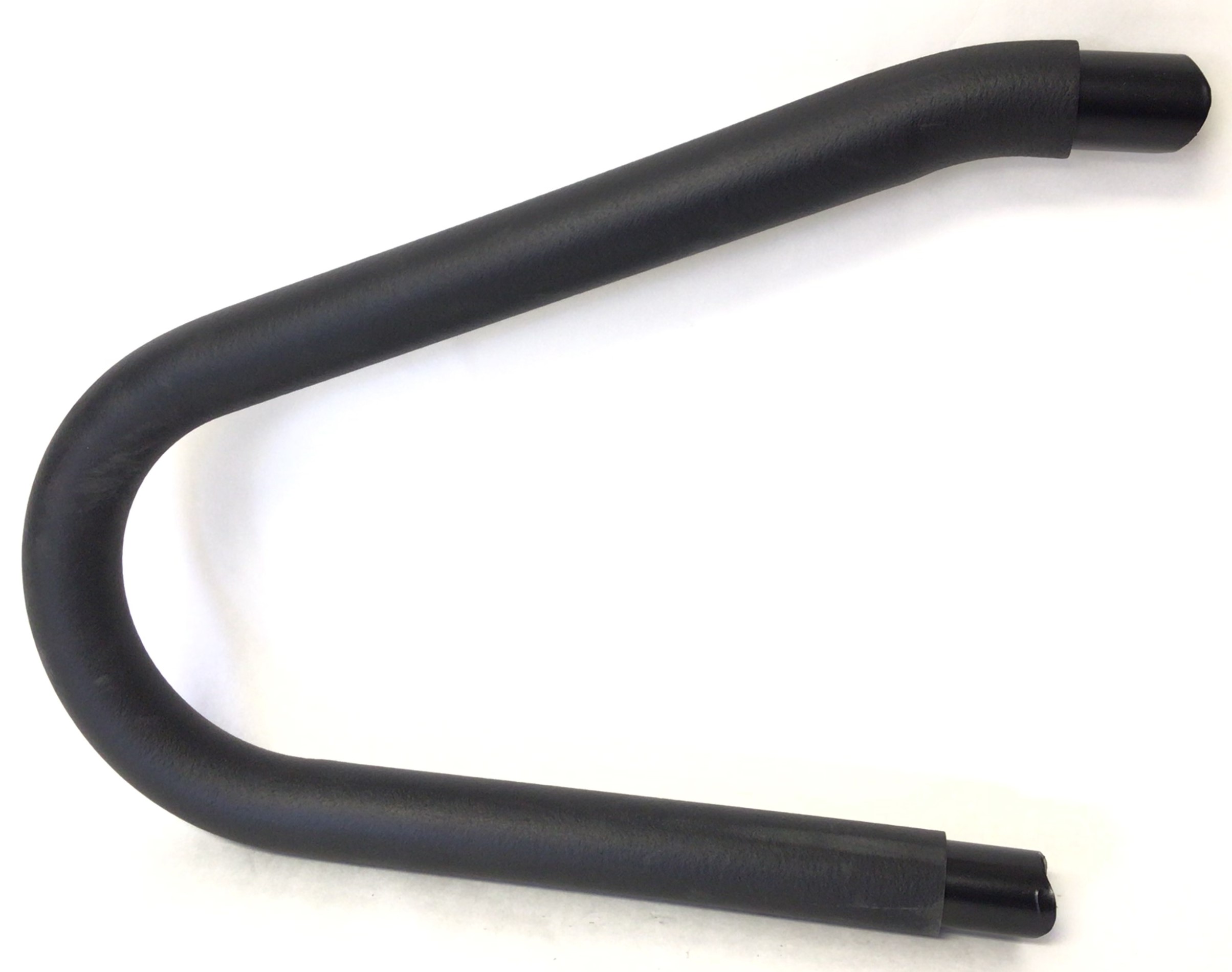

A 704946 026574-Z AG1 HANDLEBAR ASSEMBLY Yes Model Compatibility List $58.76 / Each

3,11
P 705072 035097-AA P04 Console Cable;8 Pin;3000mm Yes Model Compatibility List $38.53 / Each

4,5,6,7,12,13,14
705115 037769-AB AH1 Elevation Rack D/C, NO REPL: Part will show as orderable until stock is depleted No Model Compatibility List $89.91 / Each

4,5,6,10
705327 047111-AB M06 BRACKET MOTOR No Model Compatibility List $19.08 / Each

2,3,4,5,6,10
705353 048928-AA Q05 SLEEVE MAST CONSOLE No Model Compatibility List $9.57 / Each

7,3
705433 049155-BA Q02 SIDE RAIL No Model Compatibility List $75.76 / Each

9
705592 051806-ACX Q01 Motor Cover;Back Half No Model Compatibility List $82.81 / Each

9,4,5,6,10

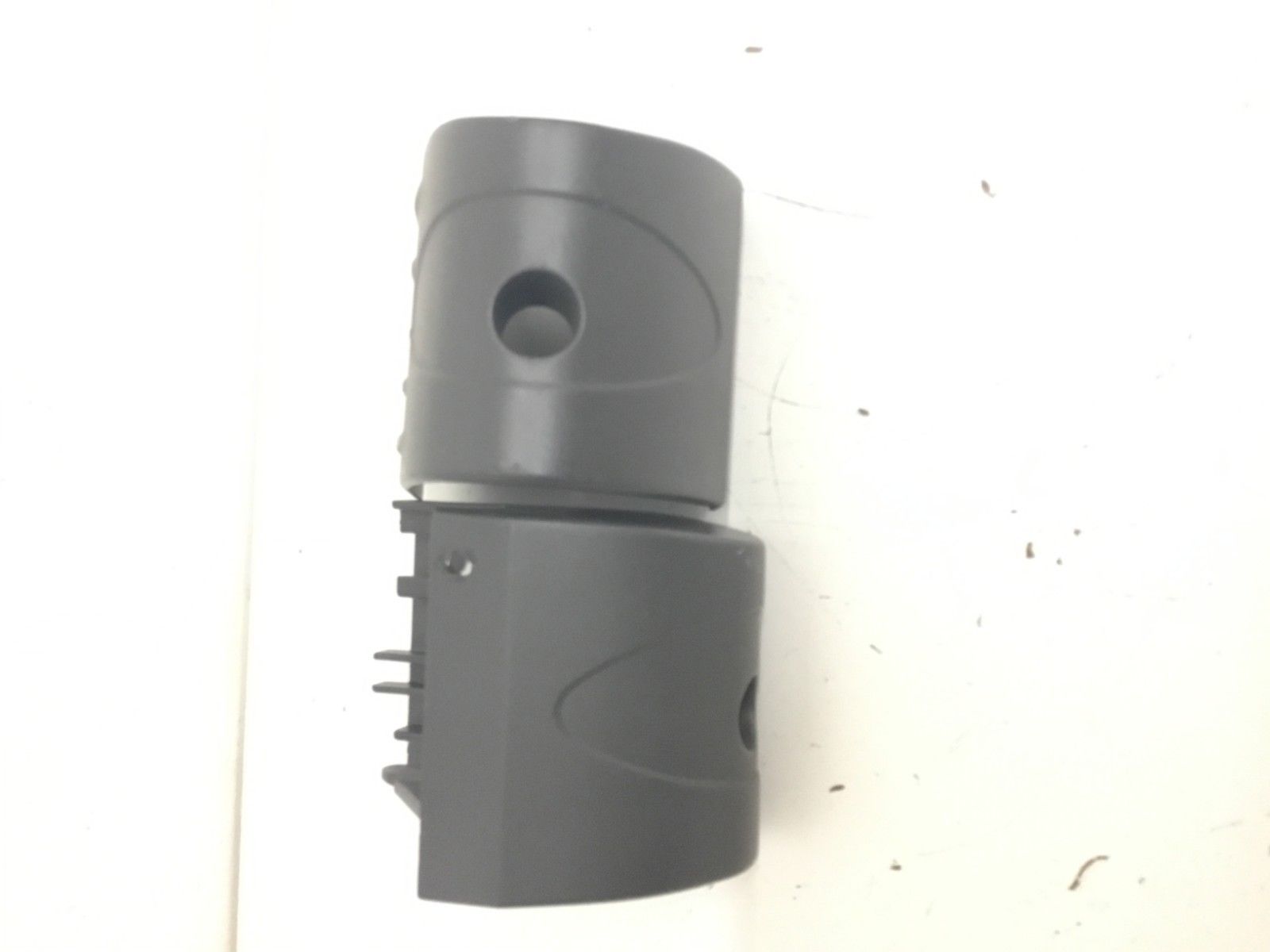

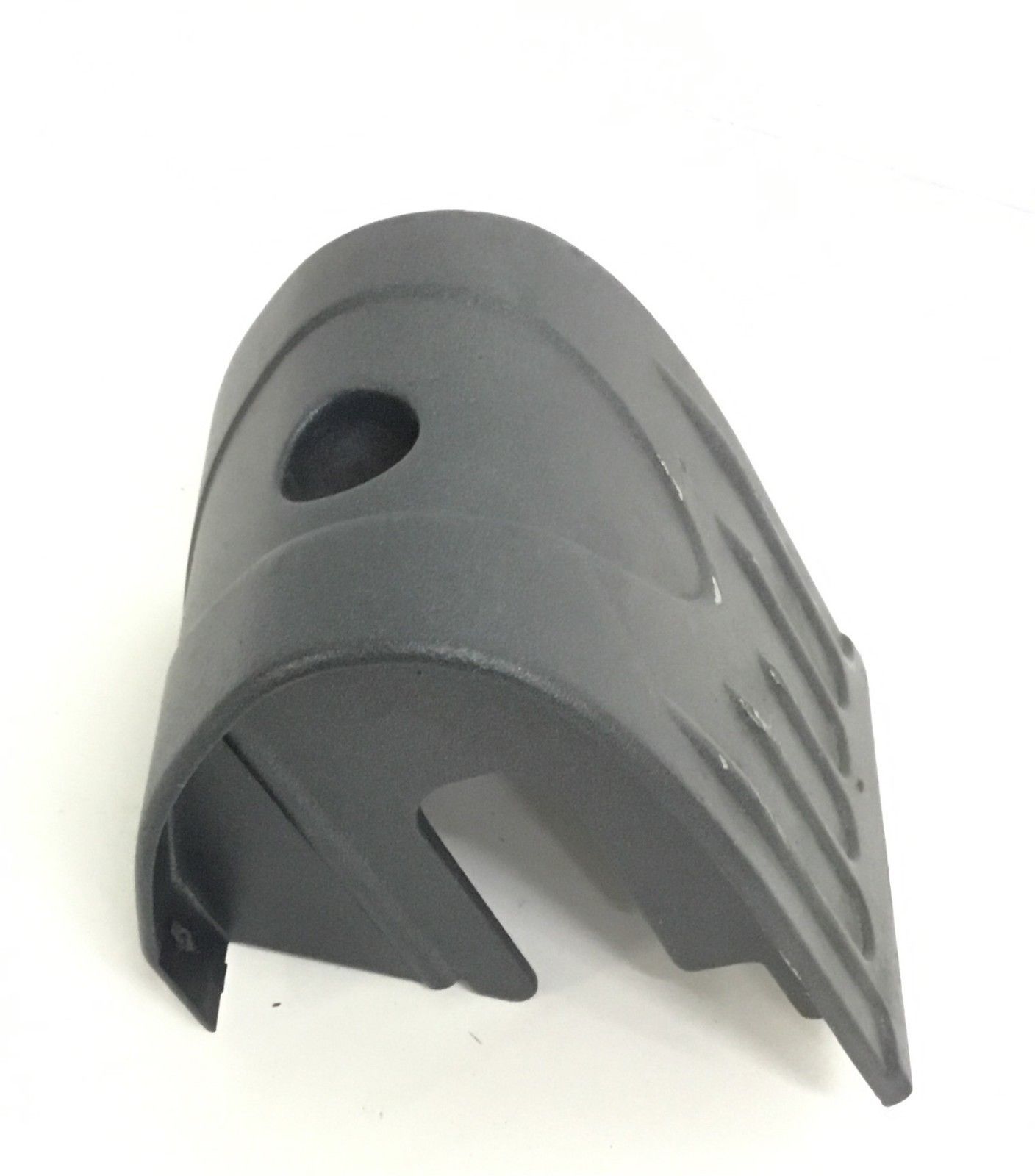

Q 705593 051807-ACX Q07 END CAP SIDE RAIL LEFT Yes Model Compatibility List $37.83 / Each

9
Q 705594 051808-ACX Q08 END CAP SIDE RAIL RIGHT Yes Model Compatibility List $37.83 / Each

9
705596 051809-ADX Q13 COVER MOTOR FRONT W/DECAL No Model Compatibility List $83.59 / Each

7,9,3,10
706655 064226-AX V01 DECAL COVER MOTOR VF No Model Compatibility List $71.06 / Each

7,9,3,10
B 709277 1000111750 B32 Leveler Yes Model Compatibility List $4.37 / Each

3
709397 1000114067 V30 DECAL SIDE FRAME No Model Compatibility List $26.08 / Each

7,3
710402 1000210088 B26 DECK RUNNING 605X1265X25.4 No Model Compatibility List $287.46 / Each

3
R 710403 1000210089 R13 Running Belt;503X2942X4.4;Ortho No Model Compatibility List $574.91 / Each

15
Console Cable;6 Pin;3000mm(Used) 1012776 035097-AA-00 1 Console Cable;6 Pin;3000mm(Used) Yes Model Compatibility List $15.59 / Each

5

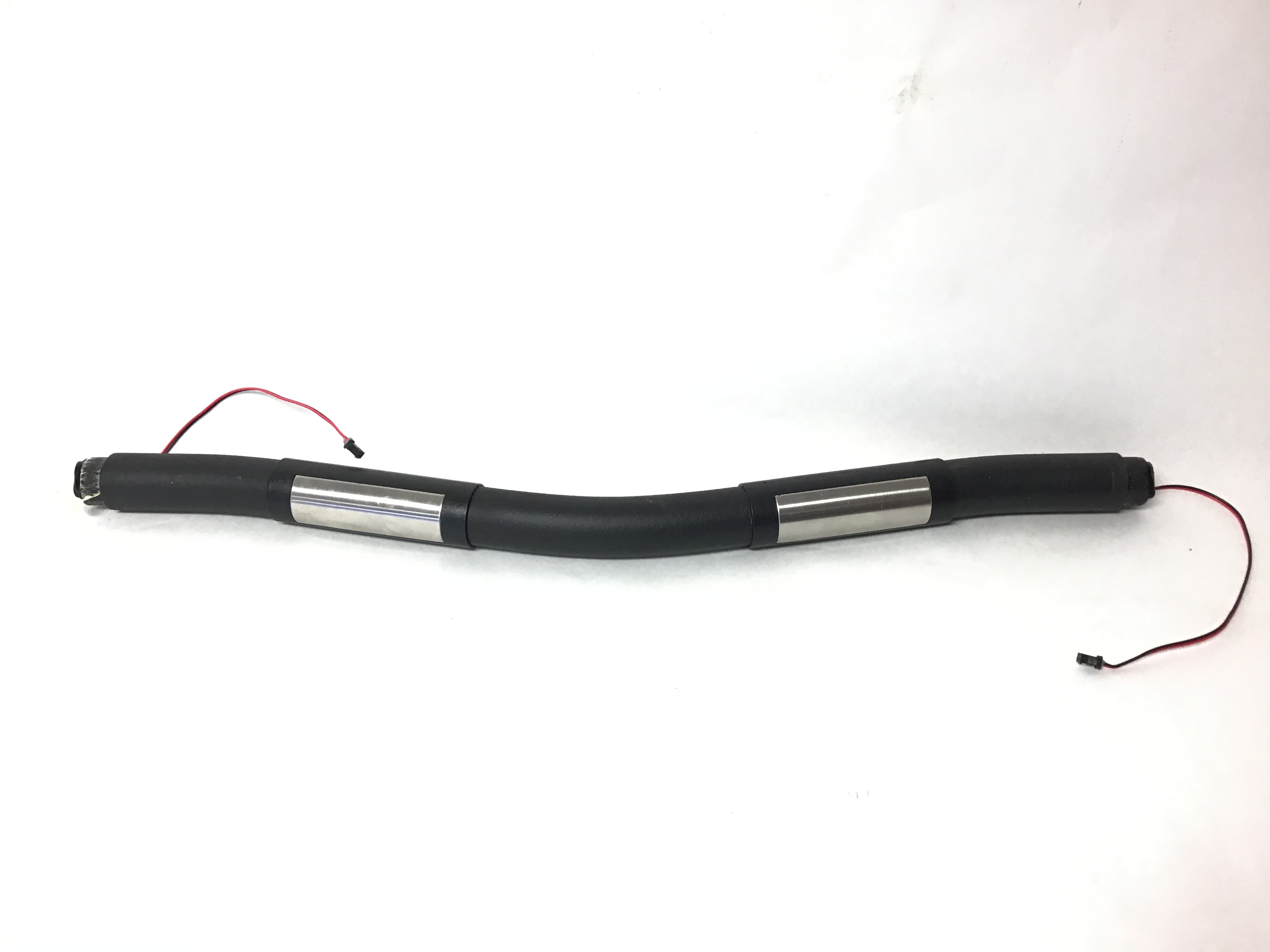

Contact HR Bar (used) 1014121 026607-Z # 1 Contact HR Bar (used) Yes Model Compatibility List $115.70 / Each

3

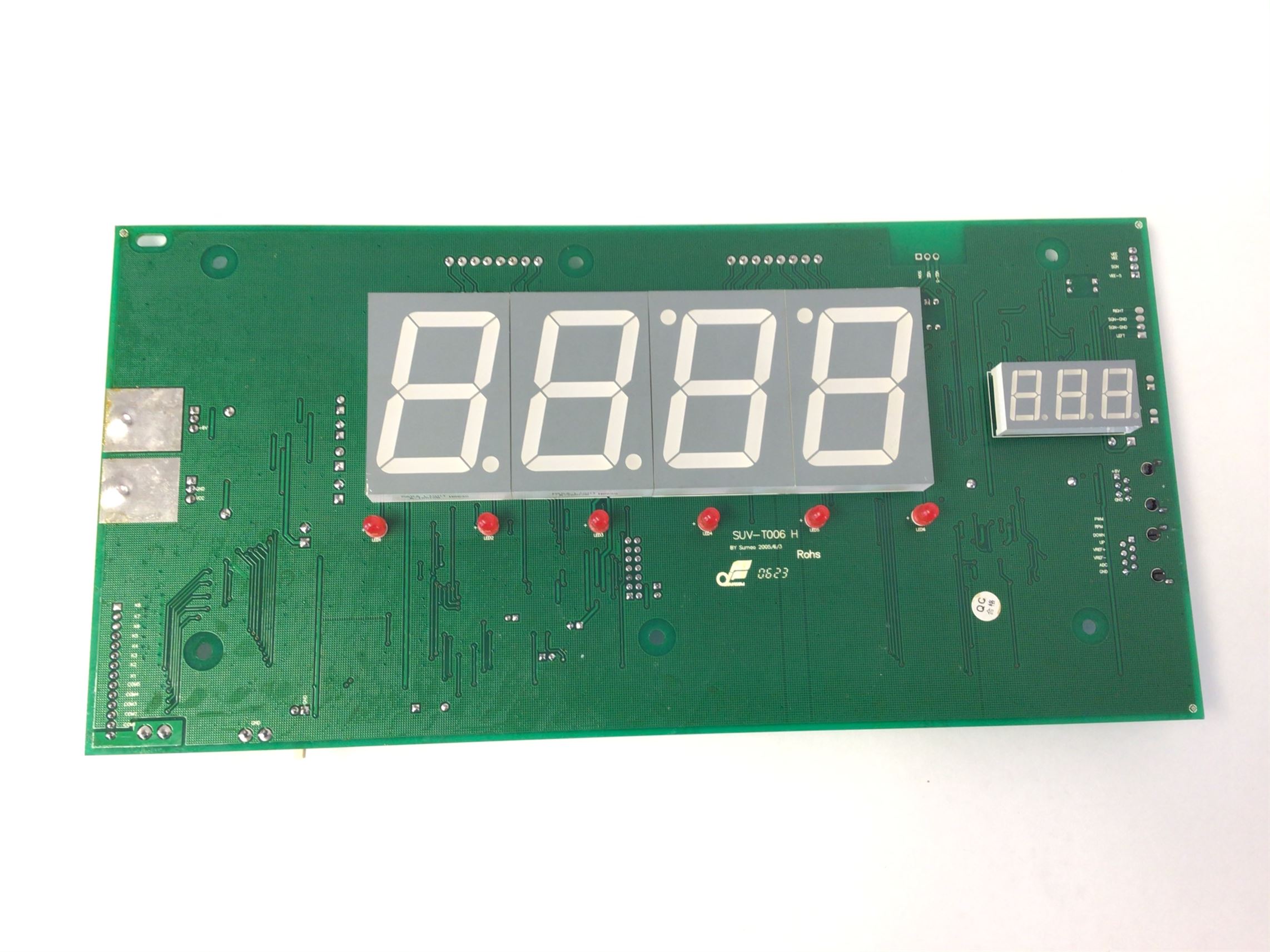

SIMPLE ELECTRONICS CIRCUITBOARD - DISPLAY CONSOLE 1020585 057764-aax 0 1 SIMPLE ELECTRONICS CIRCUITBOARD - DISPLAY CONSOLE No Model Compatibility List $258.70 / Each

7
B 1020890 000763-E B44 1 Red Elastomer Version - Used No Model Compatibility List $7.79 / Each

Red Deck Cushion Isolator (Used) 1021191 000760-E-Red B30 2 Red Deck Cushion Isolator (Used) Yes Model Compatibility List $12.99 / Each

3
P 1001381 003326-00 P02 1 Power Switch Yes Model Compatibility List $29.99 / Each

B 1003973 1000111750 B32 Leveling Foot Leveler Yes Model Compatibility List $12.99 / Each

3

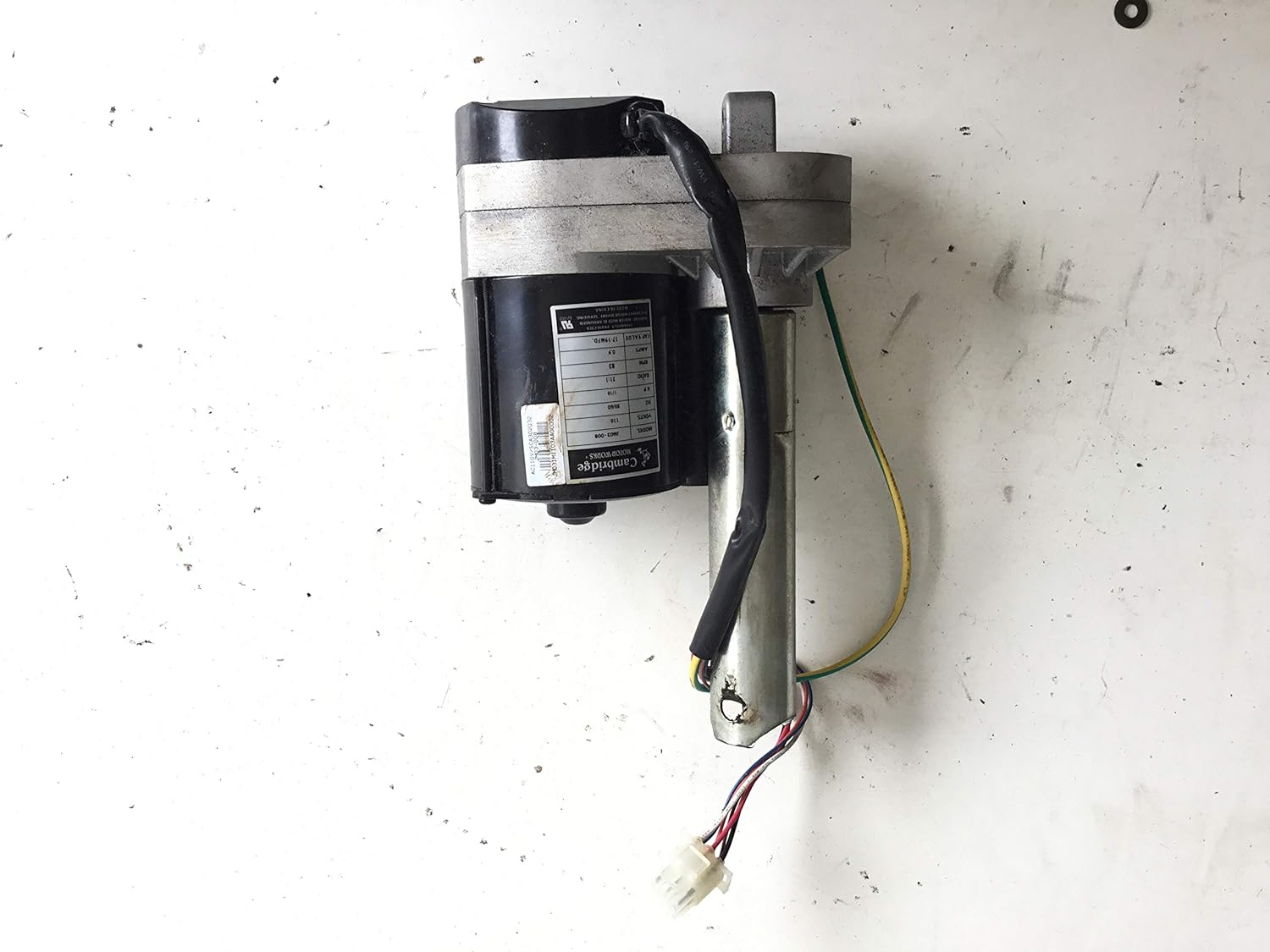

M 1003972 012801-00 M03 Incline Motor Elevation Actuator Yes Model Compatibility List $299.00 / Each
10
A 1003975 024546-C AR1 Front Drive Roller Yes Model Compatibility List $86.99 / Each

8
P 1000573 003326-00 P02 Power Entry Switch On/Off Yes Model Compatibility List $20.99 / Each

P 1002368 003340-C P03 Circuit Breaker Yes Model Compatibility List $22.99 / Each

1
Rear Back Roller Set 1002235 009809-A Rear Back Roller Set Yes Model Compatibility List $69.99 / Each
Out Of Stock
M 1002230 026412-Z M01 Analog Drive Motor Yes Model Compatibility List $299.00 / Each
Out Of Stock 		1
DC 3HP Analog Drive Motor 1002859 026623-Z1 DC 3HP Analog Drive Motor Yes Model Compatibility List $390.99 / Each
Out Of Stock
M 1002231 026412-Z M01 Analog Drive Motor Yes Model Compatibility List $1.00 / Each

1
RPM Speed Sensor Reed Switch 1002371 002254-B RPM Speed Sensor Reed Switch Yes Model Compatibility List $14.99 / Each

4,19,42
GUIDE BELT RIGHT 1036756 018355-B GUIDE BELT RIGHT Yes Model Compatibility List $9.00 / Each

M 701972 005010-00 M16 Spring Lock Washer 10.75x17.2x2.16T (New) No Model Compatibility List $12.99 / Each

R 1020604 004483-00 R15 Front Roller Screw M8-1.25"x25mm No Model Compatibility List $11.99 / Each

P 1009784 003347-00 P03 Circuit Breaker QMB-152-11C3N-3BA (New) Yes Model Compatibility List $28.99 / Each

P 1034434 003326-00 P02 Power Entry On Off Switch EP212 Yes Model Compatibility List $16.99 / Each

P 4K-UYTS-4IA5 003326-00 P02 Power Switch on Off (New) Yes Model Compatibility List $29.99 / Each

P 971727 002500-B2 P08 Control Board Power Wire Harness Black (New) Yes Model Compatibility List $15.99 / Each

P 971720 002499-B2 P09 Control Board Power Wire Harness White (New) Yes Model Compatibility List $15.99 / Each

Nut Locking Nylon 3/8 912107 1000465333 Nut Locking Nylon 3/8 No Model Compatibility List $11.99 / Each

B 911968 004620-00 B30 Self Tapping Screw 4X12L (New) No Model Compatibility List $12.99 / Each

B 976932 004926-00 B35 Nylon Lock Nut M8x1.25P (New) No Model Compatibility List $12.99 / Each

B 957398 005330-00 B37 Gear Rower Retainer Clip (New) Yes Model Compatibility List $11.99 / Each
