Weslo - PURSUIT T 3.8

Repair Parts for Weslo PURSUIT T 3.8 WLEX917080

Brand: Weslo

Category: Residential Recumbent Bikes

Type: Stationary Bikes

Model Name: PURSUIT T 3.8

Exploded Diagrams

Other Languages Available

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry [email protected]

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
ROLLER MAGNET 100081 113842 38 ROLLER MAGNET Yes Model Compatibility List $1.10 / Each

8,1
4MM ALLEN WRENCH 100086 119894 # 4MM ALLEN WRENCH No Model Compatibility List $1.58 / Each

2,1
M6 NUT 100663 012111 32 M6 NUT Yes Model Compatibility List $3.31 / Each

M6 LOCKNUT 101429 012142 63 M6 LOCKNUT No Model Compatibility List $1.98 / Each

RSW CLAMP 100079 131090 22 RSW CLAMP Yes Model Compatibility List $0.46 / Each

4,5,6,2,1,47
M4 X 13MM SCREW 101030 013162 47B M4 X 13MM SCREW Yes Model Compatibility List $1.26 / Each

M5 X 6MM SCREW 101801 013585 66 M5 X 6MM SCREW Yes Model Compatibility List $1.65 / Each

MOTOR WASHER 100790 014039 67 MOTOR WASHER No Model Compatibility List $3.56 / Each

1/4 100042 014063 52 1/4" FLAT WASHER No Model Compatibility List $1.03 / Each

101727 014067 42 5/16" SPLIT WASHER No Model Compatibility List $0.12 / Each

5/16 100472 014073 54 5/16" WASHER Yes Model Compatibility List $1.25 / Each

#8 X 9MM SCREW 100689 144528 29 #8 X 9MM SCREW Yes Model Compatibility List $0.23 / Each

2
M4 X 16MM SCREW 100668 144985 47A M4 X 16MM SCREW No Model Compatibility List $0.22 / Each

2
106314 144995 30 M10 X 74MM CARRIAGE BOLT No Model Compatibility List $15.20 / Each

2
M10 LOCKNUT 100540 148710 65 M10 LOCKNUT No Model Compatibility List $1.57 / Each

2
REED SWITCH/WIRE 100752 170205 43 REED SWITCH/WIRE Yes Model Compatibility List $15.46 / Each

4,5,6
101530 172638 25 FLYWHEEL BEARING No Model Compatibility List $16.72 / Each

8
DRIVE BELT, 35 102093 189293 35 DRIVE BELT, 35 Yes Model Compatibility List $99.51 / Each

15
119698 193202 62 M8 X 125MM BOLT No Model Compatibility List $12.29 / Each

2
RESISTANCE MOTOR 100647 193223 19 RESISTANCE MOTOR Yes Model Compatibility List $106.74 / Each

28
118318 195067 23 M8 X 19MM SCREW No Model Compatibility List $1.03 / Each

2
101340 199493 46 M6 X 16MM BUTTON SCREW Yes Model Compatibility List $1.58 / Each

2
100559 206320 33 M10 X 65MM SCREW No Model Compatibility List $3.34 / Each

2
110667 228191 64 M6 X 30MM BUTTON SCREW No Model Compatibility List $1.91 / Each

2
115439 236408 45 RESISTANCE CABLE No Model Compatibility List $2.90 / Each

4,5,6,10
121227 238121 40 M10 X 14MM WASHER No Model Compatibility List $0.46 / Each

2
115654 242434 27 WIRE HARNESS No Model Compatibility List $49.46 / Each

4,5,6
116245 243132 # BATTERY HOLDER No Model Compatibility List $8.15 / Each
Out Of Stock 		1
173010 243651 56 FRAME BUSHING No Model Compatibility List $30.18 / Each

8,3
173011 243652 57 BUMPER No Model Compatibility List $3.08 / Each

1
173004 243653 20 SEAT FRAME BUSHING No Model Compatibility List $10.13 / Each

8,3,12,13,14
102003 243654 58 SEAT HANDLEBAR CAP No Model Compatibility List $2.16 / Each

9,12,13,14,11
SEAT HANDLE GRIP 119688 243656 50 SEAT HANDLE GRIP No Model Compatibility List $13.68 / Each

12,13,14,11,50
173325 243659 14 LEFT SEAT BRACKET No Model Compatibility List $95.03 / Each

2,3,4,5,6,12,13,14
173326 243660 15 RIGHT SEAT BRACKET No Model Compatibility List $95.03 / Each

2,3,4,5,6,12,13,14
173331 243661 59 SEAT HANDLE No Model Compatibility List $63.18 / Each

12,13,14,11
173323 243662 5 SEAT FRAME No Model Compatibility List $276.56 / Each

3,12,13,14
173324 243664 6 REAR STABILIZER No Model Compatibility List $129.11 / Each

1
173332 243666 60 BACKREST No Model Compatibility List $200.03 / Each

4,5,6,12,13,14
104564 243728 7 25MM ROUND CAP No Model Compatibility List $2.64 / Each

9,46

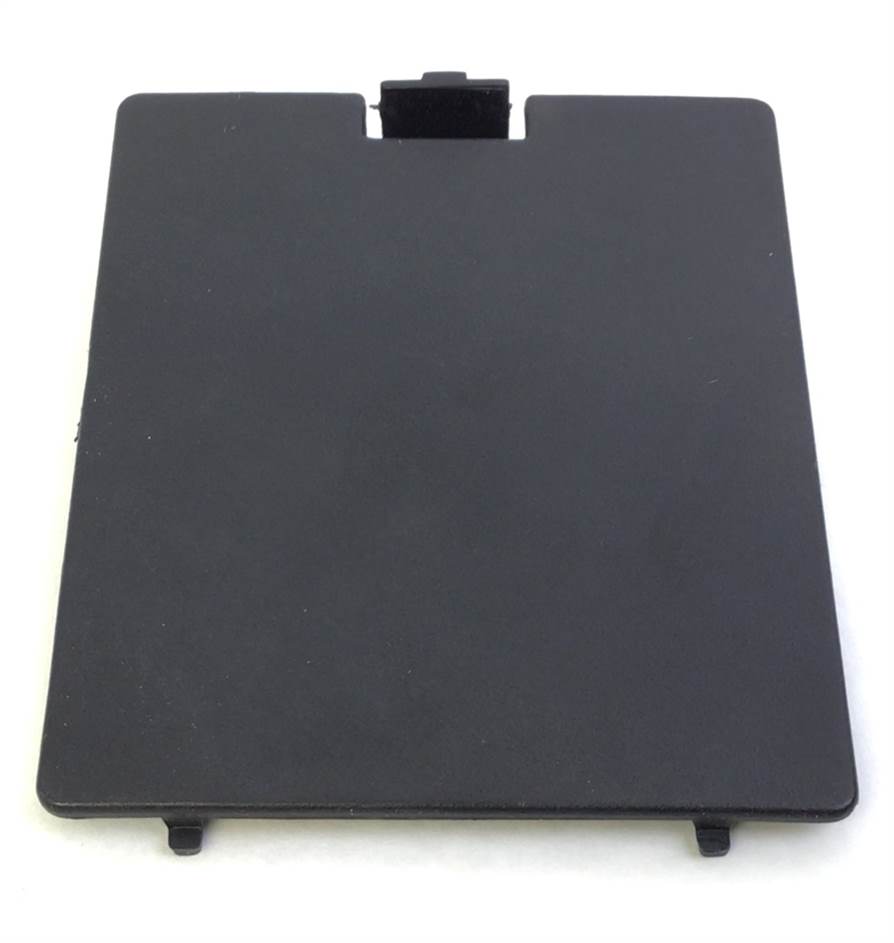

BATTERY COVER 173022 243981 # BATTERY COVER No Model Compatibility List $3.95 / Each

9
173216 243983 39 FLYWHEEL AXLE No Model Compatibility List $50.89 / Each

8
116274 243985 4 FRONT STABILIZER CAP No Model Compatibility List $36.47 / Each

9
116278 243986 8 LEVELING CAP No Model Compatibility List $22.69 / Each
Out Of Stock 		9
LEFT PEDAL/STRAP 116291 243998 24 LEFT PEDAL/STRAP Yes Model Compatibility List $107.16 / Each

8,9
RIGHT PEDAL/STRAP 116293 244000 26 RIGHT PEDAL/STRAP No Model Compatibility List $107.16 / Each

8,9
173222 244005 11 C-MAGNET No Model Compatibility List $140.99 / Each

8
173219 244009 49 BRACKET No Model Compatibility List $51.29 / Each

2,3,4,5,6
173205 244018 2 FRONT STABILIZER No Model Compatibility List $102.52 / Each

1
173218 244496 48 SPRING No Model Compatibility List $5.29 / Each

2
147445 244615 9 ADJUSTMENT KNOB No Model Compatibility List $19.26 / Each

1
115169 245941 53 M4 X 12MM FLANGE SCREW No Model Compatibility List $0.96 / Each

2
M6 X 34MM BUTTON BOLT 108958 246784 61 M6 X 34MM BUTTON BOLT Yes Model Compatibility List $0.25 / Each

2
116298 247748 31 EYEBOLT No Model Compatibility List $8.70 / Each

2
135172 247752 28 ADJUSTMENT BRACKET No Model Compatibility List $3.36 / Each

2,3,4,5,6
116262 249879 55 M6 CURVED WASHER No Model Compatibility List $1.20 / Each

2
M8 X 20MM SCREW 109477 249930 34 M8 X 20MM SCREW No Model Compatibility List $2.29 / Each

2,1
100823 258868 # DECAL, GENERAL WARNING No Model Compatibility List $0.24 / Each

7,3
147550 266613 21 PULLEY/CRANK No Model Compatibility List $259.42 / Each

8
173897 275063 # USER-S MANUAL No Model Compatibility List $0.00 / Each
Out Of Stock 		1
173896 275159 13 UPRIGHT No Model Compatibility List $122.76 / Each

3
116779 278162 51 M6 X 45MM BOLT No Model Compatibility List $0.52 / Each

2
CRANK BEARING SET 115067 295560 44 CRANK BEARING SET Yes Model Compatibility List $54.00 / Each

1
5MM ALLEN WRENCH 100604 045008 # 5MM ALLEN WRENCH Yes Model Compatibility List $3.85 / Each

6MM ALLEN WRENCH 100541 045021 # 6MM ALLEN WRENCH Yes Model Compatibility List $5.28 / Each

M6 Split Washer Lock 1019810 012142 79 4 M6 Split Washer Lock No Model Compatibility List $1.79 / Each

Speed Sensor 1004489 170205 0 1 Speed Sensor Yes Model Compatibility List $21.99 / Each

4,5,6
M10 Locknut 1005195 148710 53 1 M10 Locknut No Model Compatibility List $1.57 / Each

2
Resistance Gear Motor Brake Tensioner 1008084 193223 25 1 Resistance Gear Motor Brake Tensioner Yes Model Compatibility List $106.74 / Each

28
Crank Bearing Set 1008357 295560 0 1 Crank Bearing Set Yes Model Compatibility List $59.99 / Each

1
Magnet 1009452 113842 137 1 Magnet Yes Model Compatibility List $1.10 / Each

8,1
Resistance Motor 1010426 193223 25 1 Resistance Motor Yes Model Compatibility List $106.74 / Each

28
Rider Image Cycle Seat Screw #8 X 1/4 1011508 013585 0 1 Rider Image Cycle Seat Screw #8 X 1/4" Yes Model Compatibility List $11.99 / Each

Flange Screw M4 X 12mm 1011532 144528 60 1 Flange Screw M4 X 12mm Yes Model Compatibility List $0.23 / Each

2
M8 Locknut 1011772 012042 102B 1 M8 Locknut Yes Model Compatibility List $11.99 / Each

Clamp Screw 1011778 013162 0 1 Clamp Screw Yes Model Compatibility List $11.99 / Each

Reed Switch Cable Retainer Clamp 1011798 131090 114 1 Reed Switch Cable Retainer Clamp Yes Model Compatibility List $0.46 / Each

4,5,6,2,1,47
Magnetic Brake Generator W/ Motor 1005834 193223 Magnetic Brake Generator W/ Motor Yes Model Compatibility List $149.00 / Each

28
